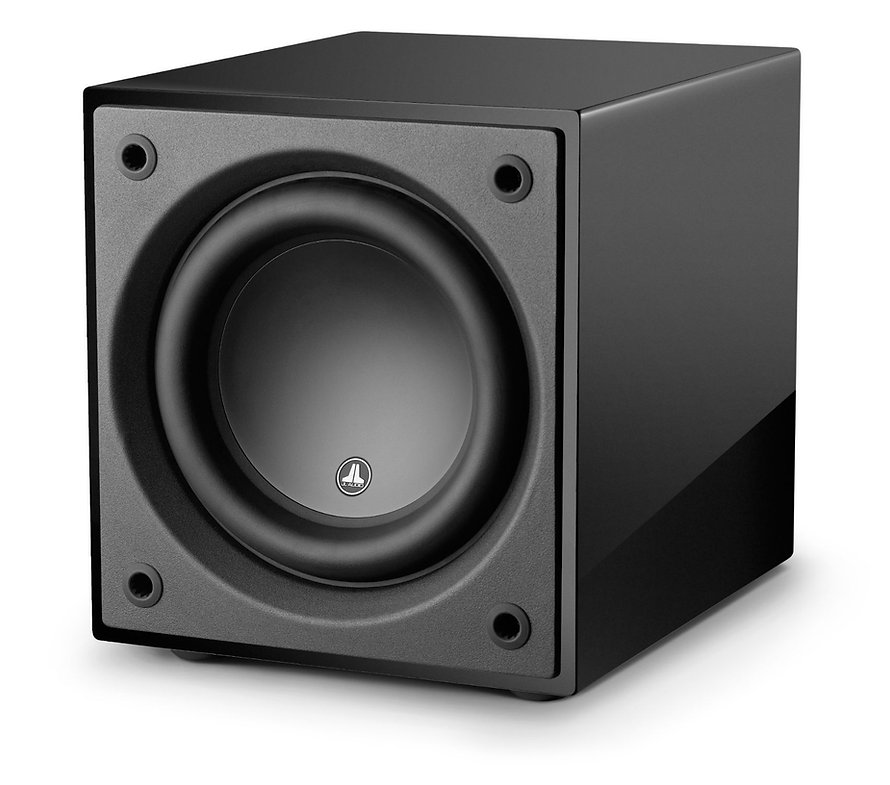

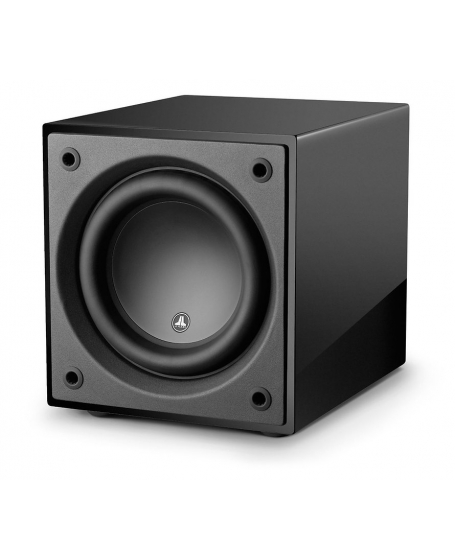

JL Audio Dominion D110

Powered Subwoofer with 10-inch Subwoofer, 750 watts

Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

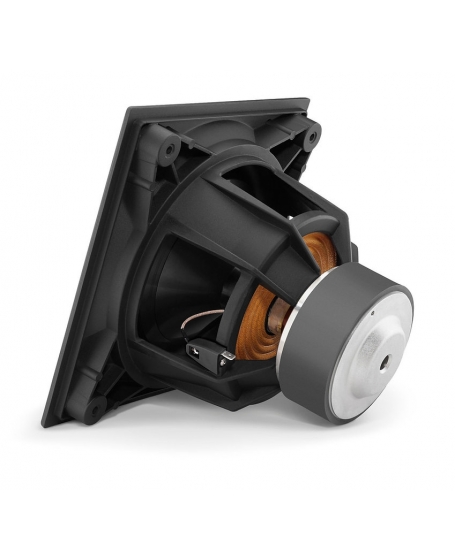

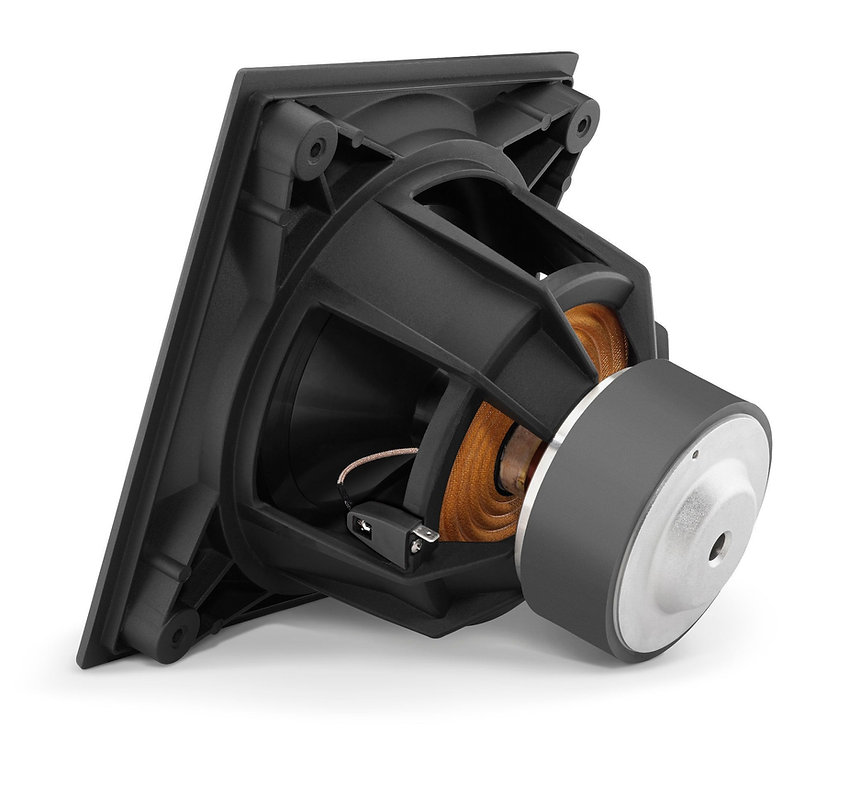

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.

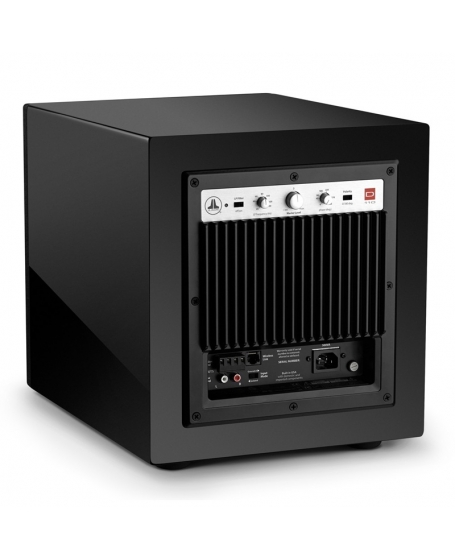

Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

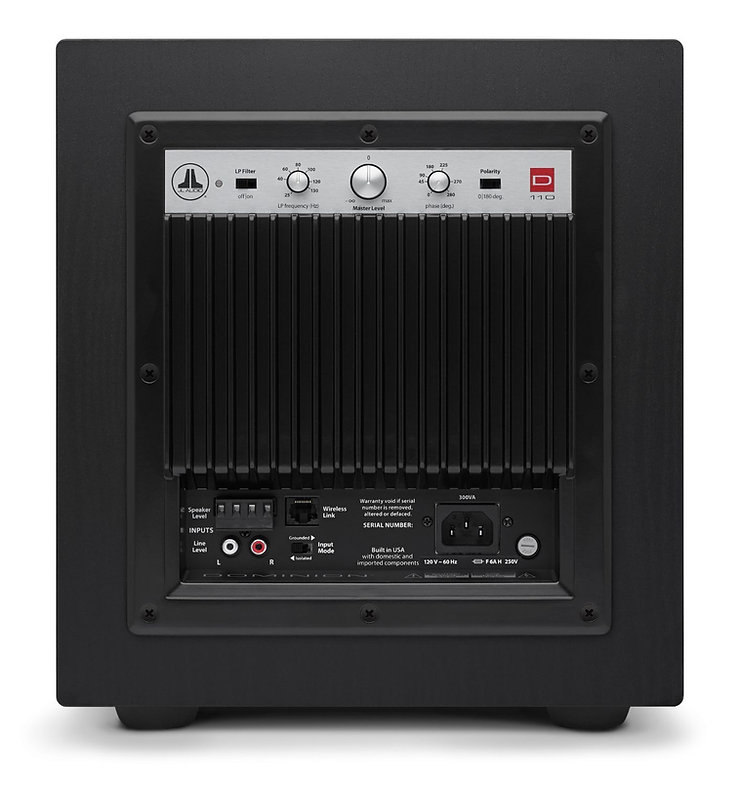

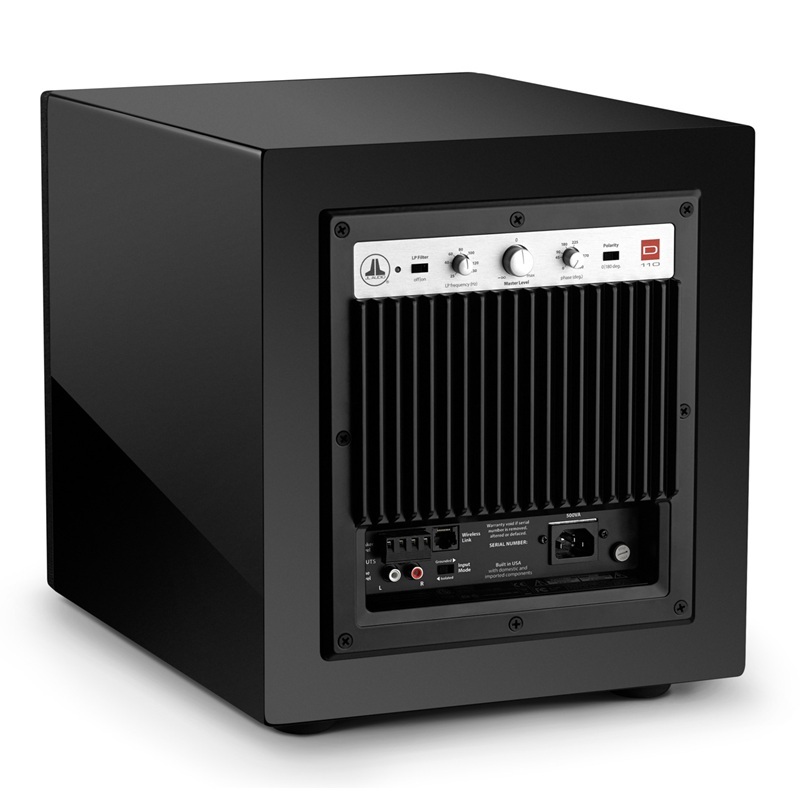

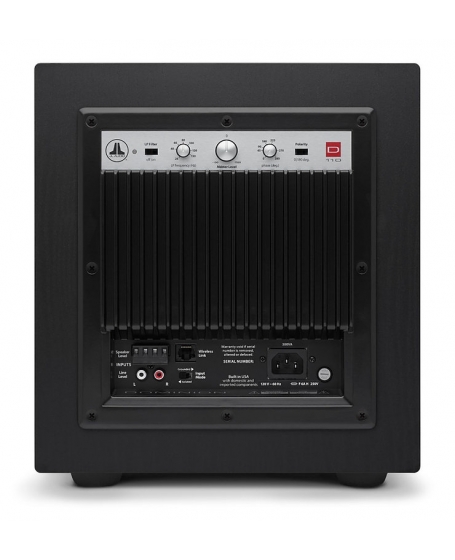

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.

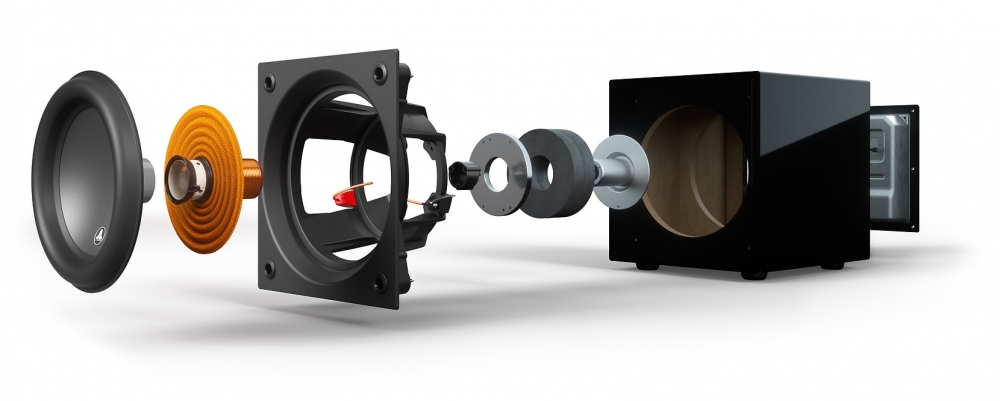

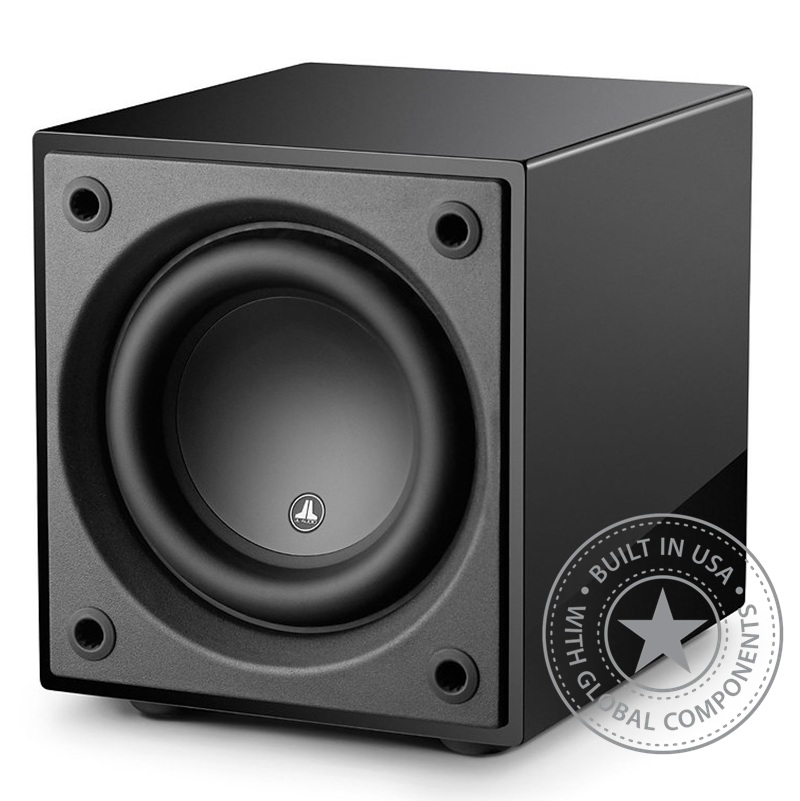

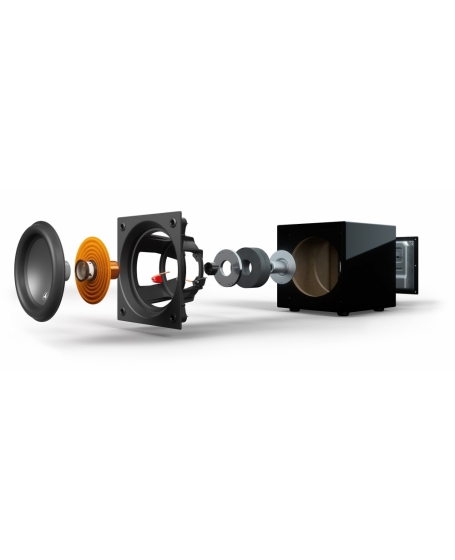

To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.

Specs    Dominion d110
Woofer    10-inch
Enclosure Type:    Sealed
Enclosure Finish:    Gloss Black
Frequency Response (Anechoic):    27 - 111 Hz (±1.5dB)
     -3 dB at 25 Hz / 118 Hz
     -10 dB at 21 Hz / 143 Hz
Effective Piston Area (Sd):    48.71 sq in / 0.0314 sq m
Effective Displacement:    127 cu in / 2.08 L
Amplifier Power:    750 W RMS short-term
Power Mode:    Automatic (Signal-Sensing)
Light Modes:    N/A
Unbalanced Inputs:    Stereo or Mono (two RCA jacks)
Balanced Inputs:    N/A
Speaker/High-Level Inputs:    Stereo or Mono (removeable plug)
Output to Slave:    N/A
Calibration Mode:    N/A
Width (W):    12 in / 305 mm
Height (H):    13.4 in / 340 mm
Depth (D):    15.86 in / 403 mm
Net Weight:    38.2 lb / 17.3 kg
Finish: Gloss Black

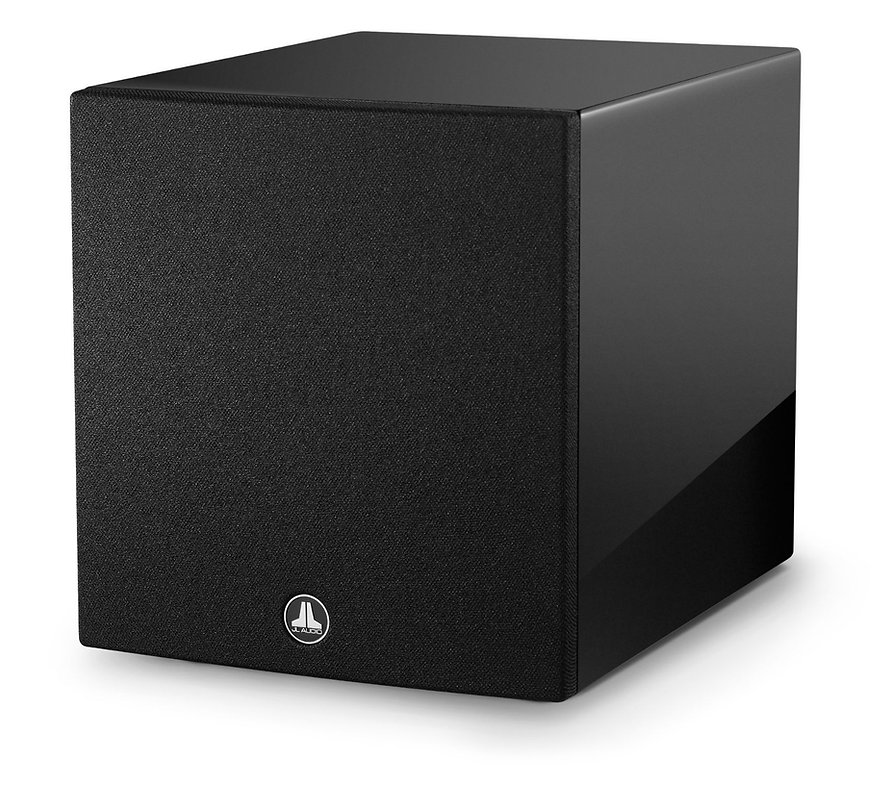

Grille Finish: Black Fabric
