Ready Stock

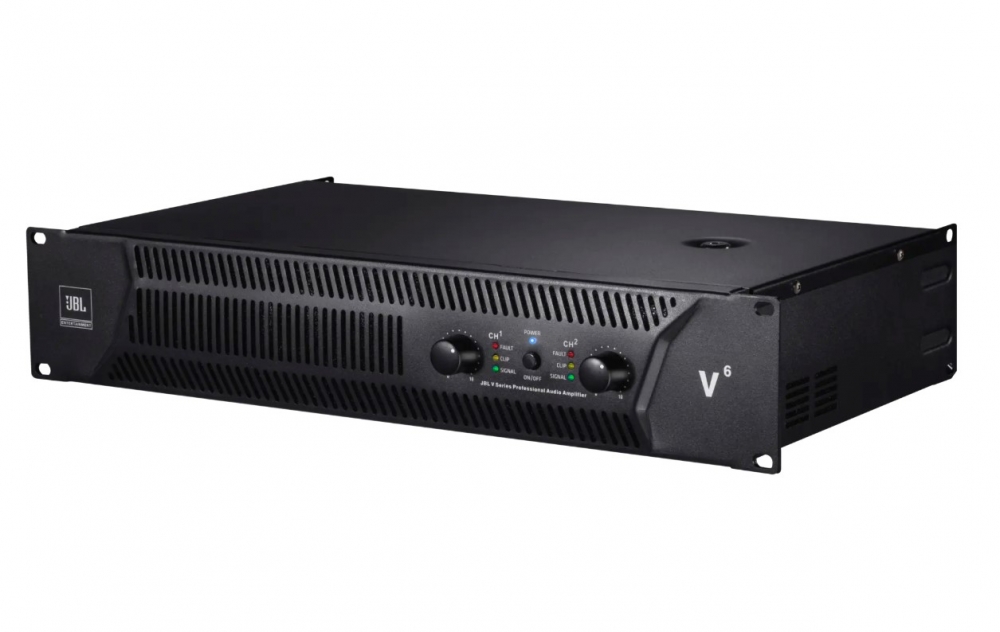

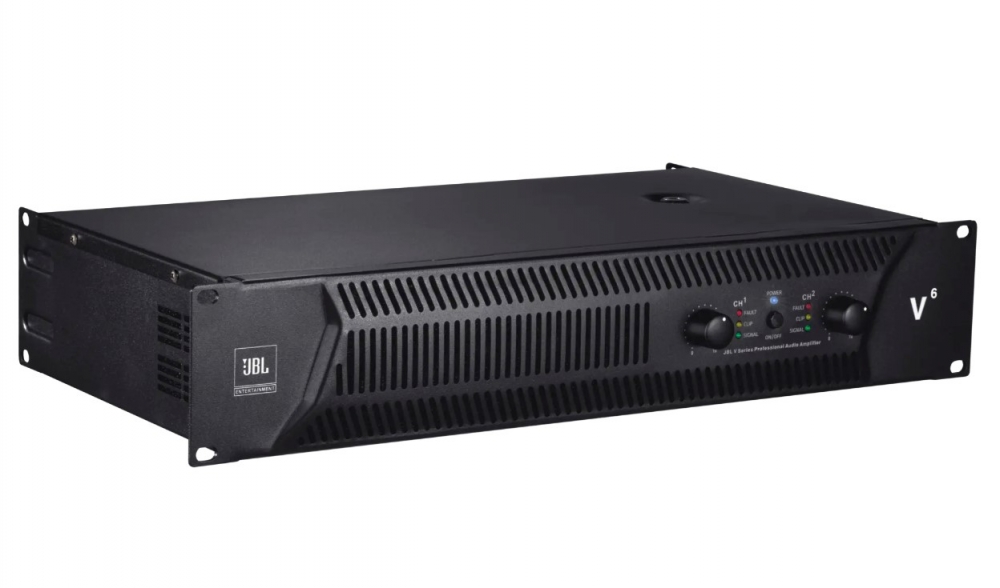

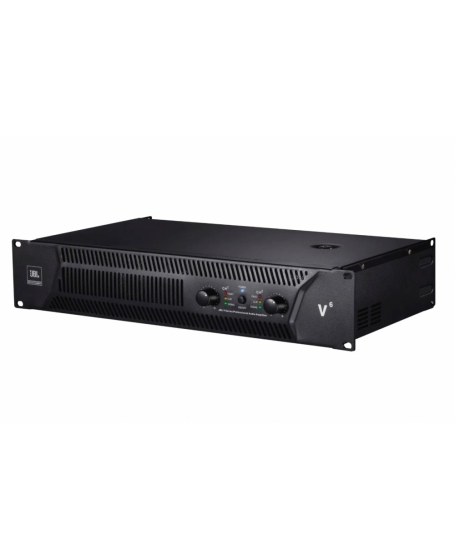

JBL V6 500W 2 Channel Professional Audio Amplifier
SKU: JBL V6
RM 3,399.00
JBL V6 500W 2 Channel Professional Audio Amplifier Brand New
JBL V6
500W 2 Channel Professional Audio Amplifier
BL V6 is a cost-effective two-channel professional audio amplifier, which is specially designed to meet low and medium power output demand and provides performance matching for JBL entertainment speakers.
JBL V6 features two-channel audio amplification and built-into 2U rack-mounted amplifier housing. With Harman customized amplification transistor, it redefines innovative circuit design according to JBL's acoustic requirements to deliver high-fidelity acoustic sound for JBL entertainment loudspeakers. Balanced XLR input and throughput are provided. Signals can be sent to another device through the balanced connector. Speakon® audio connection and output binding post design facilitate quick and easy KTV applications.
KEY FEATURES
- 2U rack-mounted amplifier housing fits into standard professional audio equipment cabinet

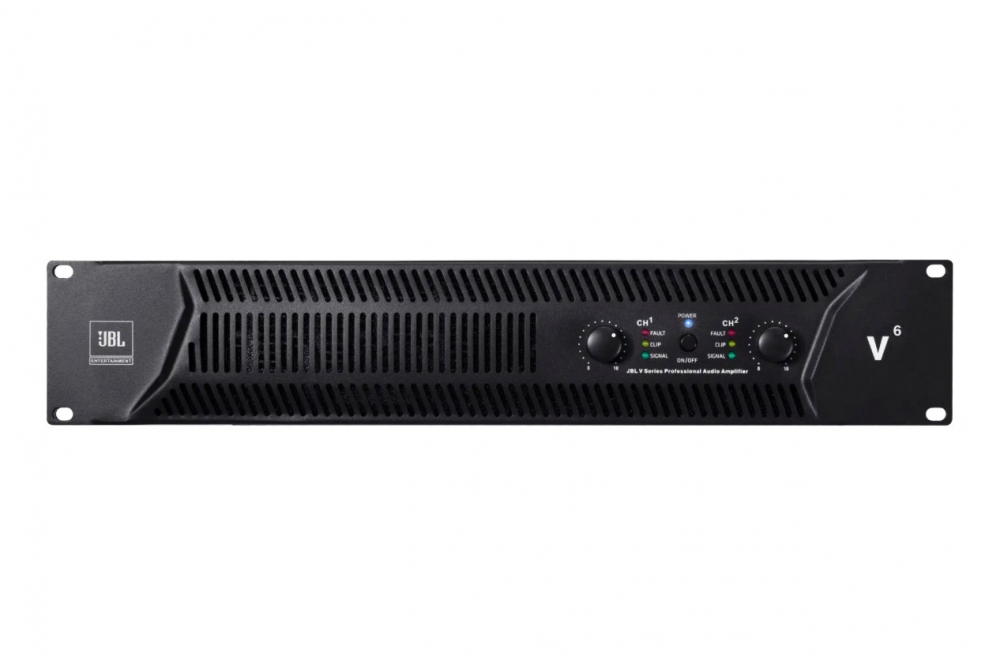

- Intuitive front panel at-a-glance, simplistic and functional design
- Support stereo, parallel and bridge-mono modes
- Provide three power output options: 2 x 640W @ 4ohms, 2 x 500W @ 8ohms, and 1280W @ 8ohms (bridge mode)
- Equipped with Harman advanced amplification transistor and specially tuned for JBL entertainment loudspeakers ensuring delivering high-fidelity acoustic sound
- Amplifier is specially tuned with JBL Entertainment speaker, enabling easier and faster setup and installation
- Speakon® audio connection and output binding post design facilitate quick and easy application
- Equipped with a variable-speed fan and detachable dust filter for easy maintenance
| Minimum Guaranteed Power | |
| 4 ohms stereo (per channel) | 640 W |
| 8 ohms stereo (per channel) | 500 W |
| 8 ohms bridge mono | 1280 W |
| Frequency Response (1W) | 20 Hz – 20 kHz, +0/-1 dB |
| Frequency Response (1W) notes | Measured in a full space (4π) condition. |
| 总谐波失真 (THD) | < 0.5%, 20 Hz – 20 kHz |
| Transient Intermodulation Distortion (IMD) | < 0.6 % (60 Hz and 7 kHz at 4:1, from full rated output to -30 dB) |
| Conversation Rate | > 10 V/μs |
| 电压增益 | 36 dB |
| Damping Coefficient | > 200 (8 ohms, 10 Hz to 400 Hz) |
| Signal-to-Noise Ratio | > 100 dB |
| Signal-to-Noise Ratio notes | Referenced to rated output power, 20 Hz to 20 kHz, A-weighted |
| 串音 | -75 dB @ 1 kHz, -59 dB @20 kHz |
| Crosstalk notes | Referenced to rated output power |
| Input Sensitivity (Rated power @ 8 ohms) | 0.775 V |
| Input Sensitivity notes | According to IEC standard, tested for 2 hours under pink noises with a crest factor of 6 dB. |
| Input Impedance (Rated) | 20k ohms (balanced inputs) 10k ohms (non-balanced inputs) |
| Signal Input/ Output Connector | One balanced XLR input and one XLR LINK output per channel |

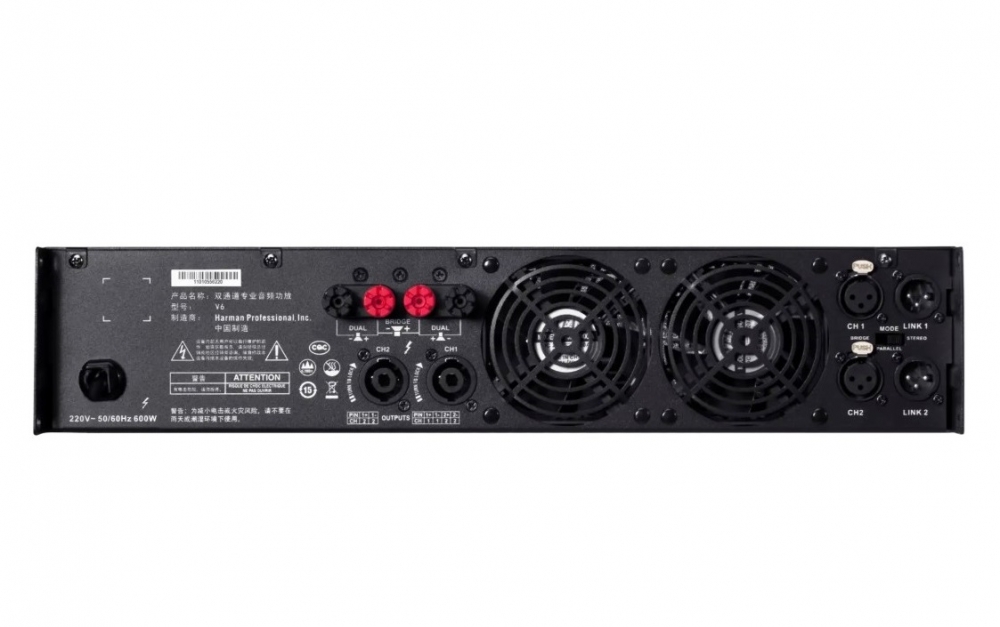

| Amplifier Output Connector | One Speakon signal output interface and one set of terminal output interface per channel |
| Front Panel Control | Power switch and channel gain knob |
| Rear Panel Control | Output mode switch: Stereo, Parallel, Bridge-mono |
| Power Indicator | Blue |
| Signal Indicator | Green |
| Clipping Indicator | Yellow |
| Fault Indicator | Red |
| Power Cord Specifications | Plug: 10 A, 250 V Cable: CCC 3 x 1.0 mm2 x 1.5 m |
| Amplifier Housing | Built-in 2U standard rack |
| 保护 | Protection against short circuit, no load, power on/off noise, radio interference and abnormal temperature |
| Ventilation | Air convection mechanism from front to back |
| 散热 | DC motor fan for heat dissipation and cooling |
| Dimension (W x H x D) | 482 mm x 88 mm x 238.5 mm |
| 净重量 | 11 Kg |
