JBL BEYOND1 + JBL MK08 Karaoke Package

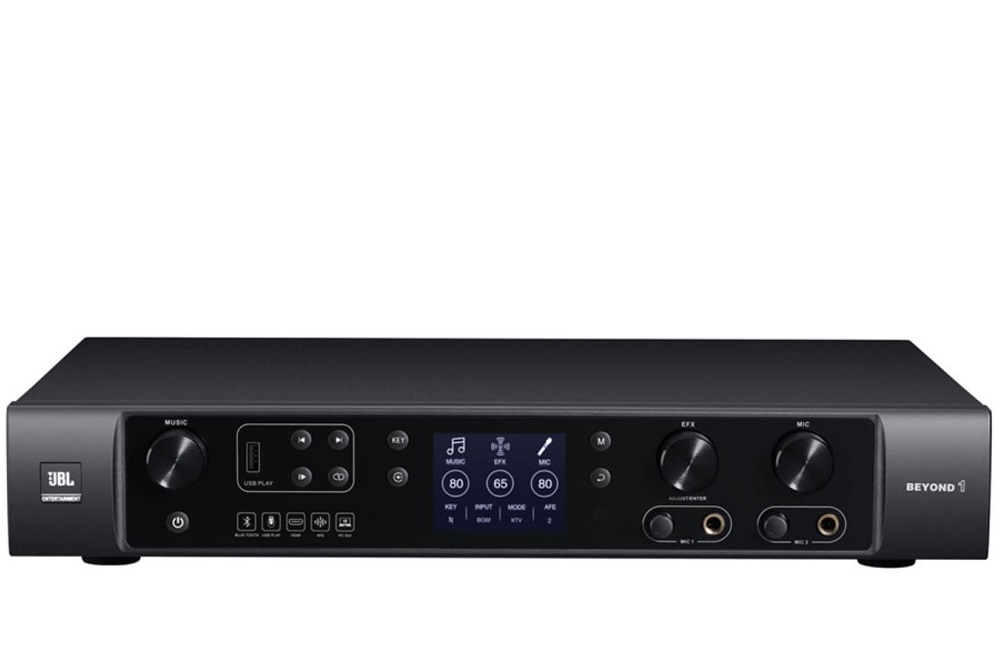

BEYOND1

180-watt, Two-channel Digital Integrated Amplifier

The JBL BEYOND1 is designed for small-club and smart-home karaoke applications that demand signature JBL sound quality and comprehensive processing features in an affordable, easy-to-use package.

BEYOND series amplifiers deliver unforgettable karaoke experiences, thanks to signature JBL Entertainment effects including pitch shift, echo, reverb and EQ, with feedback protection and customizable presets. The series continues the tradition of excellence that’s made JBL the leading brand in karaoke systems, featuring top-grade components and materials and robust, efficient 180-watt, two-channel Class D amplification.

Systems look as great as they sound, with a sleek, stylish design and an illuminated JBL Entertainment logo that lets customers and venue owners showcase superior JBL sound quality.

The BEYOND1 provides exceptional karaoke sound at an affordable price point and is built to JBL’s uncompromising performance standards. It seamlessly matches a range of karaoke systems.

Features

• High-efficiency 180-watt, two channels Class D amplifier
• Signature JBL karaoke sound digital processing enhances the singing experience in karaoke applications, with pitch change, echo and reverb
• 8 user-definable presets
• 15-band parametric EQ on microphone and music inputs
• Three-level Auto Shift Frequency Feedback Suppression provides clean, clear vocals
• Two RCA inputs and one optical input
• Two HDMI inputs and one HDMI output (ARC)
• Bluetooth and USB inputs offer flexible music connectivity

MK08

8-Inch 2-Way Full-Range Loudspeaker System

MK08 is a 2-way full-range loudspeaker designed by JBL for KTV boxes. It uses an 8” woofer and two 3” tweeters to realize exceptional acoustic performance – high power, low distortion, and remarkable electro-acoustic conversion efficiency.

The 8” woofer is specially designed for high power handling and features a non-pressed long fiber pulp cone with foam surround, which provides enough stiffness and reliability while processing the electromagnetic force. A demodulating aluminum ring is fitted to guarantee minimum distortion and power compression. For the high frequencies, two 3” paper cones are installed, in consideration of their light weight and, most importantly, their ability to reproduce high notes bright, smooth and with excellent dispersion.

To optimize power distribution between low and high frequency transducers and for better frequency response, a precision-engineered crossover is utilized. The cabinet to support the tweeters is built in a V-shape so as to further improve the coverage and sensitivity, two factors essential to a karaoke speaker.

MK08 presents itself as a mix of edgy design and high tech through its light-coffee palette, wave-like front grille, and luminous JBL ENTERTAINMENT logo. The light-coffee colored enclosure is constructed of premium quality MDF and finished in durable vinyl wraps. Two high-strength M10 suspension points are provided for bracket mounting. 16-gauge steel is used to build the corrugated grille and to protect the components inside. JBL’s PSL (Passive Sound Lighting) Technology is what’s behind the glowing JBL ENTERTAINMENT logo and making JBL sound visible.

8英寸双向全频扬声器系统
MK08是由JBL为KTV包装盒设计的双向全频扬声器。它采用8英寸低音扬声器和2个3英寸高音扬声器，可实现卓越的声学性能 - 高功率，低失真和卓越的电声转换效率。

这款8英寸低音单元专为高功率操作而设计，采用无压长纤维纸浆锥体和泡沫环绕，在处理电磁力的同时提供足够的刚度和可靠性。安装了解调铝环，以确保最小的失真和功率压缩。对于高频，安装了两个3“纸锥，考虑到它们的重量轻，最重要的是，它们能够再现高音，明亮，平滑且具有出色的色散。

为了优化低频和高频传感器之间的功率分配以及更好的频率响应，采用了精密设计的分频器。支撑高音扬声器的音箱采用V形设计，以进一步提高覆盖范围和灵敏度，这是卡拉OK扬声器必不可少的两个因素。

MK08采用浅咖啡色调，波浪形前格栅和明亮的JBL ENTERTAINMENT标志，将前卫设计与高科技融为一体。浅咖啡色外壳由优质MDF制成，并采用耐用的乙烯基包裹材料制成。两个高强度M10悬挂点用于支架安装。 16号钢用于制造瓦楞格栅并保护内部组件。 JBL的PSL（无源声音照明）技术是发光的JBL ENTERTAINMENT标志的背后，使JBL声音可见。

FEATURES

• Specially designed 8” woofer fitted with demodulating aluminum ring for high power handling, low distortion and minimum power compression
• High-efficiency 3” paper cone tweeters provides excellent high-frequency response
• V-shape cabinet to support the tweeters further improves the coverage and sensitivity
• Enclosure constructed of premium quality MDF and finished in durable vinyl wrap
• Precision engineered crossover for optimal power distribution and frequency response
• Wave-like front grille and light-coffee palette create a stylish appearance
• PSL (Passive Sound Lighting) Technology illuminates JBL ENTERTAINMENT logo and showcases JBL’s devotion to innovation.

• 专门设计的8英寸低音单元，配有解调铝环，可实现高功率处理，低失真和最小功率压缩
• 高效3英寸纸锥高频扬声器提供出色的高频响应
• 支撑高频扬声器的V形机柜进一步提高了覆盖范围和灵敏度
• 外壳采用优质MDF制成，并采用耐用的乙烯基包装
• 精密设计的分频器，可实现最佳的功率分配和频率响应
• 波浪状的前格栅和浅咖啡色调营造出时尚的外观
•  PSL（无源声音照明）技术照亮了JBL ENTERTAINMENT标志，展示了JBL对创新的热爱。

APPLICATIONS

• Sound reinforcement for karaoke boxes
• As satellite speaker for use with subwoofers

JBL BEYOND1 Karaoke Amplifier
Rated Power    2CH 180W at 8Ω
Amp Type    Class-D
Display    2.8-inch LCD
Frequency Response    20Hz - 20kHz, +1/-1dB (RCA Input)
50Hz - 14kHz, +1.5/-3dB (1/4" TRS Input)
Total Harmonic Distortion (THD)    <= 1%, 20Hz - 20kHz
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)    >=85dB (RCA Input)
>=75dB (1/4" TRS Input)
Input Impedance    3.2kΩ
Music Input    VOD (RCA pair) x1
BGM (RCA pair) x1
HDMI x2
Optical x1
Bluetooth x1
USB Playback x1
Microphone Input    Front (TRS) x2
Rear (TRS) x1
Output Connectors    ARC (HDMI) x 1
AUX (RCA pair) x 1
Recording output (RCA) x1
Subwoofer output (RCA) x1
Speaker output (Binding Post) x2
Control Connectors    PC (USB Type B) x1
RS232 (3.5mm socket) x1
Dimensions (w x h x d)    16.85" x 2.99" x 12.4" (428mm x 76mm x 315mm)
Net Weight    11.90lb (5.4kg)
Shipping Weight    15.43lb (7.0kg)
Power Requirements    100V - 240V ~50/60Hz

JBL MK08 Karaoke Speaker
System Type    8″, 2-way, bass-reflex
Frequency Range (-10 dB)    53 Hz - 17 kHz
Frequency Response (±3 dB)    70 Hz - 14 kHz
Sensitivity (1w@1m)    88 dB
Nominal Impedance    8 Ohms
Maximum SPL    110 dB (116 dB peak)
Power Rating
(Continuous/Program/Peak)    150 W/300 W/600 W
Coverage Pattern    110° × 100° (H × V)
Dimensions (H × W × D)    245 mm × 435 mm × 285 mm
9.6 inch × 17.1 inch × 11.2 inch
Net Weight    8.5 Kg (18.7 lbs)
LF Driver    1 × 8″ (203.2 mm) woofer
HF Driver    2 × 3″ (76.2 mm) tweeter
Input Connectors    Binding Post
Enclosure Construction    Vinyl covered 12mm MDF
