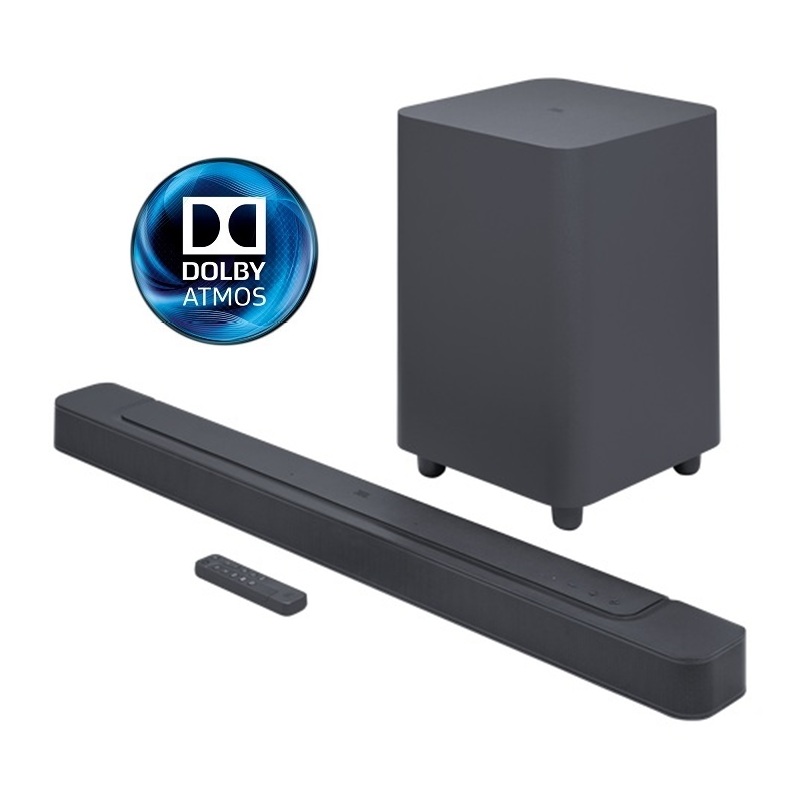

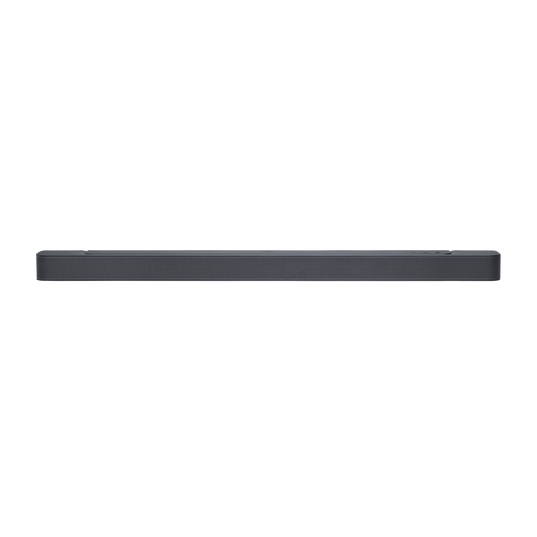

JBL BAR 500

5.1-channel soundbar with MultiBeam™ and Dolby Atmos®

Features

Dolby Atmos® and MultiBeam™ Surround Sound

Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in the room, without the need for extra surround speakers.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

590W output power

With 590 watts of total system output power, the JBL Bar 500 transforms your movies, music and games into immersive sound experiences.

General Specifications
Power supply 100 - 240V AC, ~ 50/60Hz
Networked standby power < 2.0 W
Operating temperature 0°C - 45 °C

Audio Specifications
Total speaker power output (Max @THD 1%) 590W
Soundbar output power (Max @THD 1%) 290W
Subwoofer output power (Max. @THD 1%) 300 W

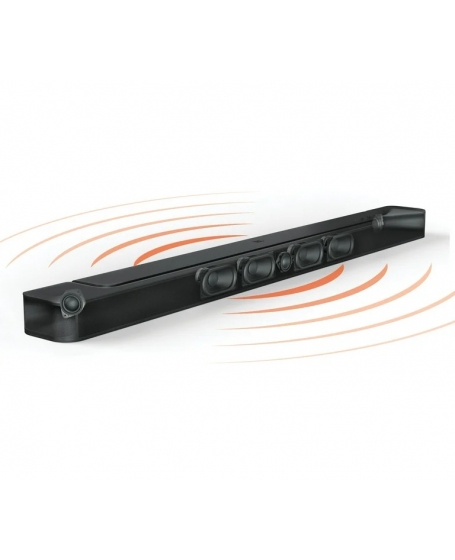

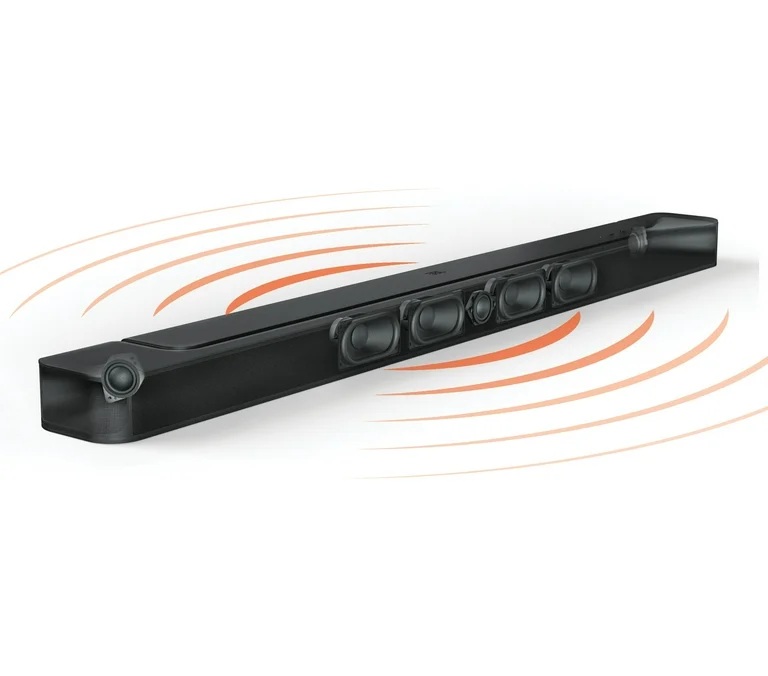

Soundbar transducer 4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters

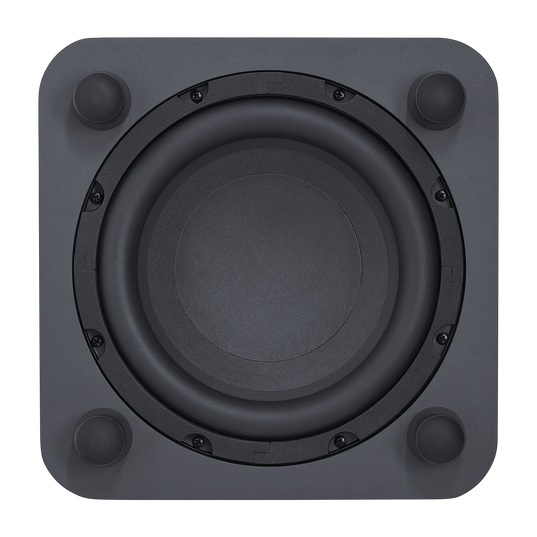

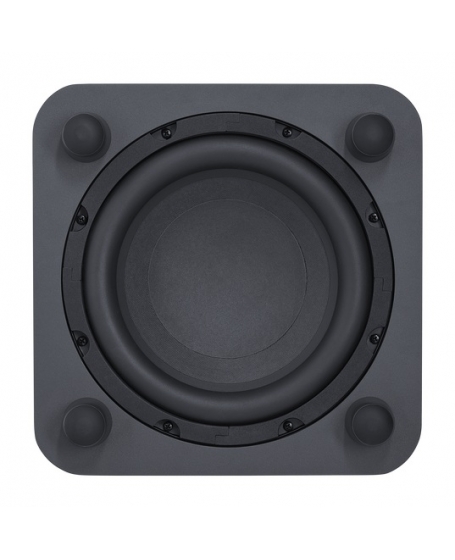

Subwoofer transducer 10” (260mm)
Frequency response 35Hz - 20kHz (-6dB)

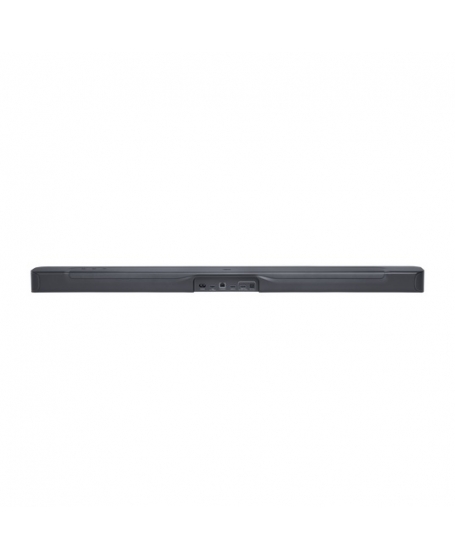

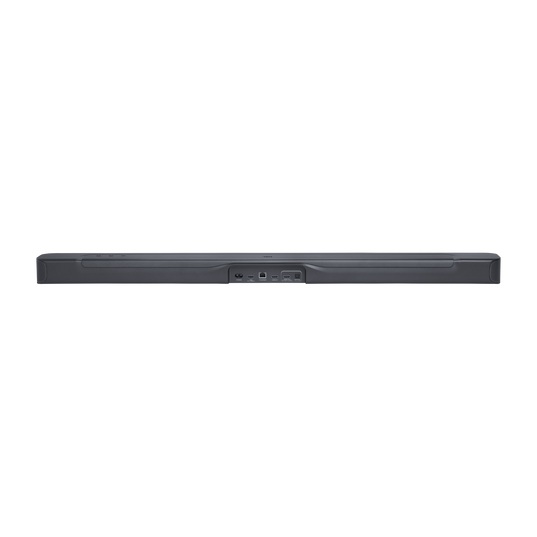

Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

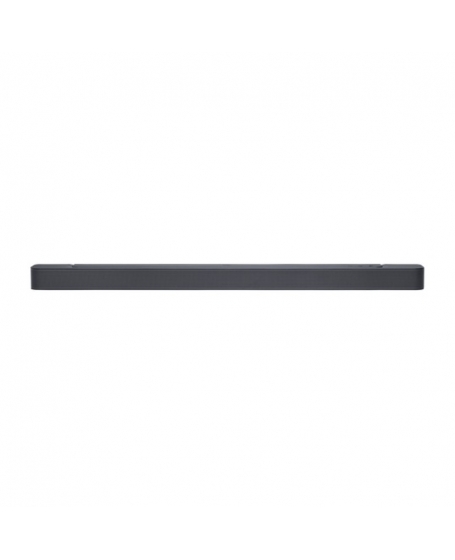

Soundbar dimensions (W x H x D) 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’

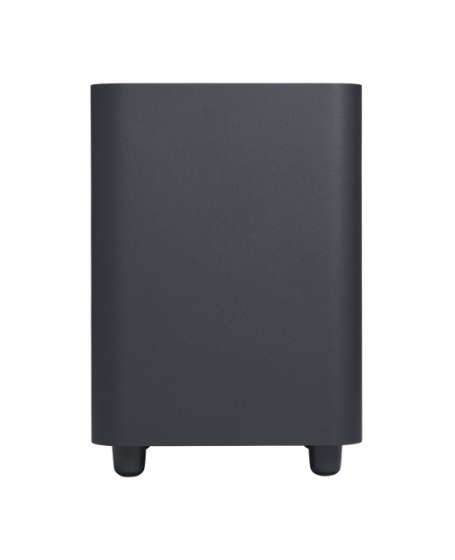

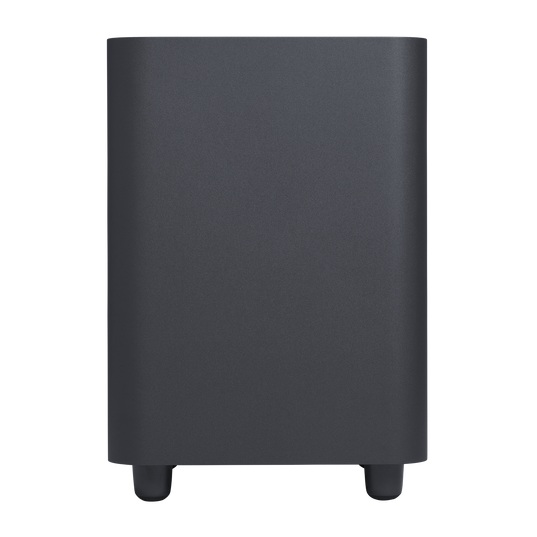

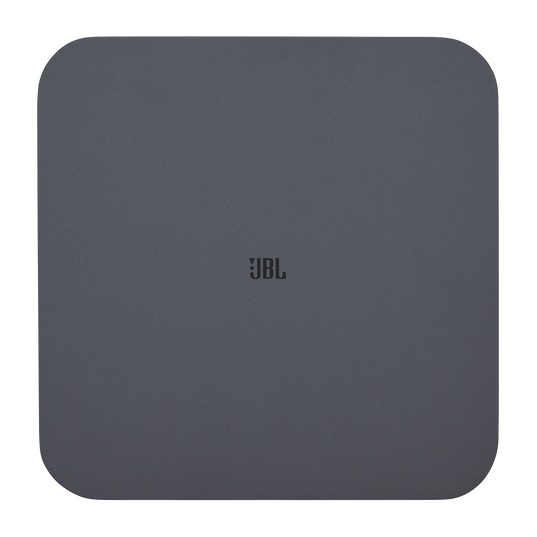

Subwoofer dimensions (W x H x D) 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight 2.8kg/ 6.2 lbs
Subwoofer weight 10 kg / 22 lbs
Packaging dimensions (W x H x D) 1105 x 370 x 475 mm/ 43.5" x 14.6" x 18.7"
Packaging Weight 16.2 kg / 35.6 lbs
