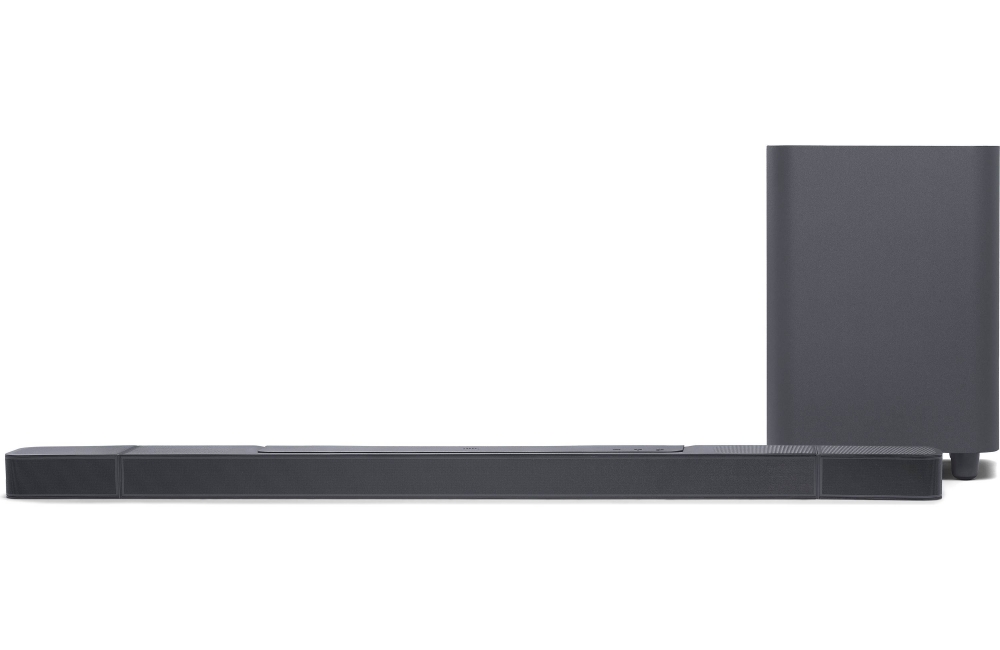

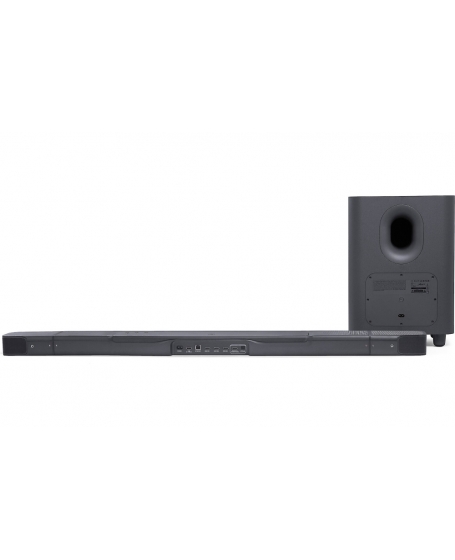

BAR 1000

7.1.4-channel soundbar with detachable surround speakers, MultiBeam™, Dolby Atmos®, and DTS:X®

Features

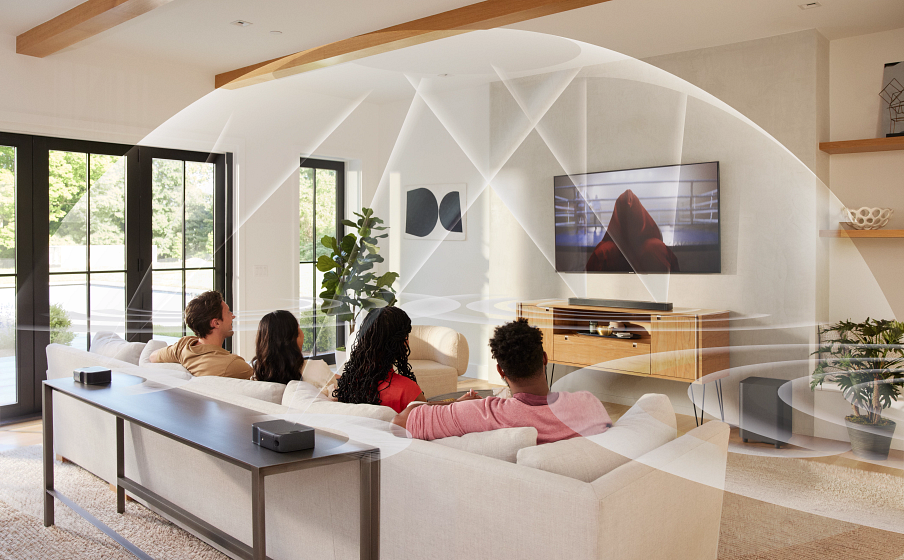

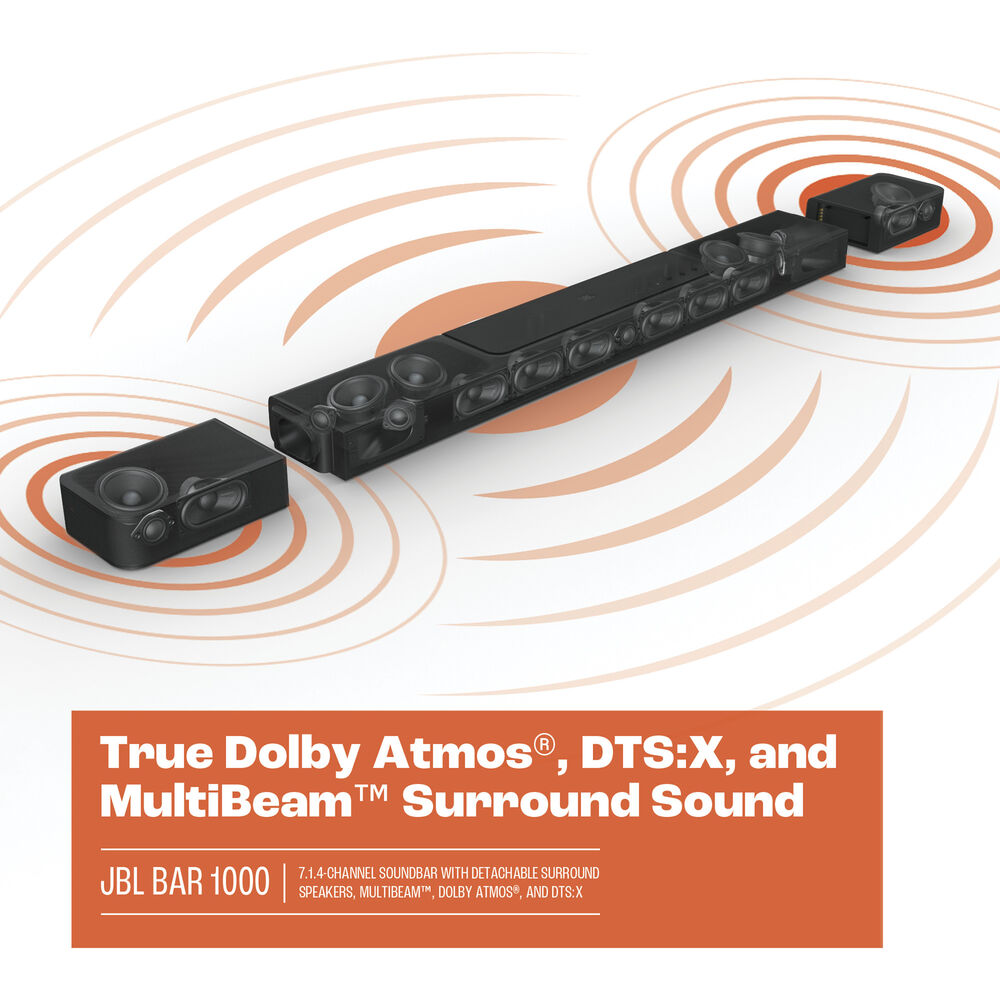

True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

Immerse yourself in theater-quality 3D sound. With two up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1000 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

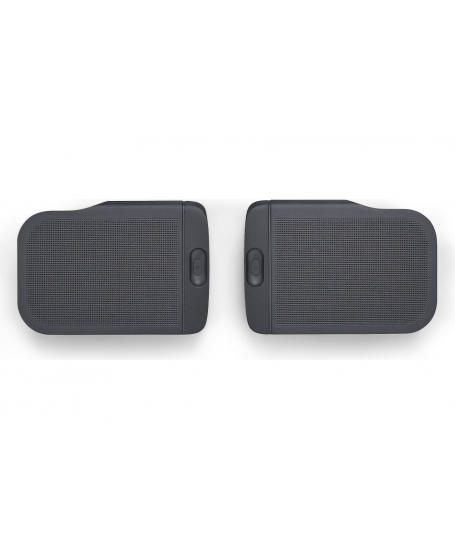

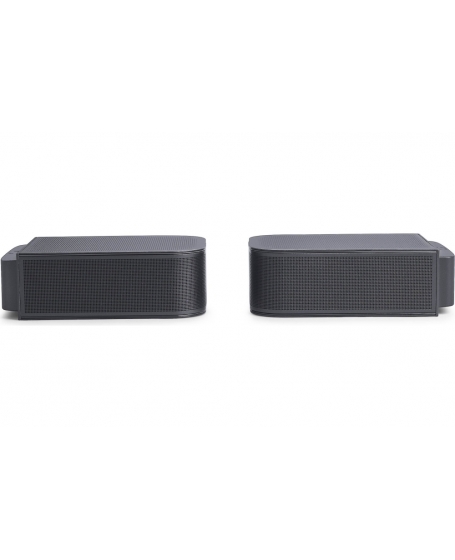

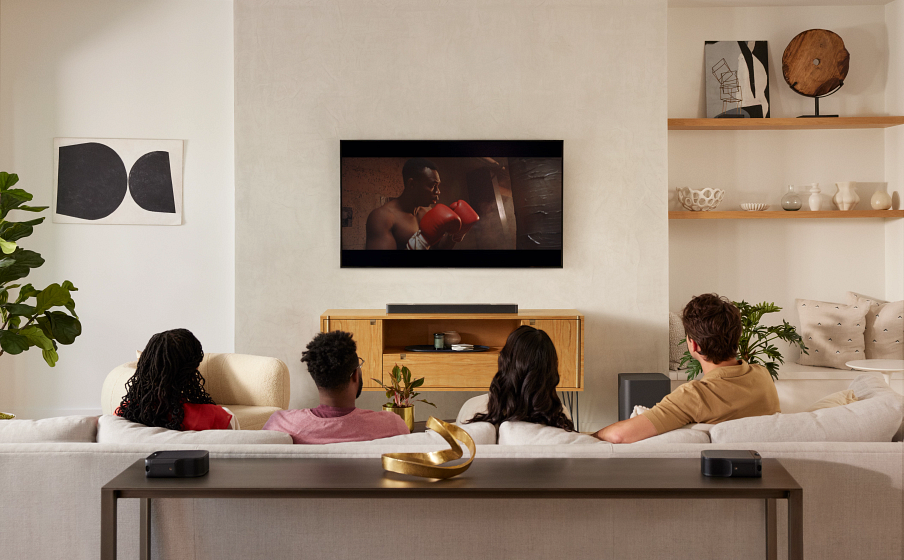

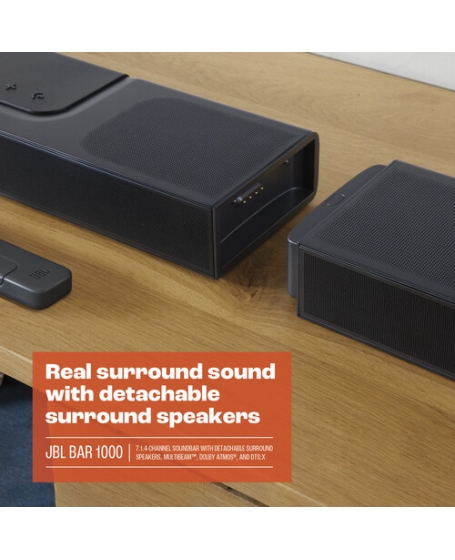

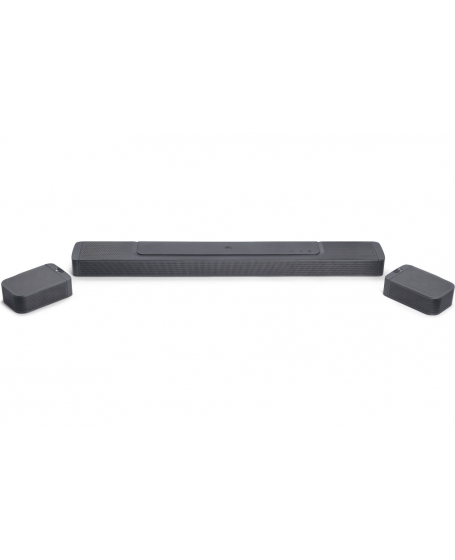

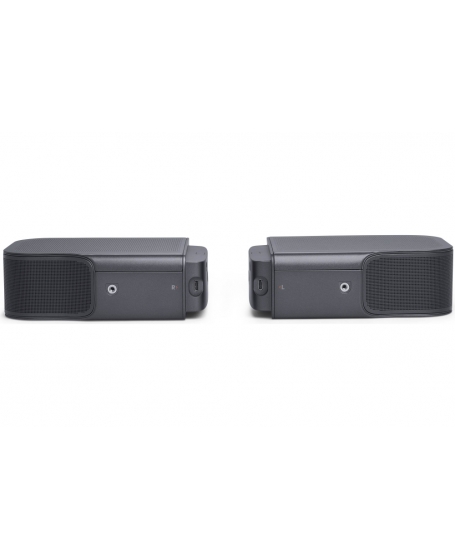

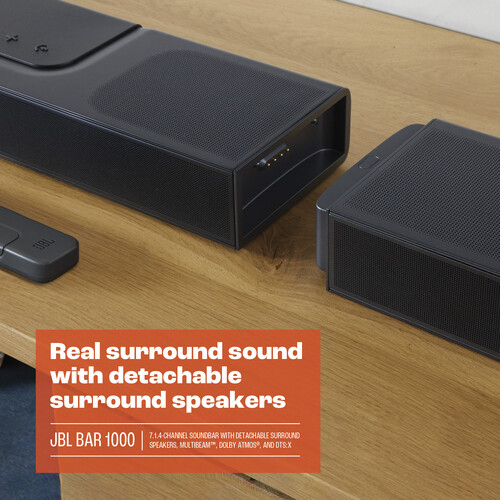

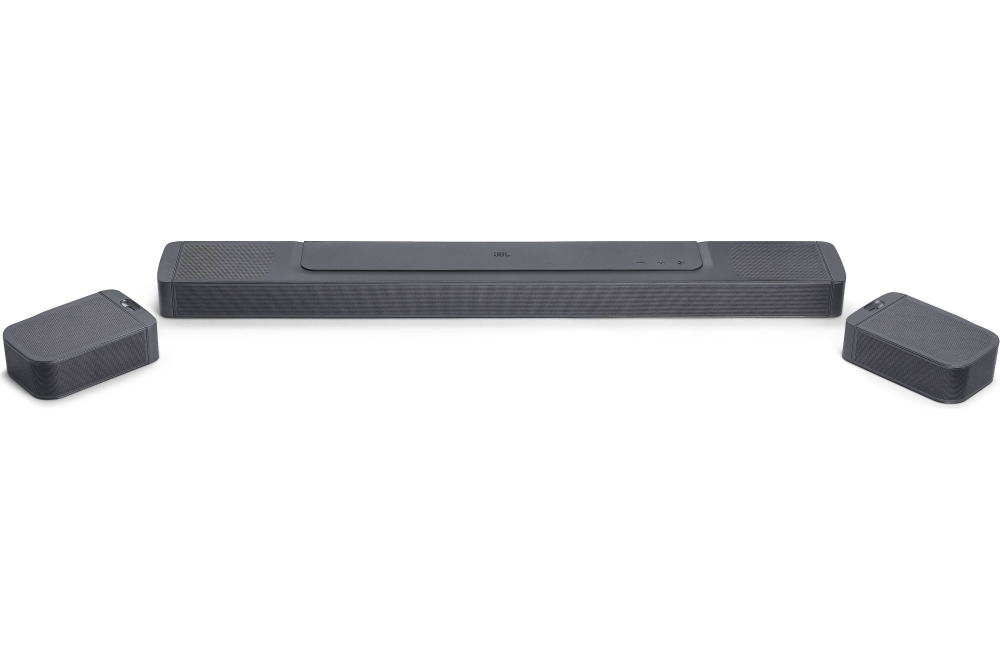

Real surround sound with detachable surround speakers

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

JBL Bar 1000 Specs

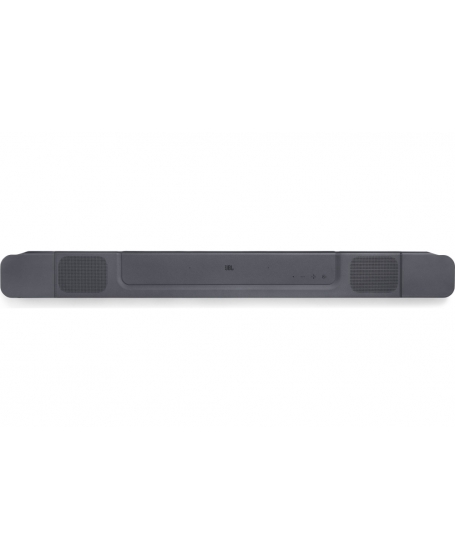

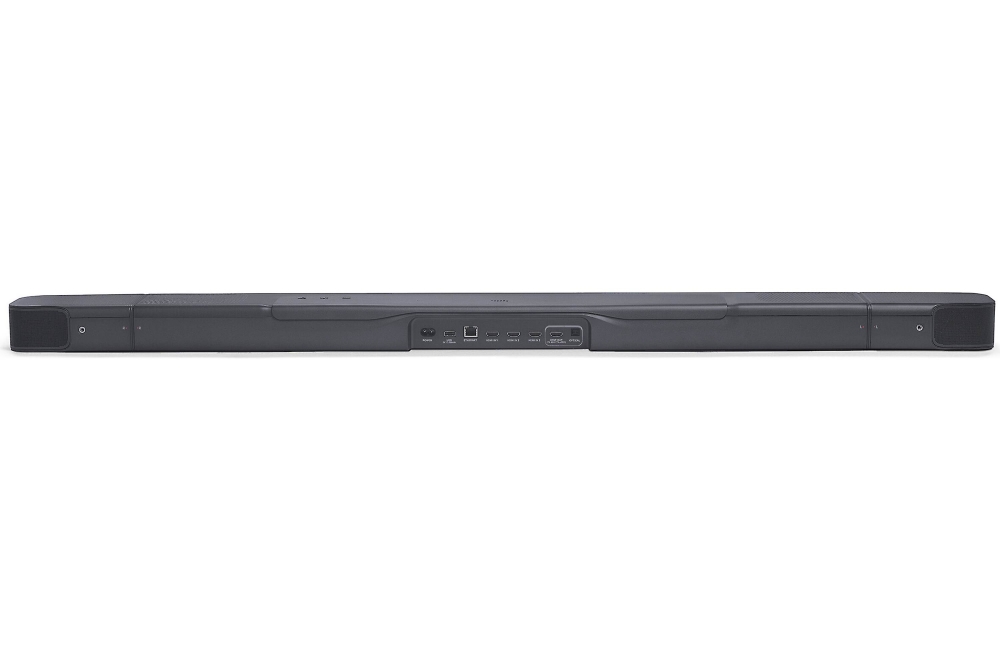

Soundbar
Channel Configuration    7.1.4-Channel
Low-Frequency Drivers    5 x 1.8 x 3.5" / 46 x 90 mm Oval Cone
High-Frequency Drivers    3 x 0.75" / 1.91 cm
Full-Range Drivers    2 x 2.75" / 6.99 cm Up-Firing
Amplifier Output    440 W RMS
Frequency Response    33 Hz to 20 kHz
Total Harmonic Distortion (THD)    1%

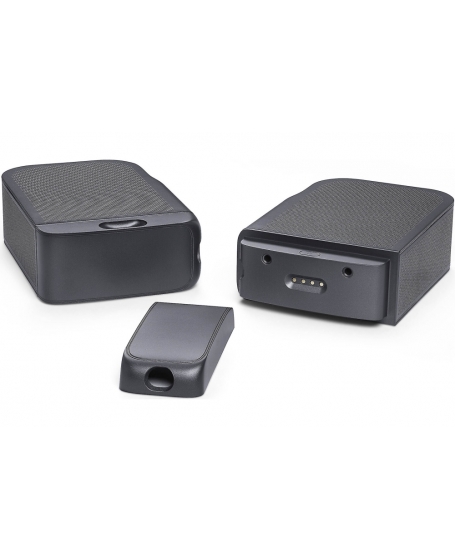

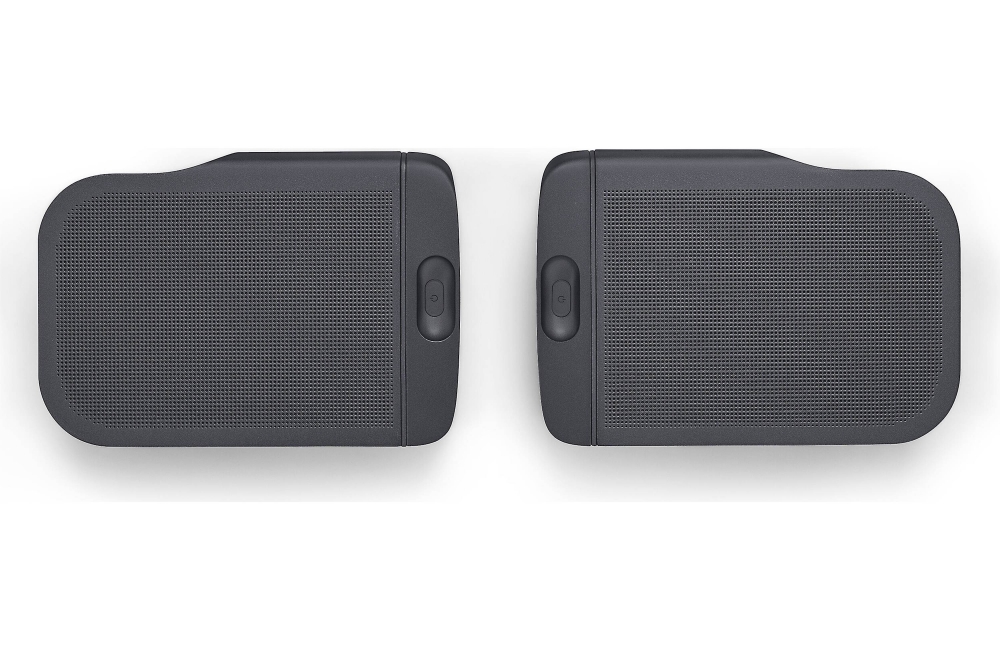

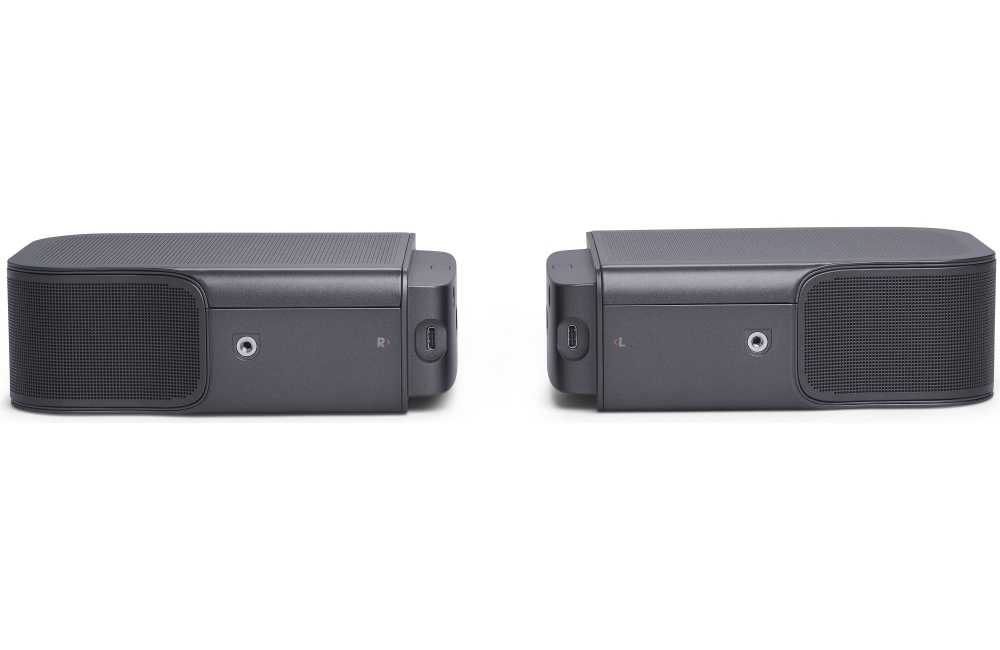

Satellite Speakers
Speaker Positioning    Rear
Speaker Configuration    2-Way
High-Frequency Drivers    1 x 0.75" / 1.91 cm
Full-Range Drivers    1 x 2.75" / 6.99 cm Up-Firing per Speaker
Power Rating    70 W RMS per Speaker
Total Harmonic Distortion (THD)    1%
Placement & Mounting Options    Wall-Mount (with Included Hardware)

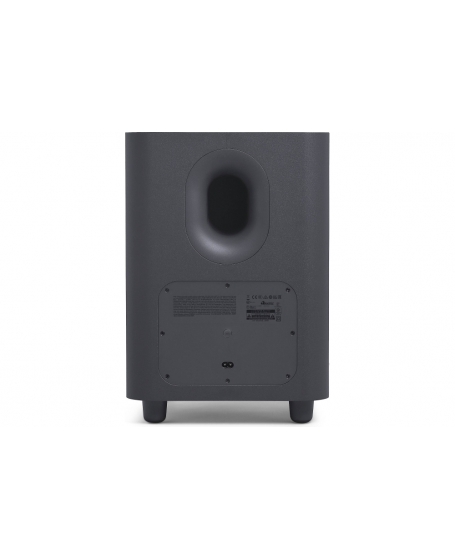

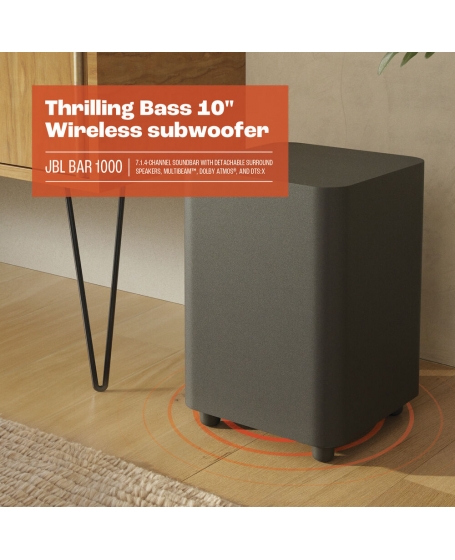

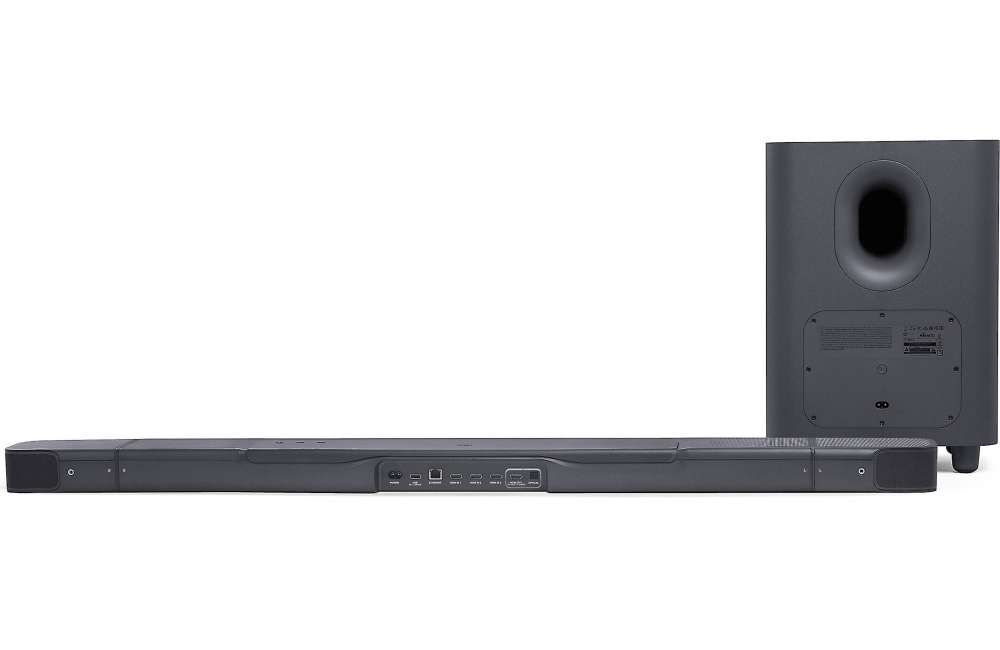

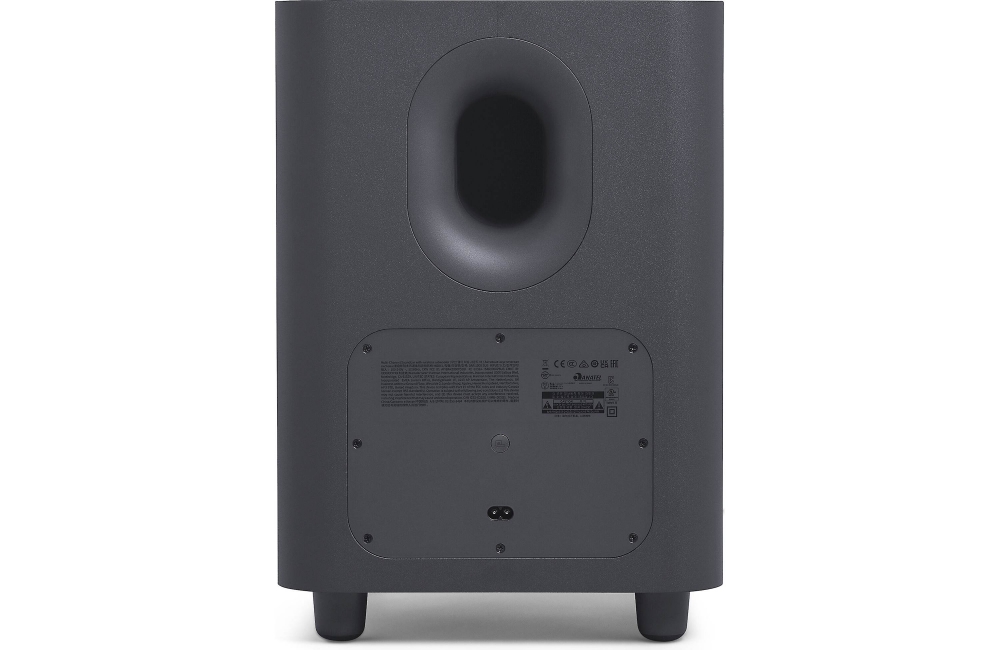

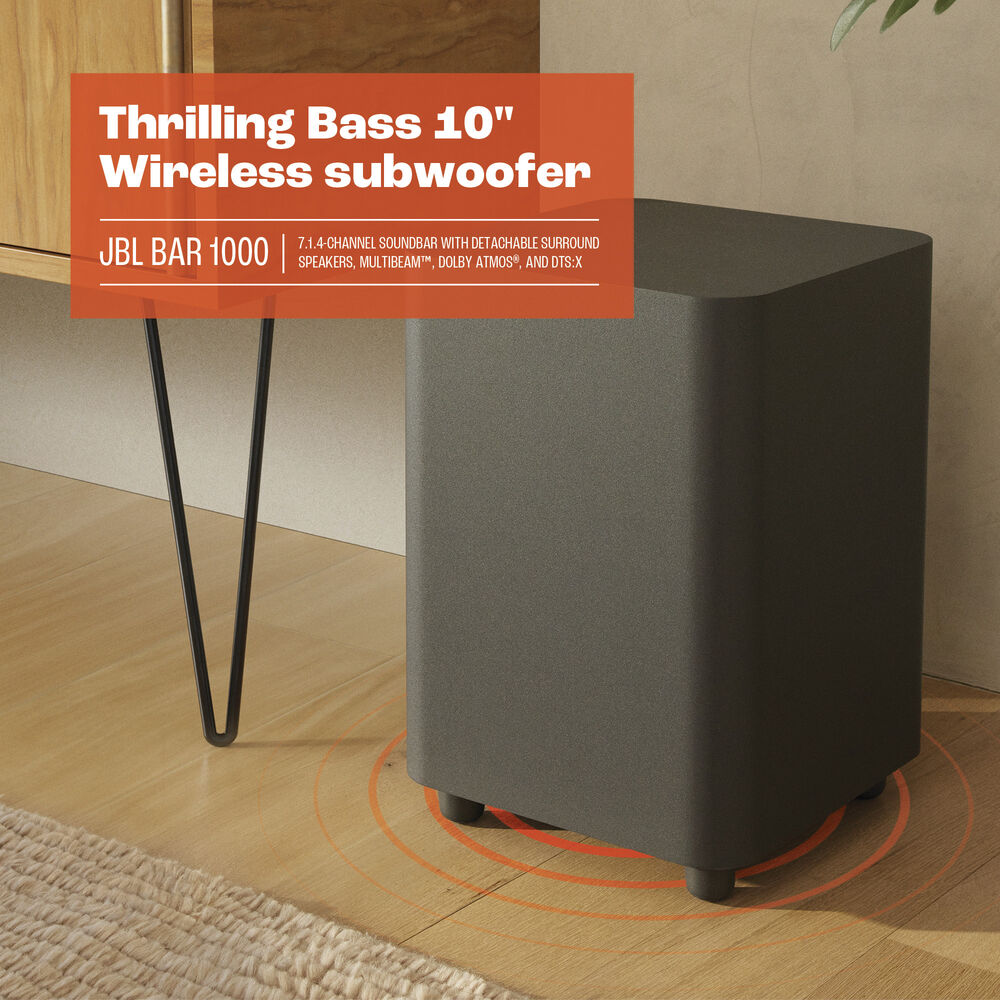

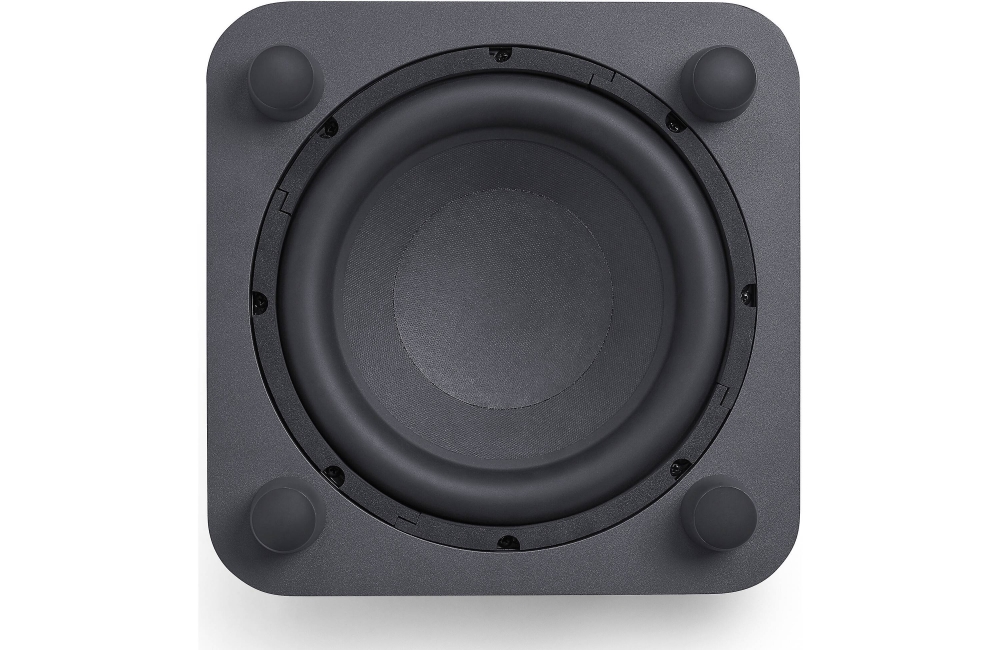

Subwoofer
Drivers    1 x 10" / 25.4 cm
Amplifier Output    300 W RMS
Total Harmonic Distortion (THD)    1%
Connectivity
Inputs    1 x HDMI - eARC
2 x HDMI
1 x Optical TOSLINK - Audio
USB I/O    1 x USB-A (Unspecified Interface)
Wireless Audio Protocols    AirPlay, Bluetooth, Chromecast built-in, Wi-Fi
Bluetooth    5.0
Bluetooth Profiles    A2DP 1.2, AVRCP 1.5
Wi-Fi    Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Mobile App Compatible    Yes
Functionality:
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Compatibility
Audio Decoding    DTS:X, Dolby Atmos
HDMI Compliance    eARC
HDR Compatibility    HDR10, Dolby Vision
HDCP Compliance    HDCP 2.3
Supported File Formats    MP3
Power
Power Consumption    < 2.0 W (Network Standby)
AC Input Power    100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature    32 to 113°F / 0 to 45°C
Physical
Wall Mountable    Yes, with Included Hardware
Dimensions
34.8 x 2.2 x 4.9" / 884 x 56 x 125 mm (Soundbar)
6.1 x 2.2 x 4.9" / 155 x 56 x 125 mm (Satellites)
12 x 17.3 x 12" / 305 x 440.4 x 305 mm (Subwoofer)
Weight
8.2 lb / 3.7 kg (Soundbar)
3.1 lb / 1.4 kg (Each Satellite)
22 lb / 10 kg (Subwoofer)
Packaging dimensions (W x H x D)
1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
Packaging Weight
19.4 kg / 42.7 lbs
