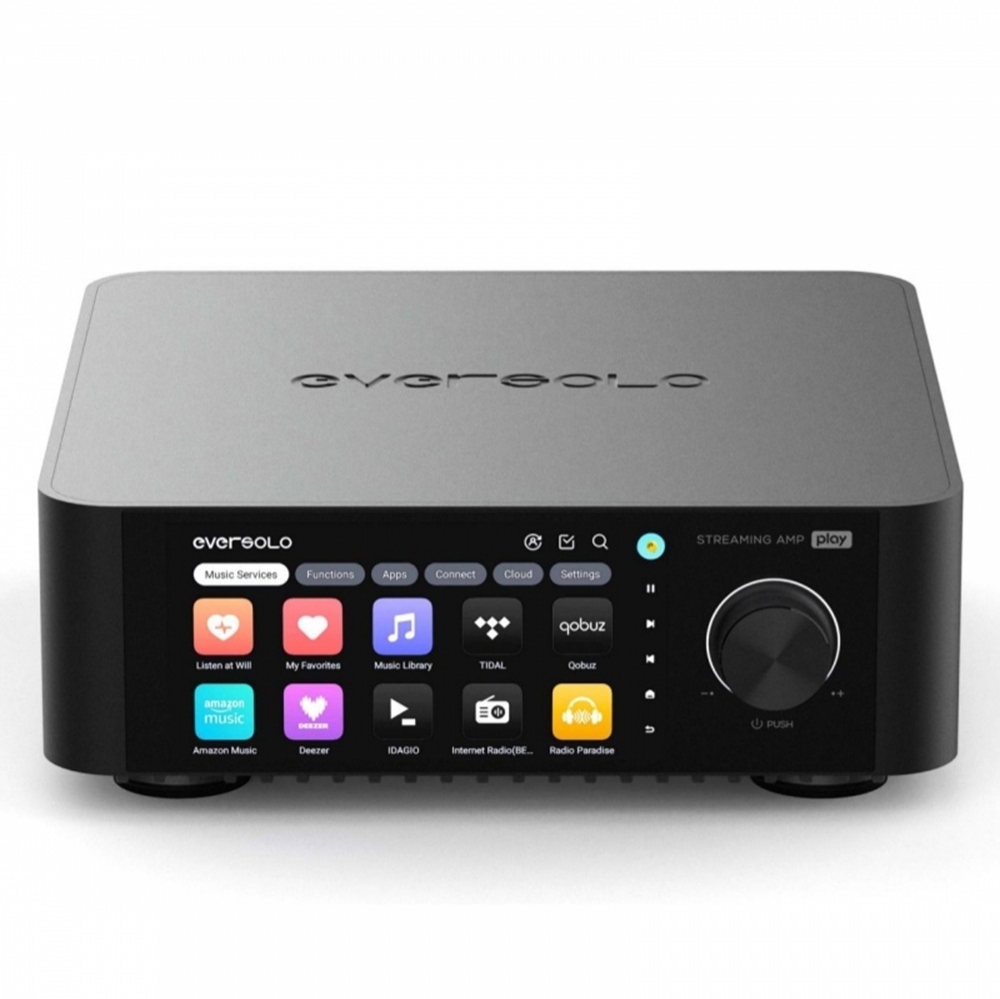

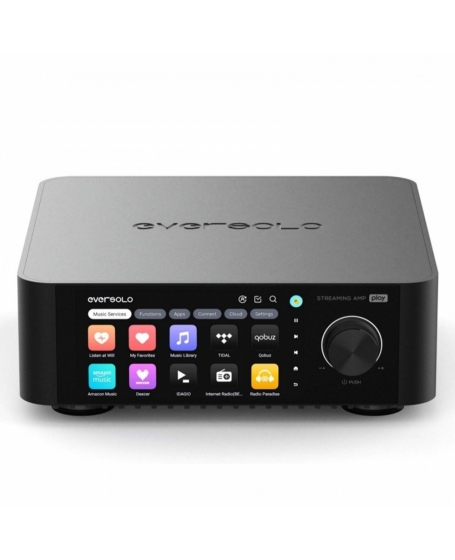

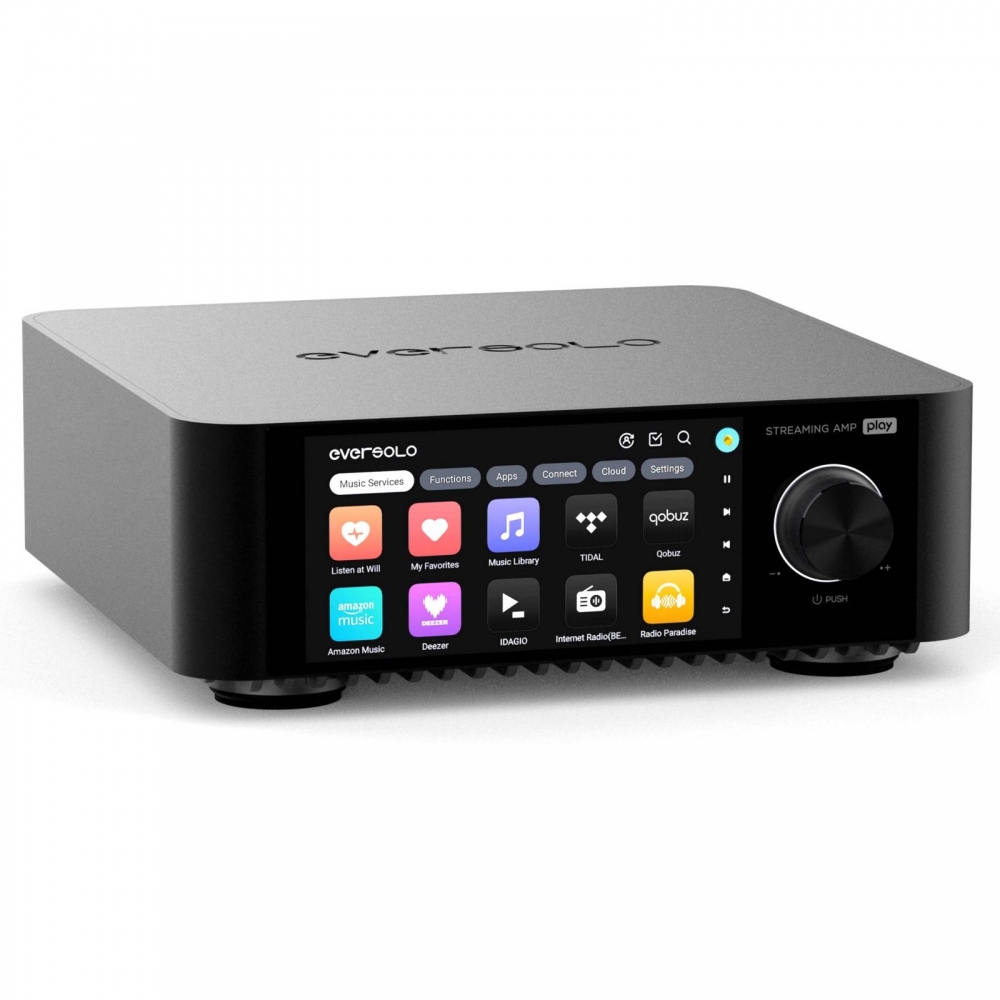

Eversolo Play

• The Eversolo Play is a streaming amplifier combining Eversolo's wireless and streaming audio wizardry with built-in amplification all in one convenient device.
• 5.5-inch vibrant HD touchscreen display
• Class-D Amp with 2 x 60W @ 8 Ohms, 2 x 110W @ 4 Ohms
• 32-bit AKM AK4493SEQ DAC chip
• Room Correction
• Dedicated Phono pre-amp, HDMI ARC and Subwoofer output

Whether you're a passionate music enthusiast or an audiophile, the Eversolo Play Series will elevate your listening journey, becoming an indispensable part of your musical lifestyle.

The Eversolo Play is a streaming amplifier combining Eversolo's wireless and streaming audio wizardry with built-in amplification all in one convenient device. The Play Series seamlessly integrates amplification, DAC, and streaming into a single unit, allowing users to enjoy lossless audio and effortlessly build a home Hi-Fi music system. Equipped with the high-performance 32-bit AKM AK4493SEQ DAC chip with VELVETSOUND™ technology, it achieves an SNR ≥109dB (A-wt) and ultra-low THD of 0.0037%. The Class D amplifier delivers robust power output of 60W at 8Ω and 110W at 4Ω, effortlessly driving bookshelf speakers to recreate every nuanced detail of live performances.

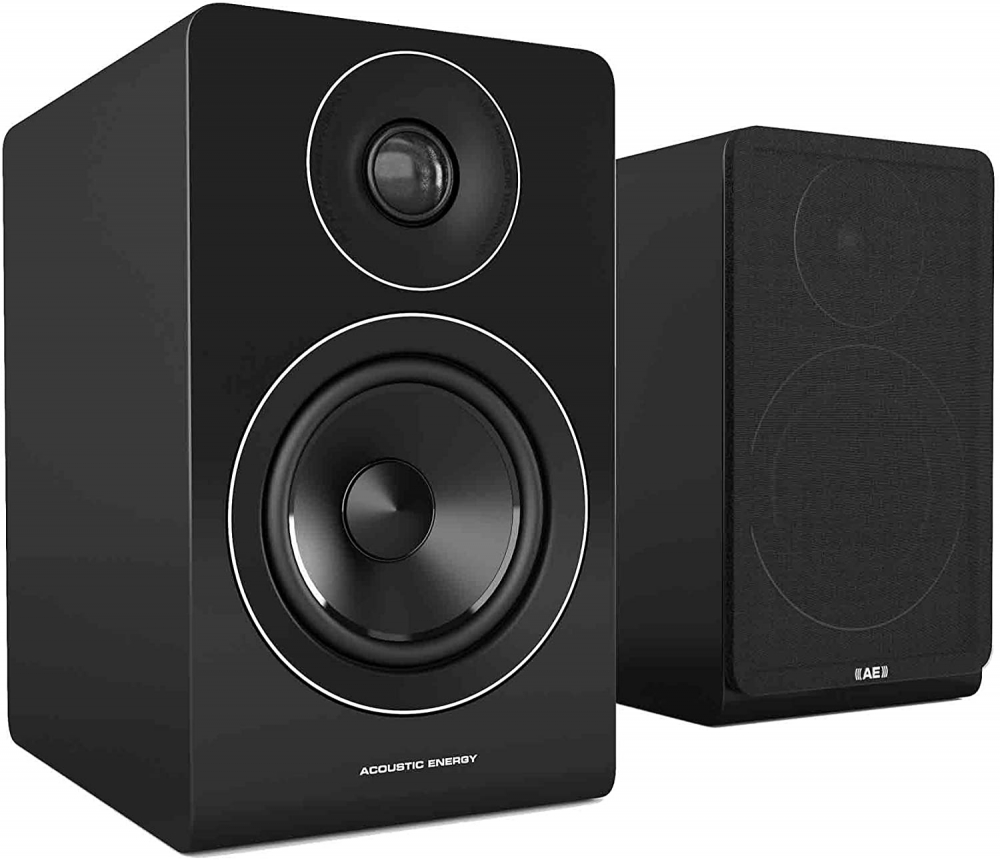

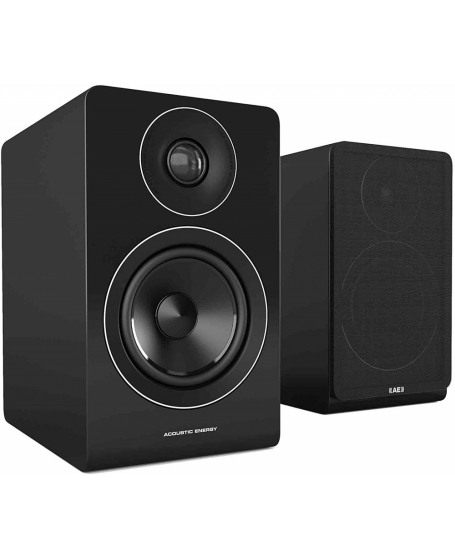

Acoustic Energy AE100

The AE100 is a compact standmount / bookshelf loudspeaker that exhibits qualities which perfectly embody those of Acoustic Energy.

The AE100 has been designed with a view to achieving high sound pressure levels from an extremely small enclosure. This is obtained principally through the use of a 110mm mid-bass drive unit built around an ultra high force, long throw motor system. Bass performance is augmented by a slot shaped duct allowing for a considerable cross sectional area while negating the issues of air turbulence.

A 25mm soft dome tweeter featuring our Wide Dispersion Technology completes the driver compliment, that’s housed within an 18mm MDF cabinet. Taking design cues from the award winning Reference Series and finished in a choice of satin black or walnut vinyl veneer finishes, the AE100 is sure to look good wherever you choose to place it while delivering a sound that belies its compact size.

Model
Play

Body Material
Aluminium alloy

Display
5.5" LCD Touchscreen

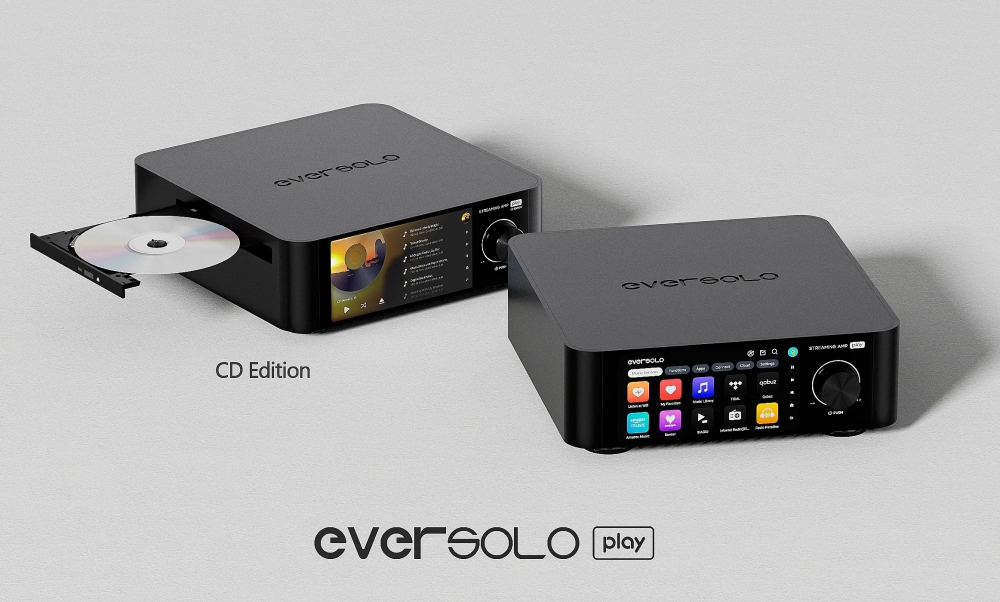

CD-ROM
No - Only the CD Edition includes a CD-ROM

DAC
AK4493SEQ

Internal Memory
4G DDR4 + 32G eMMC

USB Ports
2 x USB3.0

Ethernet
RJ-45(10/100/1000Mbps)

WiFi
2.4G+5G

DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit

Music File Formats
DSD (DSF, DFF, SACD ISO) Support DST up to DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE

Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc

Music Streaming
Roon Ready, TIDAL Connect, DLNA etc Qobuz Connect

Control Methods
On-screen touch control, Android/iPhone/iPad APP control

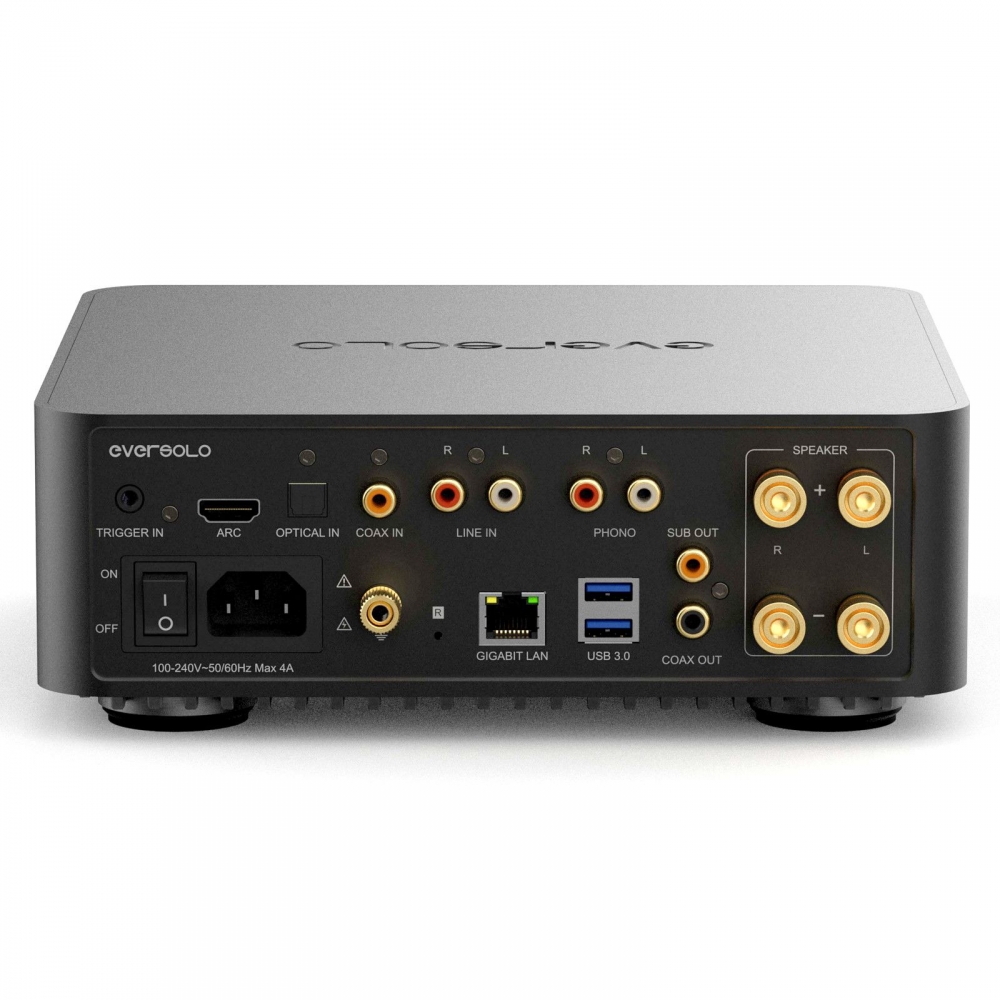

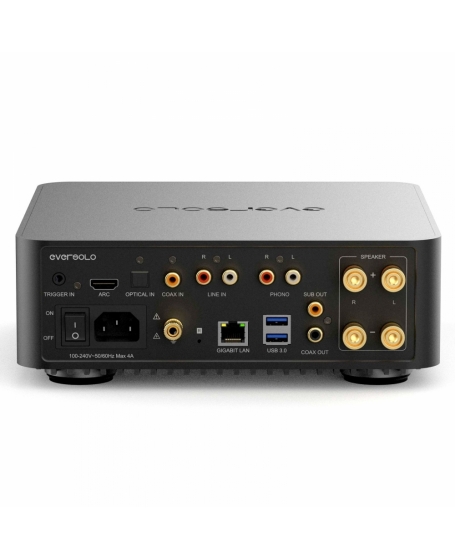

Audio Input and Output

Bluetooth Input
Bluetooth BT5.0, SBC/AAC

HDMI ARC Input
Supports up to Stereo PCM 192KHz 24Bit

Optical/Coaxial Input
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Analog Line In
Maximum input voltage 2VRMS

PHONO Input
Supports MM/MC

USB Audio Output
Supports up to Stereo DSD512 Native and PCM 768KHz 32Bit (Supports DAC audio devices with UAC standard only)

Coaxial Output
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Subwoofer Output
Adjustable crossover frequency from 40 Hz to 500 Hz

Audio Characteristics

Continuous Output Power
60W RMS@8Ω 110W RMS@4Ω

Amplifier Type
Class D Amplifier

Amplifier Gain
20.8dB

Input Sensitivity
2V

THD (20Hz-20KHz)
<0.0037% 5W at 1KHz

Signal-to-Noise Ratio
>109dB, @A-wt 4Ω 110W

Frequency Response
20Hz-20KHz < ±0.25dB, 20Hz-40KHz < -3dB

Damping Factor
>107

Channel Crosstalk
<-108dB

PHONO
• Amplifier gain: MM 60dB MC 74dB
• Input sensitivity: MM 5mV MC 0.5mV
• RIAA: ±0.5dB, 20Hz-20KHz

Other Information

PSU
AC 110~240V 50/60Hz Max 4A

Dimensions (W x D x H)
230 x 230 x 75 mm

Weight
2.6kg

Packing List
• Power Cable
• User Manual

Colour
Black

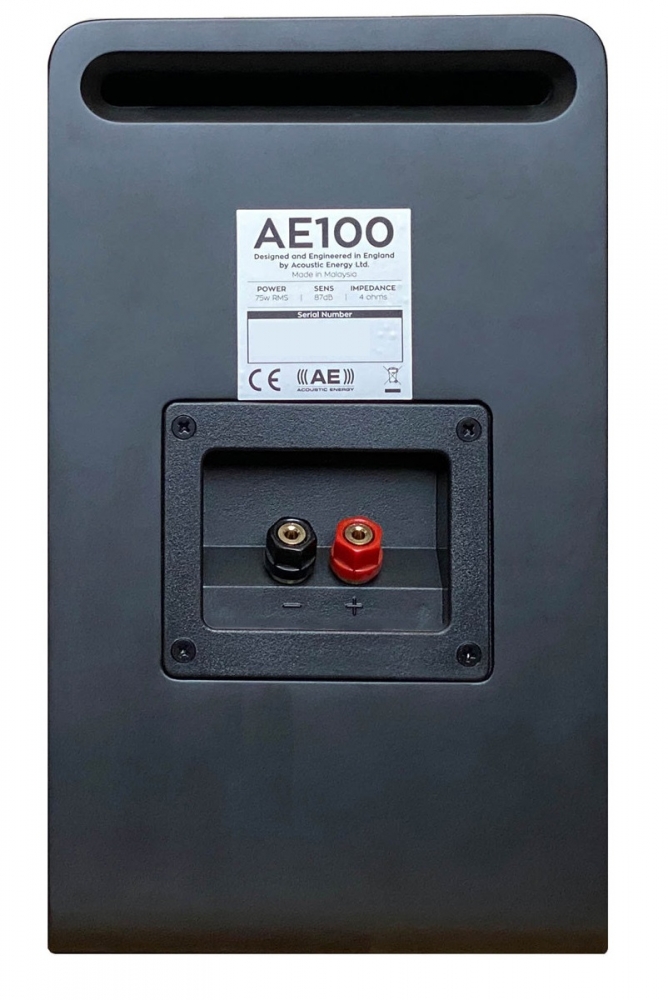

Acoustic Energy AE100
Design: 2 Way Bookshelf/Standmount Speaker
Mid/Bass Driver: 4” (101mm) paper cone
Tweeter: 1” (25mm) soft dome
Frequency Range: 45Hz -35kHz
Sensitivity: 87dB
Peak SBL: 110dB
Power Handling: 75 Watts
Crossover Frequency: 3.6kHz
Impedance: 4 Ohms
Finishes: Black
Dimensions (WxHxD): 160 x 270 x 240 mm
Weight: 8kg (pair)
