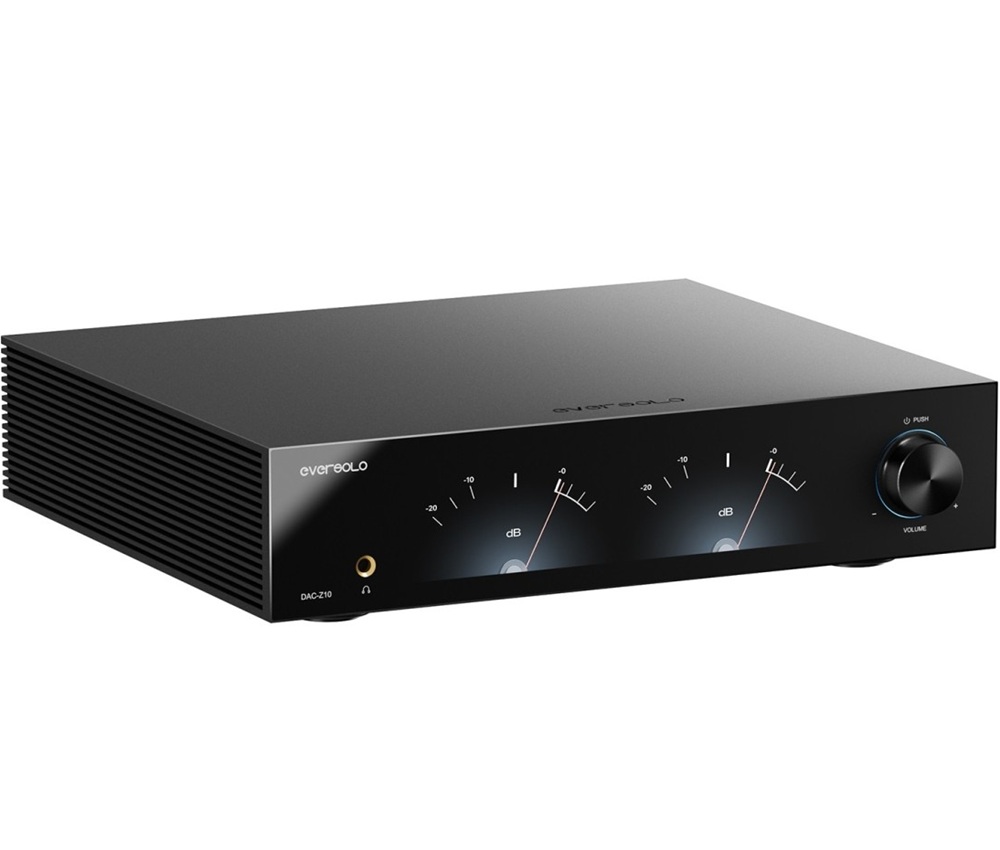

EverSolo DAC-Z10

Digital to Analog Converter

The Eversolo DAC-Z10 is a high-end digital-to-analog converter (DAC) designed for demanding audiophiles, combining technical precision and musicality. It features a fully isolated architecture (FIA), which physically and electrically separates the digital and analog circuits to minimize interference and preserve signal purity. Equipped with two AKM decoding chips (AK4191 + AK4499EX) per channel, it offers high-resolution conversion up to 32-bit 768kHz PCM and DSD512, ensuring highly refined sound reproduction with low distortion.

The DAC-Z10 also incorporates a high-precision clock system, the Eversolo Precision Core™, combining a temperature-controlled crystal oscillator (OCXO), PLL (phase-locked loop) technology, and FPGA clock reconstruction, ensuring optimal time consistency and reduced jitter. Its R2R volume control and integrated preamplifier enable analog signal management, while its comprehensive connectivity (USB, XLR, RCA, HDMI ARC/eARC, Bluetooth 5.0) makes it a versatile device, suitable for HiFi systems as well as home theater or headphone setups. With a total harmonic distortion plus noise of only 0.00008% and a dynamic range of 130dB, this DAC is the complete solution for high-fidelity audio enthusiasts.

Eversolo DAC-Z10: Fully isolated FIA architecture

The DAC-Z10 is based on Eversolo's fully isolated architecture (FIA), which completely separates the digital and analog sections to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in a very low-noise environment. Its decoding architecture features two independent sets of AK4191 + AK4499 DACs for the left and right channels, combined with a fully balanced analog preamplifier that uses precise dual-channel R2R volume control. This configuration delivers high dynamic range and extremely low THD+N.

Eversolo DAC-Z10: Three independent power supplies

With three independent toroidal transformers for the left channel, right channel, and system power supply, the DAC-Z10 maintains ultra-low noise down to 42µV. This design minimizes interference, giving each channel its own clean, isolated voltage supply for stable, detailed sound.

Eversolo DAC-Z10: Dual decoding modules

Designed with a fully symmetrical architecture, the DAC-Z10 is equipped with two independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM's Velvet Sound™ technology, it offers a perfect balance between precision and tonal richness. The DAC-Z10 also supports high-resolution files up to PCM 32-bit 768kHz and DSD512.

Eversolo DAC-Z10: R2R volume control

The DAC-Z10 uses a precise R2R resistor network for volume control, preserving the original signal at all levels. Whether at low volume or full volume, every nuance remains intact, delivering clear, accurate, and faithful sound.

Eversolo DAC-Z10: Fully balanced preamplifier

The Eversolo DAC-Z10 features a high-performance, fully balanced preamplifier with XLR and RCA analog inputs offering up to +10dB of gain. Combined with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly improving dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo DAC-Z10: Phase-locked loop technology

The DAC-Z10 incorporates an OCXO temperature-controlled quartz oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate synchronization is fundamental to high-resolution audio reproduction. Thanks to the stability of the OCXO and the precision of the PLL correction, the DAC-Z10 ensures that every note is reproduced exactly as intended.

Eversolo DAC-Z10: External clock support

Precise synchronization is essential for capturing all musical nuances. With support for a high-precision external clock, the Eversolo DAC-Z10 offers unmatched stability and accuracy. It is possible to connect a 10MHz or 25MHz external clock, and the DAC-Z10 provides a 50Ω input and a 75Ω input.

Eversolo DAC-Z10: High-end FPGA

The Eversolo DAC-Z10 incorporates an FPGA that shapes the I2S data and refines the clock. Each digital signal is thus optimized to achieve its purest form before reaching the DAC.

Eversolo DAC-Z10: Captures every nuance of the music

The DAC-Z10 delivers exceptional sound quality that is both rich and detailed. With an ultra-low THD+N of 0.00008% and a wide dynamic range of 130dB, every note sounds with unparalleled clarity.

Eversolo DAC-Z10: Multi-core USB audio processor

The DAC-Z10 is equipped with a multi-core USB audio processor, offering high processing speed and bandwidth to ensure lossless transmission and high resolution. The DAC-Z10's USB input supports files up to PCM 32-bit 768 kHz and native DSD512. Its optical and coaxial inputs support resolutions up to PCM 24-bit 192 kHz and DSD64 DoP.

Eversolo DAC-Z10: Grounding terminal block

The DAC-Z10's ground terminal dissipates noise, eliminating even minor interference and preserving the purity of every note.

Eversolo DAC-Z10: I2S audio input with 8 modes

Via its I2S digital audio input, the Eversolo DAC-Z10 offers 8 switchable modes and supports resolutions up to PCM 32-bit 768kHz and native DSD512. Its fully isolated hardware design separates the signal and ground between devices, ensuring clean signals and improved audio clarity.

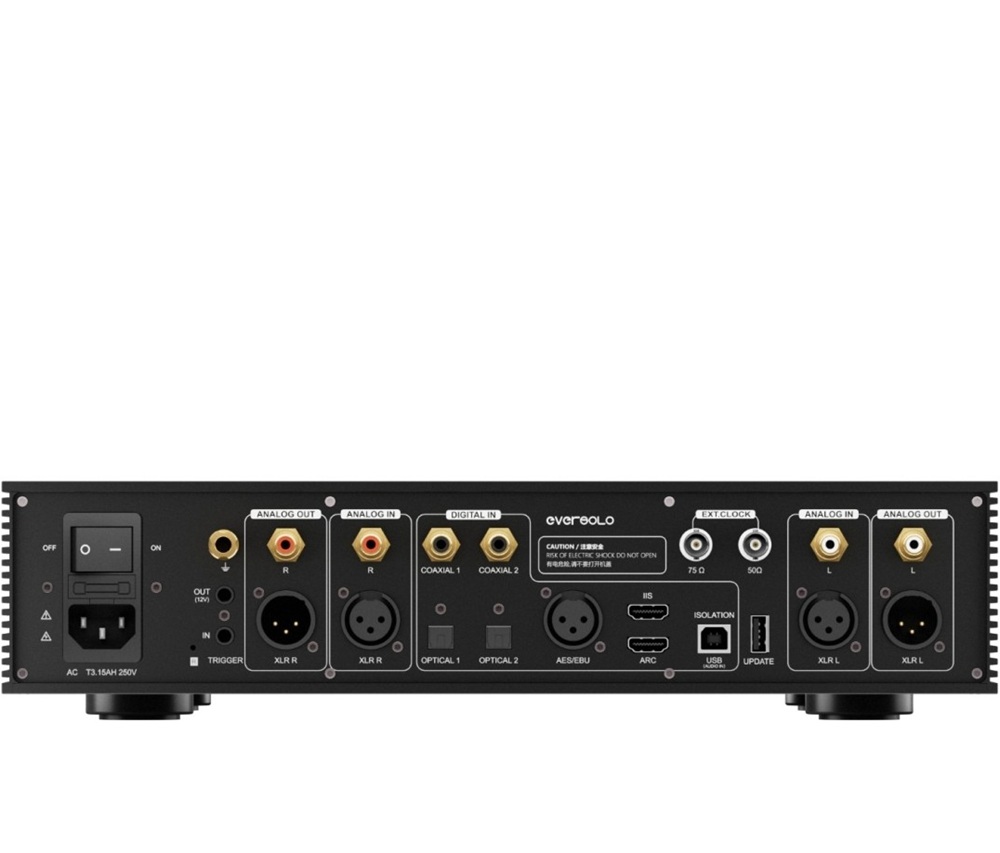

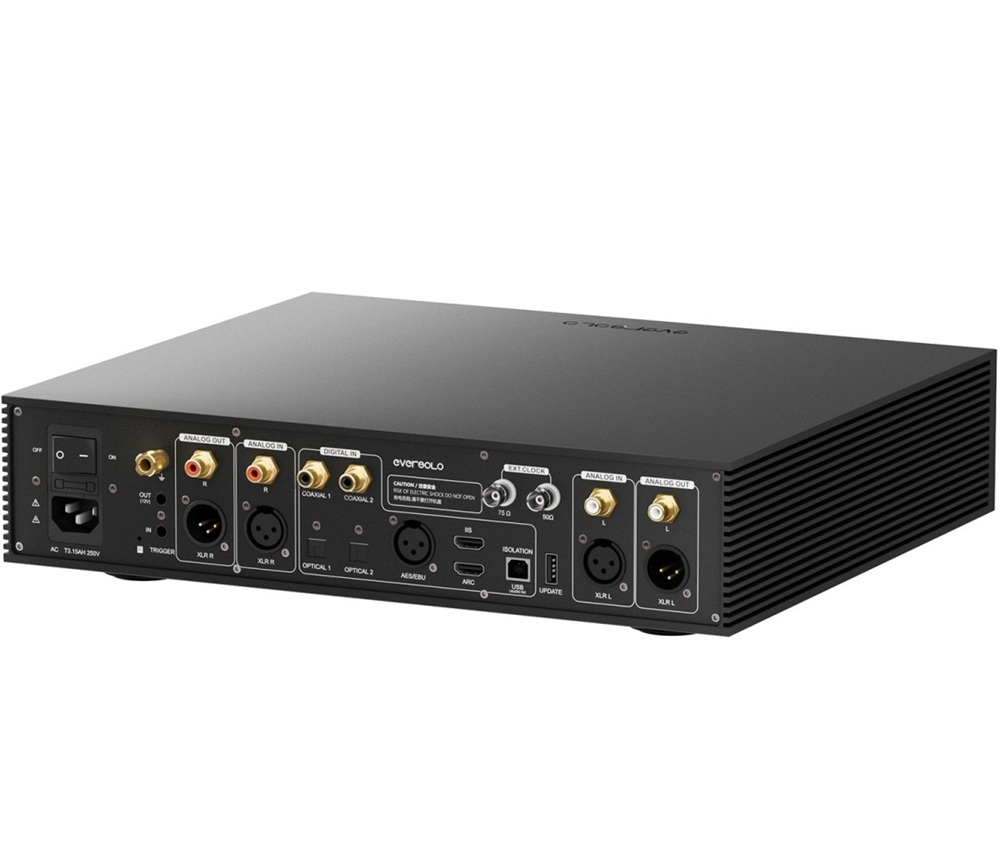

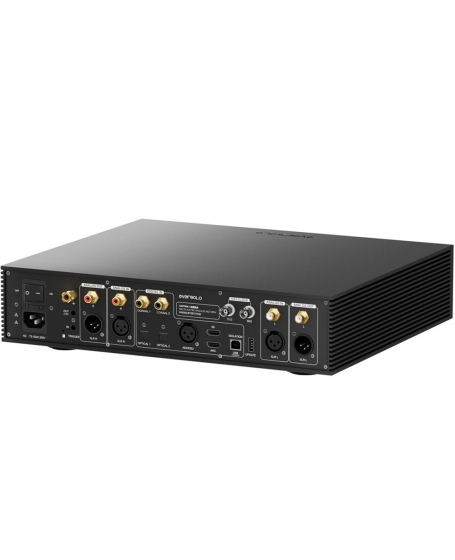

Eversolo DAC-Z10: A particularly comprehensive range of connectors

The Eversolo DAC-Z10 is definitely versatile, thanks in particular to its extremely comprehensive range of connections, designed to meet all needs and integrate with all systems.

• Dual coaxial input: The DAC-Z10 features two isolated coaxial inputs, supporting up to 24-bit 192kHz PCM. This design effectively protects against external interference, preserving every detail with clarity and precision.
• Isolated AES/EBU input : To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, which completely separates electrical noise between source and destination devices.
• Dual optical input: The DAC-Z10 supports two optical inputs, providing greater flexibility and connectivity to your audio system.
• USB Audio input: USB is often the most convenient choice for digital audio, but electrical noise and ground loops can subtly compromise its purity. The DAC-Z10 introduces an isolated USB audio input, which transmits only clean data while blocking all electrical interference.
• Trigger input and output: Manually turning each device on and off can be tedious. The DAC-Z10's trigger interfaces act as a control channel, allowing for seamless, linked control of your entire system.

Eversolo DAC-Z10: HDMI ARC integration

The Eversolo DAC-Z10 is equipped with HDMI ARC connectivity, supporting ARC and eARC modes for easy integration into your home theater system. It not only decodes high-fidelity music, but also delivers cinematic sound with breathtaking clarity and realism.

Eversolo DAC-Z10: Headphone amplifier module and Jack 6.35mm output

The DAC-Z10 features a dedicated headphone amplifier module with a 6.35mm jack output that automatically detects impedance and adjusts gain, delivering powerful and detailed sound. Gain settings—high, medium, and low—allow you to tailor playback to different headphones and listening preferences.

Eversolo DAC-Z10: High quality Bluetooth module

The DAC-Z10 is equipped with a Qualcomm QCC5125 Bluetooth module. Whether you're streaming from your phone or connecting directly via a tablet, it delivers a high-fidelity wireless listening experience.

Eversolo DAC-Z10: A resolutely modern design

The Eversolo DAC-Z10 boasts a sleek and modern aesthetic. Its chassis is made from aerospace-grade aluminum. Both rigid and lightweight, it combines precision engineering with refined design.

Eversolo DAC-Z10: A seamless user experience

The DAC-Z10 features a large 8.8-inch IPS touchscreen with a clear and intuitive interface. Changing inputs, adjusting volume, and checking format information are all operations that can be performed at your fingertips.

Eversolo DAC-Z10: Un design qui s'adapte à vos préférences

To allow each user to customize the DAC-Z10 according to their personal taste and the aesthetics of their space, the color of the LED surrounding the main button can be changed.

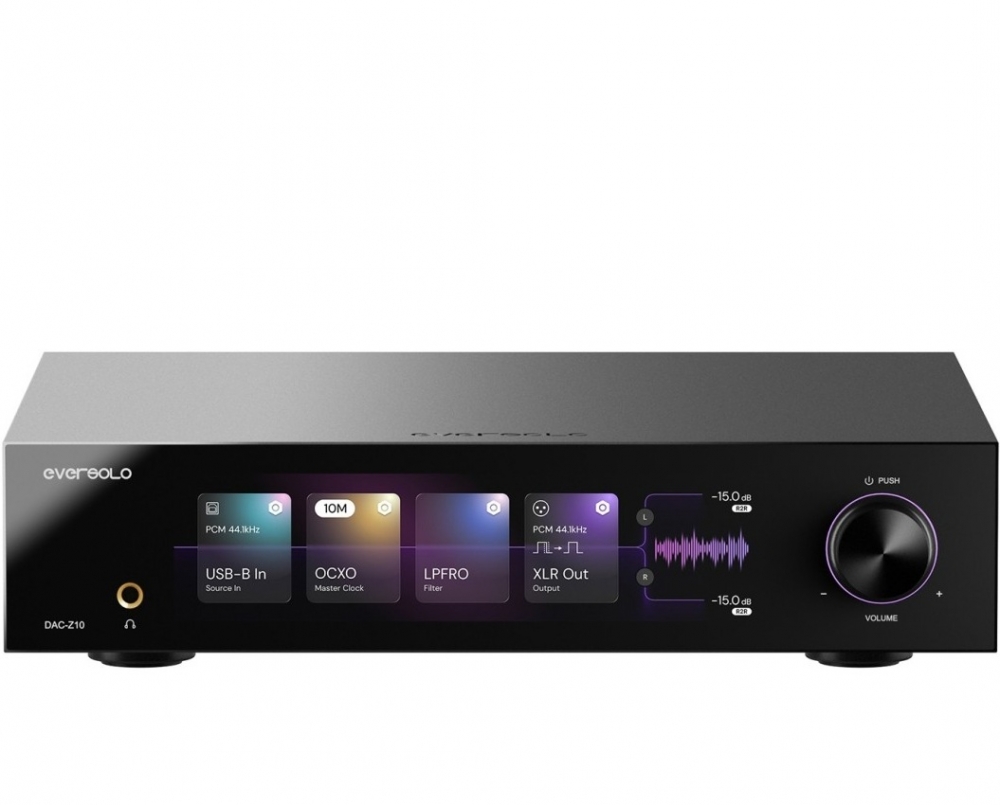

Eversolo DAC-Z10: Intuitive signal path display

On this DAC-Z10 interface, the signal path is highlighted. Sources, master clock, filter characteristics, XLR/RCA outputs, and R2R volume control balance: everything is clearly presented for immediate understanding.

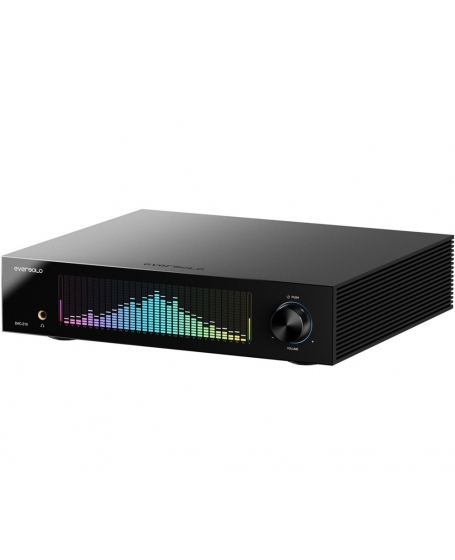

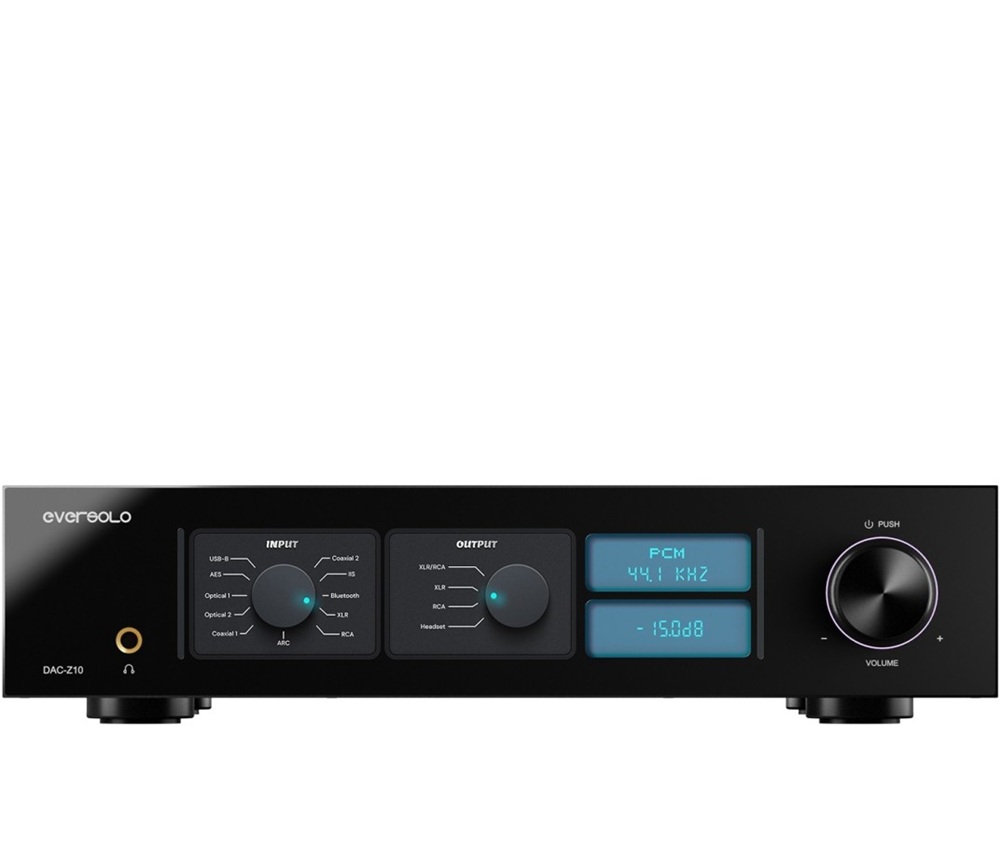

Eversolo DAC-Z10: Your music, your style

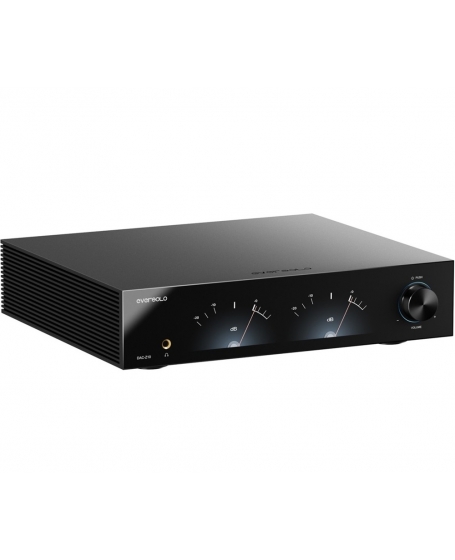

The Eversolo DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to visualize your music during your listening sessions.

Eversolo DAC-Z10: Adjustable channel balance

The DAC-Z10 offers left/right channel balance gain adjustment of up to 15dB, allowing you to fine-tune each channel to suit your listening preferences.

Eversolo DAC-Z10: Tailored listening

The Eversolo DAC-Z10 offers 6 filters, allowing you to switch freely between them depending on the type of music you are listening to. With its versatile filter curves, the DAC-Z10 shapes the sound to suit your preferences.

Eversolo DAC-Z10: Adjustable XLR polarity

To ensure faithful sound reproduction, the DAC-Z10 offers two XLR polarity modes, allowing precise adjustment to suit different system requirements. This ensures stable and accurate signal transmission.

Eversolo DAC-Z10: Control your music with the touch of a finger

The DAC-Z10 supports control via the mobile app, touchscreen, and remote control. Manage your system remotely from your smartphone or interact directly via the large touchscreen. Whichever you choose, your music is always at your fingertips.

Basic Parameters
Model: Eversolo DAC-Z10
Display: 8.8" IPS
Chassis Material: Aluminium alloy
Main Processor: DCP8568
DAC: Left Channel: AK4191+AK4499; Right Channel: AK4191+AK4499
Audio Processor: Multi-core USB audio processor
OPA Chip: OPA1612
Power: Triple ultra-low noise linear power supplies
Audio Inputs & Outputs
Bluetooth Audio Input: Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input: Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input: Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input: Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2: Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2: Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input: Up to Stereo PCM 192KHz/24Bit
Analog Audio Inputs: XLR (Balanced), RCA
Analog Audio Outputs: Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
External Clock Input: Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance: 16 – 300Ω (Low Gain: 16 – 32Ω / High Gain: 32 – 300Ω)
Other Information
Power Supply: AC 100~240V 50/60Hz
USB Port: USB2.0*1（only for firmware upgrade）
Control Methods: Touchscreen control, remote control, mobile App control
Rated Power Consumption: 32W
Dimensions: 365mm (L) × 310mm (W) × 88mm (H)
Packing List: Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1
