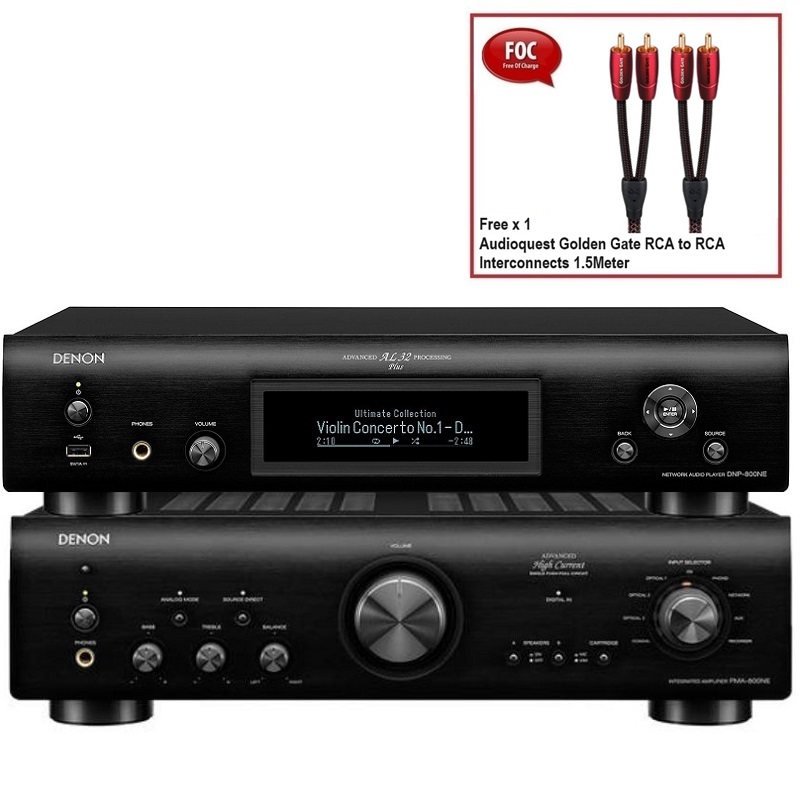

Denon PMA-800NE Integrated Amplifier & DNP-800NE Network Player

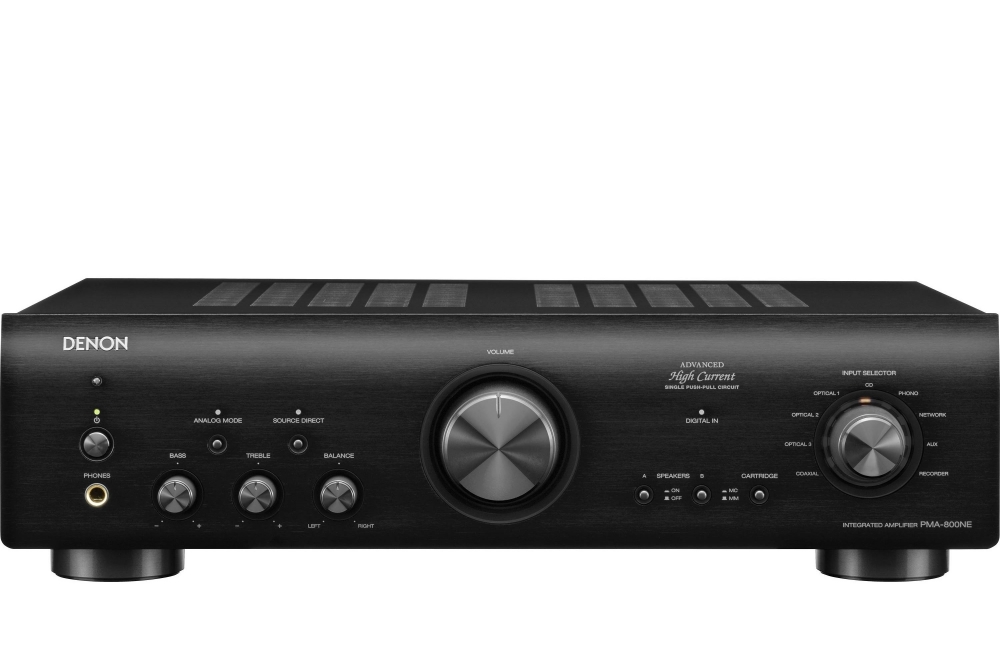

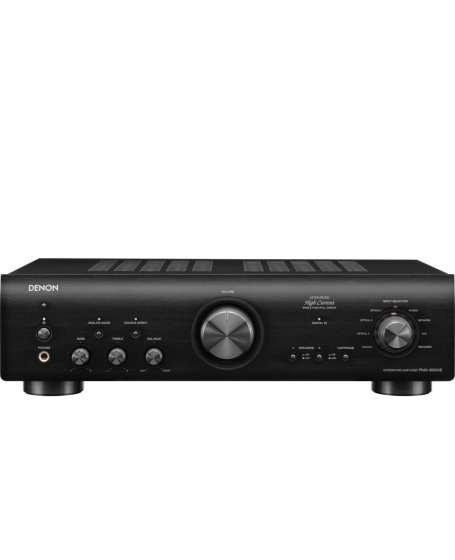

PMA-800NE

Featuring digital inputs and a built-in phono equalizer, the Denon PMA-800NE integrated amplifier sets new heights in premium audio performance.

具有數位輸入和內置的唱頭等化器，Denon PMA-800NE綜合擴大機在高級的音訊性能中建立新高度。

Overview

The Denon PMA-800NE integrated amplifier sets new heights in premium audio performance with digital inputs and a built-in phono equalizer. From deep bass to detailed highs, listen to your favorite high-resolution audio content with the 192kHz/24bit D/A converter. At 85W (4 Ohms) per channel, the PMA-800NE supplies enough power to drive your speakers for optimal sound. Connect the PMA-800NE to your favorite components with the three Optical and one Coaxial digital inputs. Powered by the Denon Advanced High Current (AHC) single push-pull circuit power amplifier, the PMA-800NE provides exceptional sound quality that balances high power with delicate, musical details.

概述

Denon PMA-800NE綜合擴大機具有數位輸入和內置唱頭等化器，在高級的音訊性能中建立新高度。使用192kHz/24bit D/A轉換器聆聽您最喜愛的高解析音訊內容。每聲道85W(4 Ohms)，PMA-800NE提供足夠功率驅動您的喇叭以達到最佳聲音。透過3個光纖和1個同軸數位輸入，將PMA-800NE連接到您喜愛的單機。由Denon高級大電流(AHC)單端推挽電路功率擴大機驅動，PMA-800NE提供出色的音質，使高功率與精巧的音樂細節達成平衡。

Features

• 2 x 85 W (4 ohm) power output: Get the maximum performance to drive your favorite loudspeakers
• Advanced High Current (AHC) Single Push-Pull circuit power amplifier: Wide bandwidth captures everything from deep bass to detailed highs
• 3 Optical, 1 Coaxial digital input: Supports all digital music sources
• Built-in 192kHz/24bit D/A converter: Experience high-resolution audio playback
• Impeccable sound engineering with carefully selected and rigorously tested Hi-Fi parts: Enjoy the exceptional sound that is the signature of Denon amplifiers
• Analog Mode for pure audio reproduction: Enjoy the richness of your treasured analog music sources
• High performance MM and MC phono equalizer amp: Connect any turntable and enjoy vinyl tracks
• Vibration-resistant design with Direct Mechanical Ground Construction: Listen to music with pristine detail and quality unaffected by the environment
• Main transformer with separate coiled wires for audio/control circuits: Eliminates interference to optimize sound quality
• Micro-processor with Stop Mode: Protects audio signal from external noise during playback
• Denon-proprietary Signal Level Divided Construction (SLDC) chassis: Amplify and transmit delicate musical signals to the speakers to capture the nuance of the music
• Engineered with a more than 100-year Denon legacy in audio excellence: Trust this high-quality and durable system to deliver the ultimate audio experience

• 2 x 85 W (4 ohm)功率輸出:以最大的性能驅動您最喜愛的喇叭
• 高級大電流(AHC)單端推挽電路功率擴大機:寬廣的頻寬捕捉所有從重低音到高音細節
• 3個光纖、1個同軸數位輸入:支援所有數位音樂來源
• 內置的192kHz/24bit D/A轉換器:體驗高解析音訊播放
• 無可挑剔的聲音工程和精心挑選並經過嚴格測試的Hi-Fi零件:享受Denon擴大機出色的聲音
• 類比模式提供純音訊重現:享受您珍貴的類比音樂的豐富來源
• 高性能MM和MC唱頭等化擴大器:連接任何的唱盤，享受黑膠唱片音軌
• 具有直接機械接地結構防震設計:聆聽音樂最原始的細節和不受環境影響的品質
• 音訊/控制電路的主變壓器，獨立繞線:消除干擾以優化音質
• 微處理器具有停止模式:播放時保護音訊信號免於外部噪音干擾
• Denon專屬的信號級分立式結構(SLDC)底盤:擴大和傳遞精緻的音樂信號到喇叭，捕捉音樂的細微差別
• 秉承Denon百年多來在音響領域的卓越傳奇:這款高品質耐用系統能帶來終極的音訊體驗

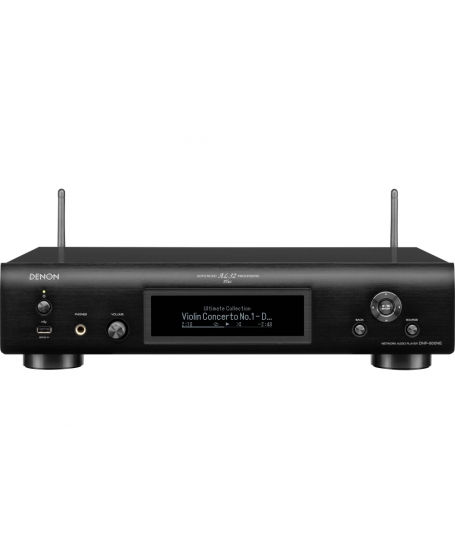

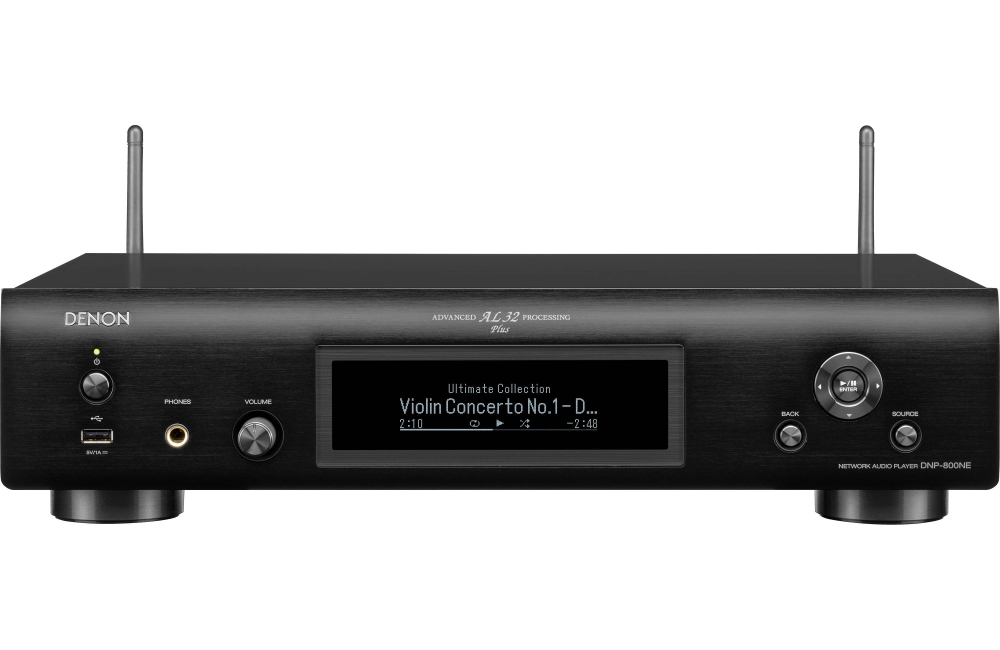

DNP-800NE

Network Audio Player with Wi-Fi and Bluetooth

Overview

Expand your sonic world with the DNP-800NE. The thoughtfully designed Network Audio Player offers precision for high-resolution audio and music streaming. Directly connect to your home network or stream over Wi-Fi and enjoy music services like Spotify, Deezer, Tidal, Amazon Music, TuneIn internetradio and more. Bluetooth and Airplay 2 are supported for direct streaming from a smart device. Enjoy gapless playback of your high-resolution audio including 192kHz/24bit FLAC/WAV, ALAC, DSD 2.8/5.6MHz, and listen from any of your connected devices. Thorough sound engineering and solid construction guarantees best in class audio performance. Enjoy DNP-800NE via the speaker connected to your amplifier like PMA-800NE or privately via the high-quality headphone output. Easily control the DNP-800NE with Amazon Alexa voice compatibility or with the free HEOS App.

Features

• Wi-Fi, AirPlay 2, Bluetooth and USB: Stream wide variety of music including high-resolution audio from connected devices
• Stream music wirelessly from the most popular music services: Enjoy your full collection from Spotify, Deezer, Amazon Music, SoundCloud, Tidal, TuneIn, Internet Radio and more
• Advanced AL32 Processing Plus and Ultra Precision 192kHz/32bit D/A Converter: Accurate playback that’s faithful to the original recording
• Impeccable sound engineering with carefully selected and rigorously tested Hi-Fi parts: Enjoy the exceptional sound that is the signature of all Denon Hi-Fi products
• Supports gapless playback of high-resolution audio: Enjoy pristine sound for 192kHz/24bit FLAC, WAV, ALAC, DSD 2.8/5.6MHz formats
• HEOS whole-home audio solution: Enjoy your Hi-Fi experience anywhere in the home wirelessly with optional compatible HEOS speakers
• Amazon Alexa voice compatibility: Easily control your system with voice commands — skip tracks, turn up the volume, select a stream and more
• Two integrated clock oscillators: Ensures jitter-free audio reproduction
• Three-line OLED display: View all related functions with bright, clear accuracy no matter the viewing angle
• Headphone output with Amplifier Gain setting: Connect your premium headphones for a more personal listening experience

Denon PMA-800NE Specs
Amplifier
Amplifier Type    Integrated Amplifier (Preamp/Power Amp Combo)
Channels    2.0
Power Output per Channel    50 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD
85 W at 4 Ohms / 1 Hz / 0.7% THD
Frequency Response    5 Hz to 100 kHz +0/-3 dB
THD    0.01% (8 Ohms, 1 kHz, Rated Output -3 dB)
Speaker Impedance    4 to 16 Ohms
Tone Control    Bass (100 Hz): ±8.0 dB
Treble (10 kHz): ±8.0 dB

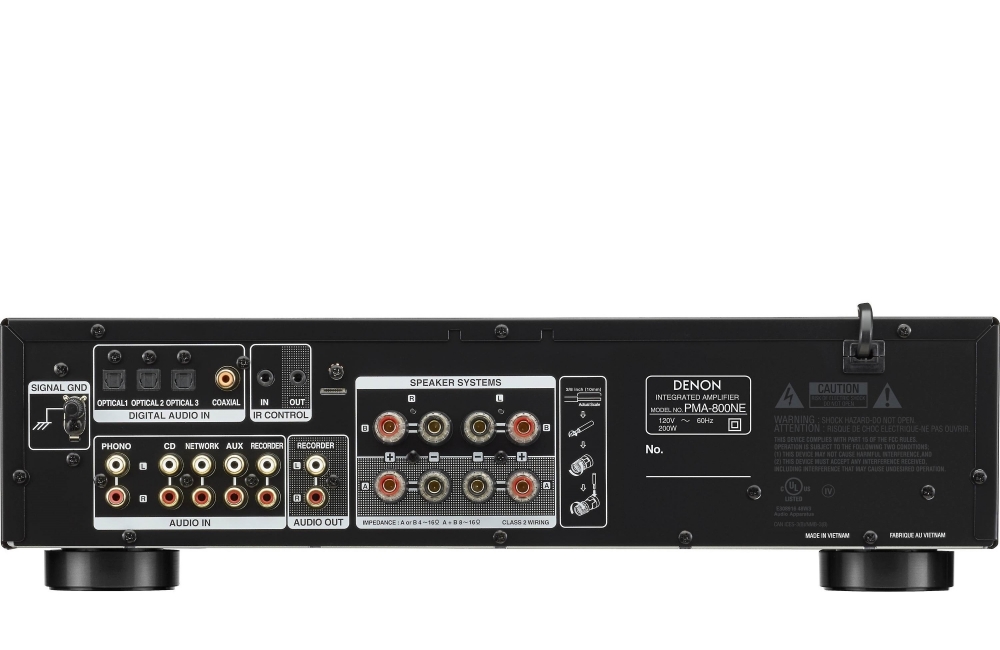

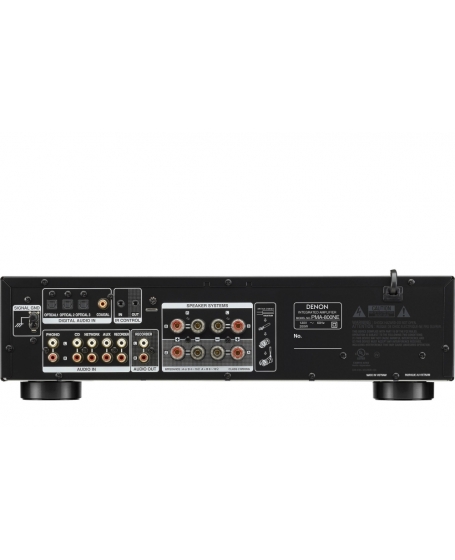

Connectivity
Rear A/V Inputs    3 x Optical TOSLINK
1 x Digital Coaxial
4 x Stereo RCA
1 x Stereo RCA (Phono MC/MM) with Ground Screw
Rear A/V Outputs    1 x Stereo RCA
Front I/O    1 x 1/4" / 6.35 mm Headphone Output
Other Rear I/O    1 x 1/8" / 3.5 mm (IR) Input
1 x 1/8" / 3.5 mm (IR) Output
Speaker Connectors    4 x Binding Post Pair
Input Impedance    Digital Coaxial: 75 Ohms
Phono (MC): 100 Ohms
Phono (MM): 47 Kilohms
Line:
40 Kilohms (Source Direct Off)
17 Kilohms (Source Direct On)
Input Sensitivity    Phono (MC): 200 mV
Phono (MM): 2.5 mV
Line: 105 mV
Max Input Level    Phono (MC): 6 mV (1 kHz)
Phono (MM): 70 mV (1 kHz)
Phono RIAA EQ Deviation    ±0.5 dB (20 Hz to 20 kHz)
Signal to Noise Ratio    Phono (MC): 71 dB (0.5 mV Input)
Phono (MM): 86 dB (5 mV Input)
Line: 105 dB
Wireless Connectivity
Wi-Fi    None
Bluetooth    None
Power
AC Input Power    240 VAC, 50/60 Hz
Power Consumption    Active: 200 W
Standby: 0.3 W
Physical
Dimensions (W x H x D)    17.1 x 4.9 x 12.1" / 434.0 x 122.0 x 307.0 mm
Weight    16.5 lb / 7.5 kg
Packaging Info
Package Weight    19.75 lb
Box Dimensions (LxWxH)    20 x 15 x 8"

Denon DNP-800NE Specs
System Specifications
Frequency Response (-3 dB)    2 Hz to 50 kHz (192 kHz PCM sampling frequency)
Frequency Range    Playable, DSD: 2 Hz to 100 kHz
Playable, 192 kHz: 2 Hz to 96 kHz
Playable, 44.1 kHz: 2 Hz to 20 kHz
Signal-to-Noise Ratio    115 dB
Total Harmonic Distortion    DSD: 0.0015%
24-Bit PCM: 0.002%
16-Bit PCM: 0.0025%
Dynamic Range    DSD, 24-Bit PCM: 108 dB
16-Bit PCM: 101 dB
Digital-to-Analog Converter (DAC)    Burr Brown PCM1795 32-bit, 192 kHz
Menu Languages    English (default), German, French, Italian, Spanish, Dutch, Swedish, Russian, Polish

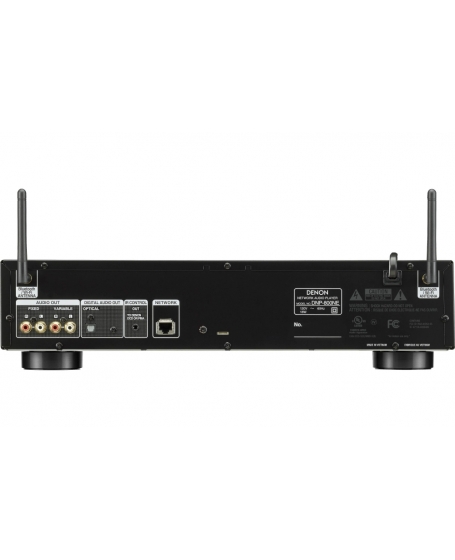

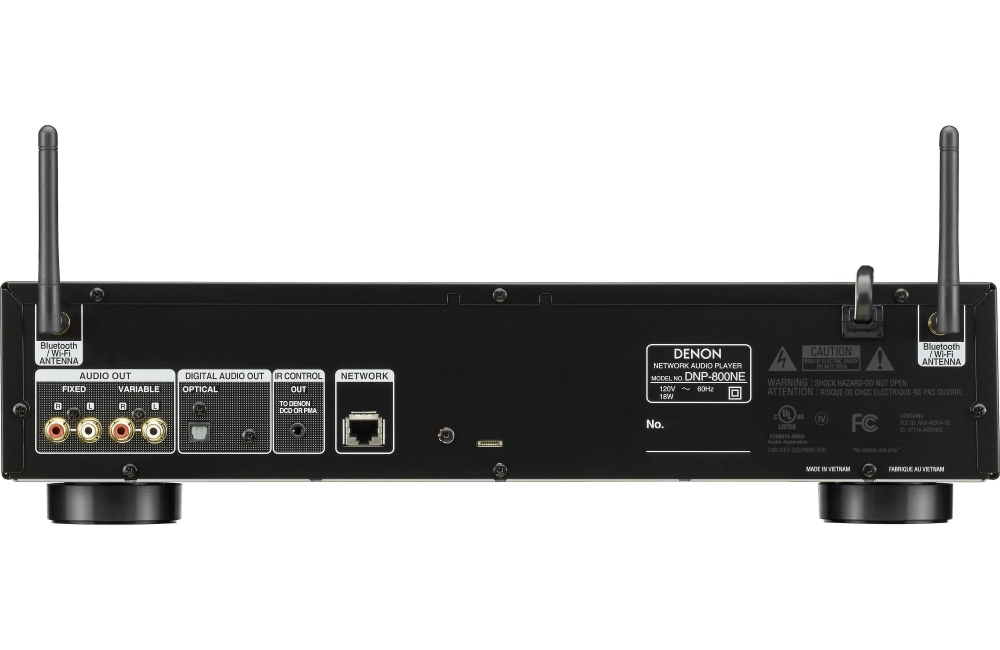

Connectivity
Bluetooth Specification    Version: 3.0 + EDR (Enhanced Data Rate)
Profile Support: A2DP 1.2, AVRCP 1.5
Corresponding Codec: SBC
Transmission Frequency Range (A2DP): 20 Hz to 20 kHz
Range: Up to 98.4' / 30 m with line of sight
Frequency: 2.4 GHz
Modulation Scheme: FHSS (Frequency-Hopping Spread Spectrum)
Transmission Power: Bluetooth Specification Power Class 1
Wi-Fi    Dual-band (2.4/5 GHz) IEEE 802.11a/b/g/n
Wi-Fi Security    WEP: 64-bit, 128-bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
DLNA    Version 1.5
AirPlay    Yes, AirPlay 2
Inputs    1 x USB 2.0 Type-A (front)
Outputs    1 x fixed stereo RCA
1 x variable stereo RCA
1 x optical TOSLINK
1 x 1/4" / 6.35 mm headphone (front)
Other Connectors    1 x Ethernet LAN
2 x Bluetooth/Wi-Fi antennas
1 x 1/8" / 3.5 mm IR control out
Optical Output    -21 to -15 dBm
USB Formats    WMA: 32, 44.1, 48 kHz, 48 to 192 kbps
MP3: 32, 44.1, 48 kHz, 32 to 320 kbps
WAV: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
MPEG-4 AAC, M4A: 32, 44.1, 48 kHz, 16 to 320 kbps
FLAC: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
Apple Lossless M4A: 32, 44.1, 48, 88.2, 96, 192 kHz
DSD, DSF, DFF: 2.8, 5.6 MHz
Unbalanced Output Level    Fixed: 2.2 V RMS
Variable, Maximum: 4.5 V RMS
Headphone Output    30 mW, 32 ohms
Physical Specifications
Operating Temperature    41 to 95°F / 5 to 35°C
Power Requirements    240 VAC, 50/60 Hz
Power Consumption    Operational: 18 W
Standby: 0.3 W
Network Standby: 4 W
Dimensions    Including Protrusions: 17.09 x 6.69 x 12.28" / 434 x 170 x 312 mm
Weight    8.6 lb / 3.9 kg
Packaging Info
Package Weight    11.5 lb
Box Dimensions (LxWxH)    20.4 x 15.1 x 7.9"
