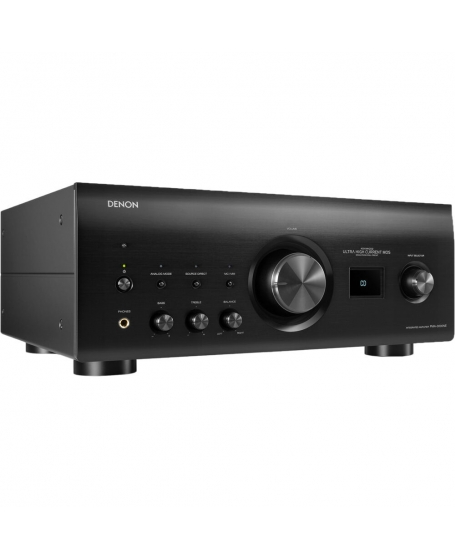

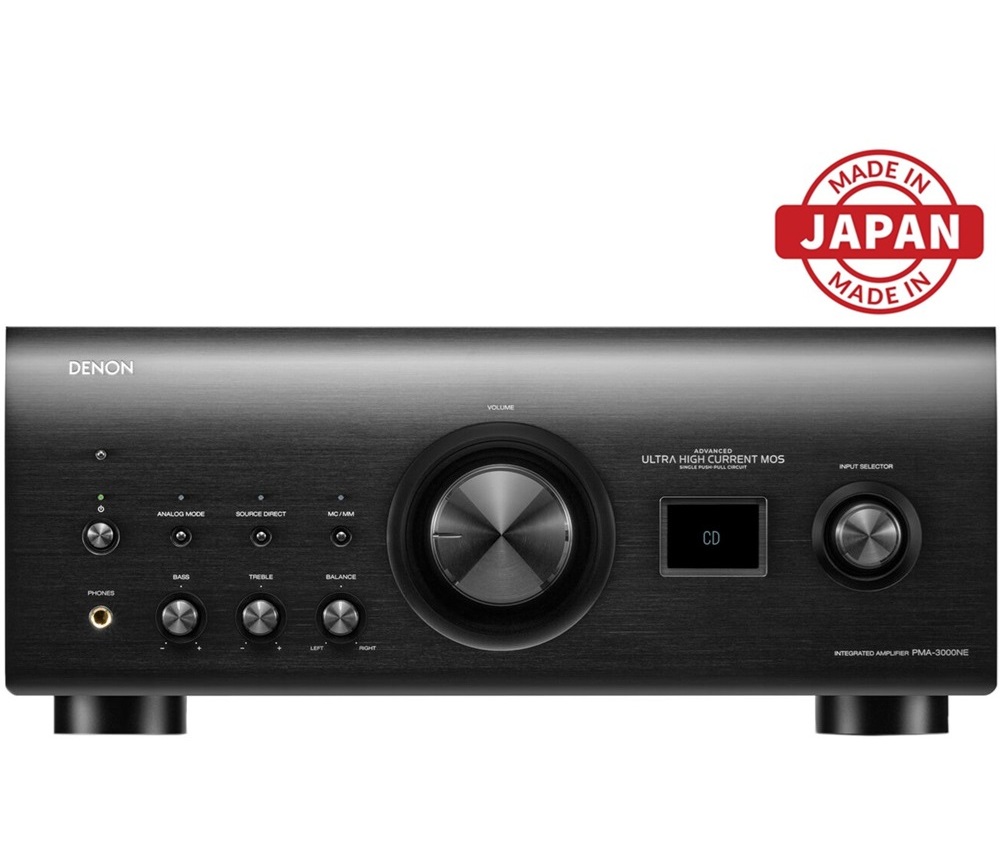

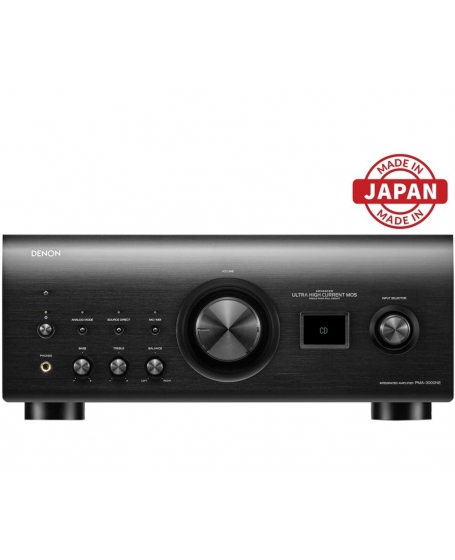

PMA-3000NE

2-channel 160W integrated amplifier with MM/MC phono stage

The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.

• 2 channels
• 160 watts per channel
• MM/MC phono stage
• Ultra AL32 Processing
• Optical, coaxial, and USB digital connections
• Analog mode

Audio excellence, redefined

With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favorite music with clarity and precision.

Faithful to any sound source

Drives even the most demanding speakers

A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.

Seamlessly integrate high-resolution digital audio

Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.

Unlock your vinyl collection’s full potential

The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.

PMA-3000NE

Fidelity, form, and function

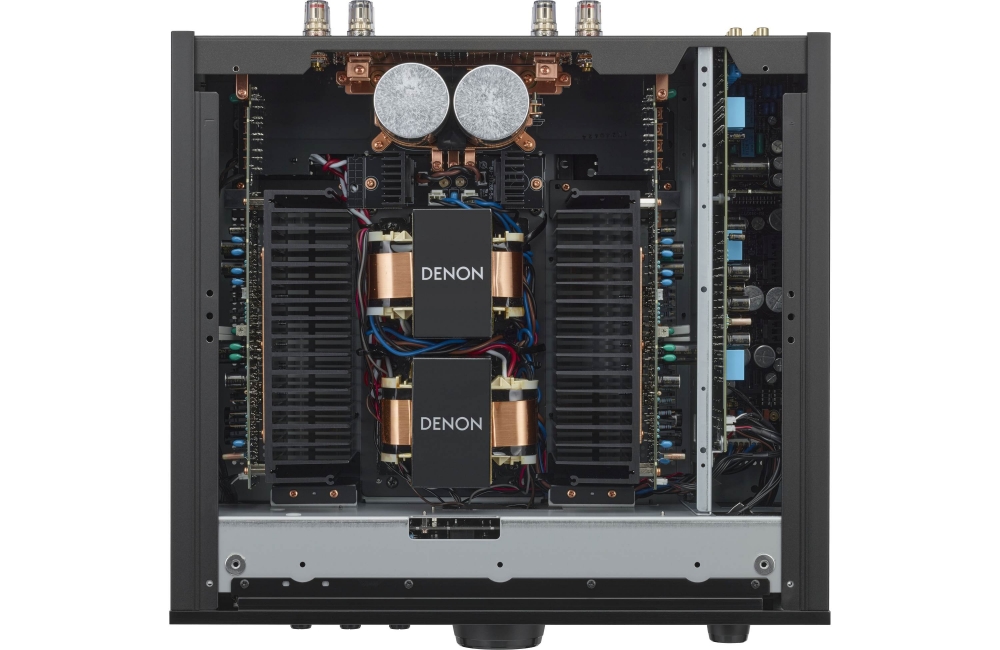

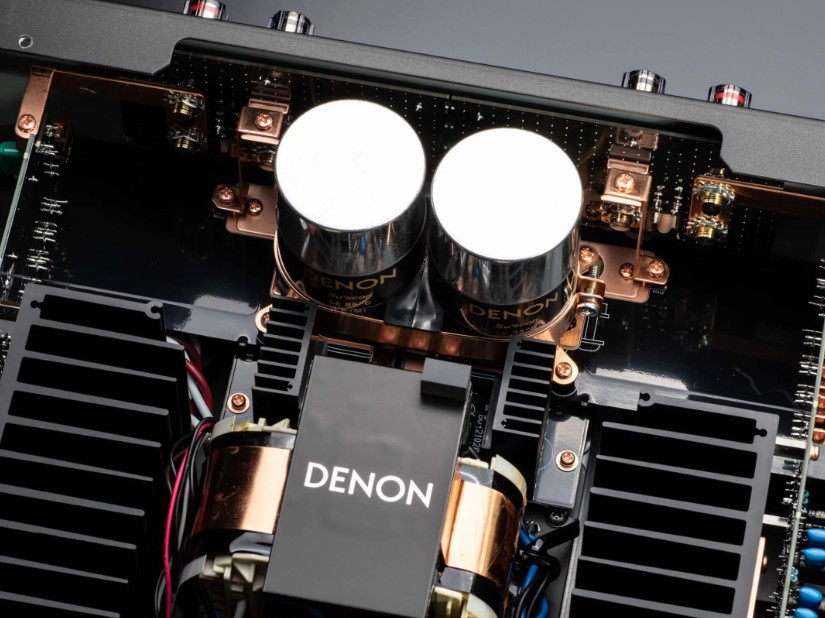

Advanced amplifier design

The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its Advance UHC-MOS Single Push-pull Circuit and differential 1-stage amplifier drive demanding speakers with exceptional clarity and linearity.

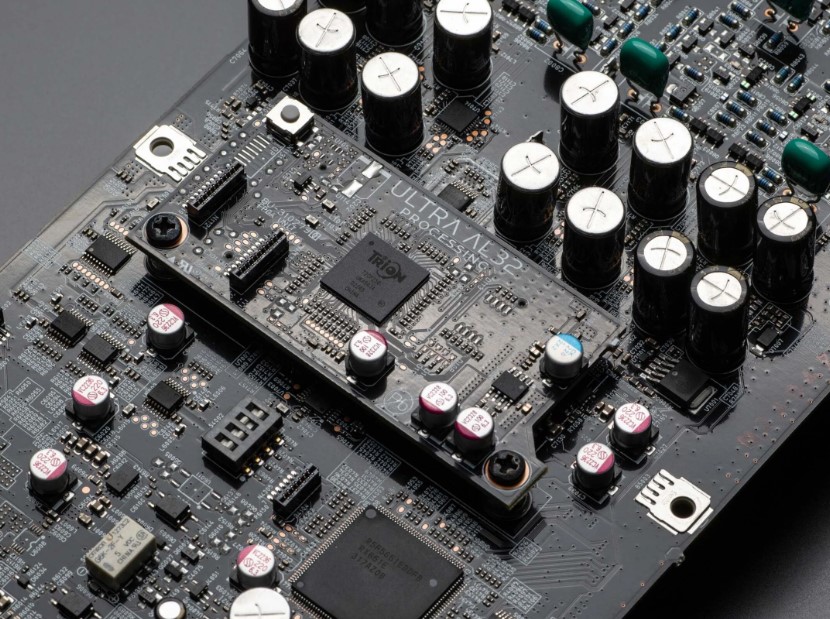

Ultra AL32 Processing

Denon's Ultra AL32 Processing uses interpolation algorithms to produce highresolution output. Supporting input signals up to 384kHz/32-bit, it upsamples for smoother waveforms and improved sound reproduction.

High-performance MM/MC photo stage

The PMA-3000NE's phono stage supports both MM and MC cartridges for truest vinyl reproduction in any setup. A high-gain design and “simple and straight” circuitry minimize distortion for pure, detailed sound.

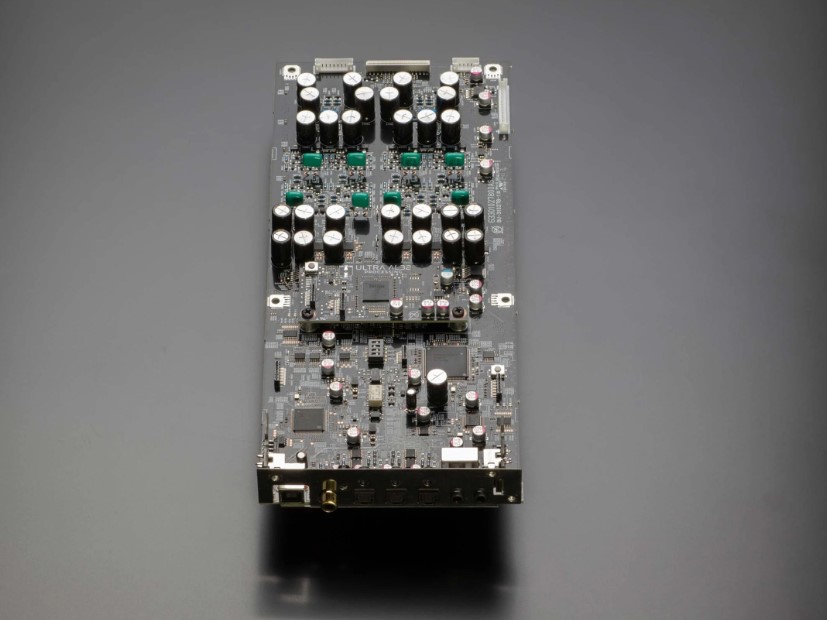

Digital audio inputs

The PMA-3000NE’s versatile digital connections, including optical, coaxial, and USB Type B, support up to 384kHz/32-bit and 11.2MHz DSD audio.

Analog mode

Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.

Denon Signature Sound

Sonic Innovation
For the Past 110 Years

For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

Tailor your sound with complete connectivity & control

Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.

Specifications

• Rated Output Power80W + 80W
  (8 ohm,20 Hz-20 kHz,THD 0.07%)

  160W + 160W
  (4 ohm, 1 kHz, THD 0.7%)
• Total Harmonic distortion0.01 % (Rated output: –3 dB),
  8 ohm/ohms, 1 kHz
• Input Sensitivity: Phono inputMM: 2.5 mV / 47 kohm
  MC: 200 μV / 100 ohm
• Input Sensitivity:CD/LINE/RECORDER135 mV / 19 kohm
• Input Sensitivity: Power Amp input1.0V / 15 kohm (EXT. PRE)
• Signal to Noise RatioPHONO (MM): 89 dB
  PHONO (MC): 74 dB
  CD: 107 dB
• Power Consumption400W
• Power Consumption at Standby0.2W TV autoplay off

Audio Features

• Power Amplifier CircuitNew UHC-MOS
  Single Push Pull (7)
• Preamplifier CircuitVariable Gain Preamplifier (OP AMP)
• Bass / Treble / Mid / Balance ControlYes / Yes / No / Yes
• Source DirectYes
• Analog Amp ModeYes (button on front panel)
• DAC CircuitES9018K2M × 4
• Digital ProcessingUltra AL32 Processing
• DAC Master Clock DesignYes
• Asyncronous mode (for USB-B input)

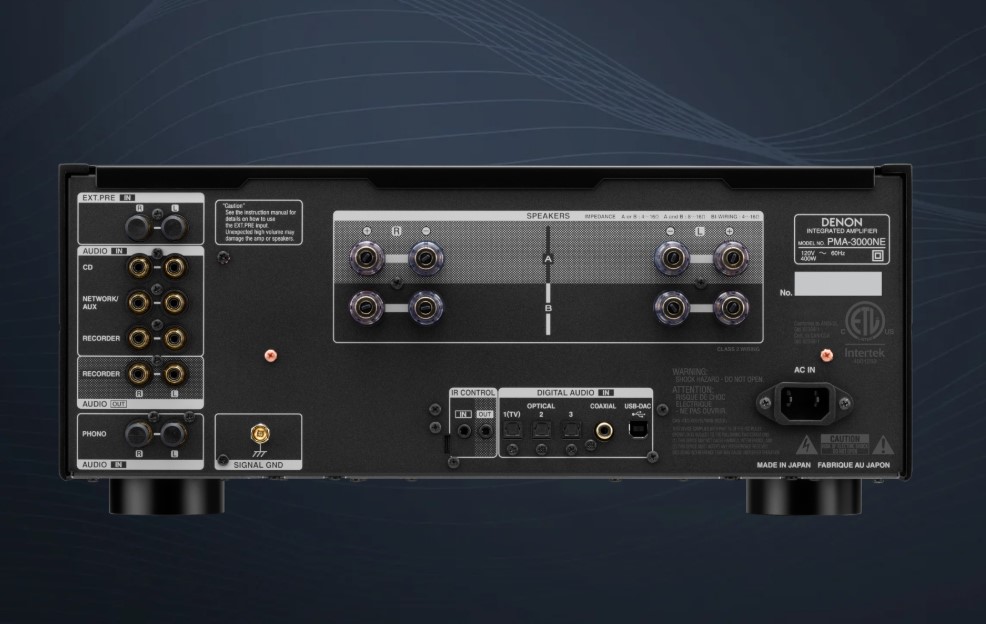

Connectivity

• Phono InputYes (MM / MC)
  *default = MM
• Analog Input (include Phono) / REC Out (RCA)4/1 (Gold Plated)
  (Brass Machining type for all CD/PHONO/AUX/RECORDER)
• Optical input / output
  (Maximum Support)3 / 0 (192 kHz/24-bit)
• Coaxial input / output
  (Maximum Support)1 / 0 (192 kHz/24-bit)
• Speaker TerminalAVR-A1H type Gold Plated w/Cover
• Headphone Output1
  (Turns off the speaker automatically when headphone is inserted)
• Remote ControlYes
• Remote Control Bus TerminalYes (mini)
• Wi-FiNo
• HEOSNo
• USB B (USB DAC)1 (Rear)
• PCM Sample Rate / Resolution~384 kHz/32-bit
• DSD Audio Streaming

General

• Unit (W × H × D)434 × 182 × 443 mm
• Net Weight24.6 kg / 54.2 lbs
• Panel Cover Black
•
