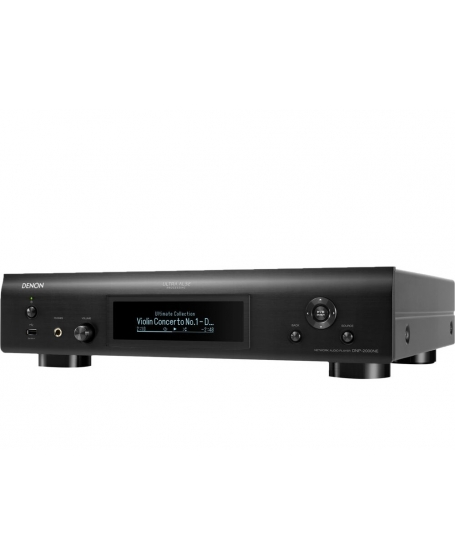

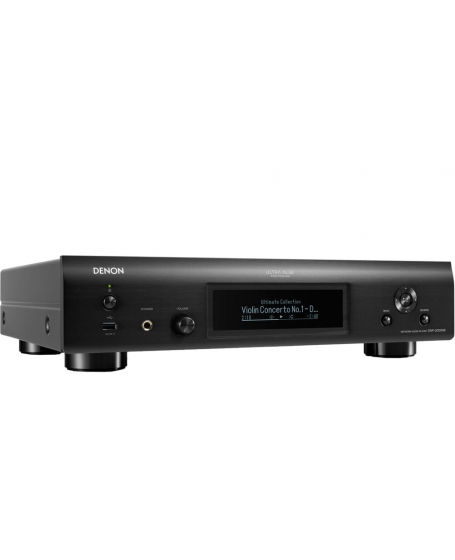

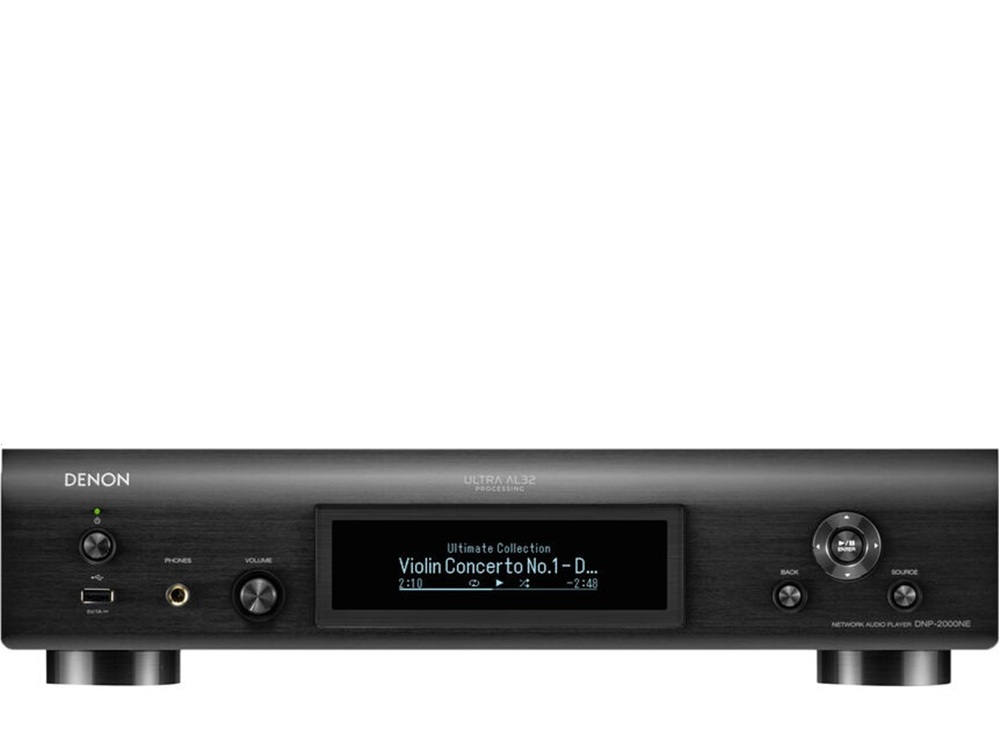

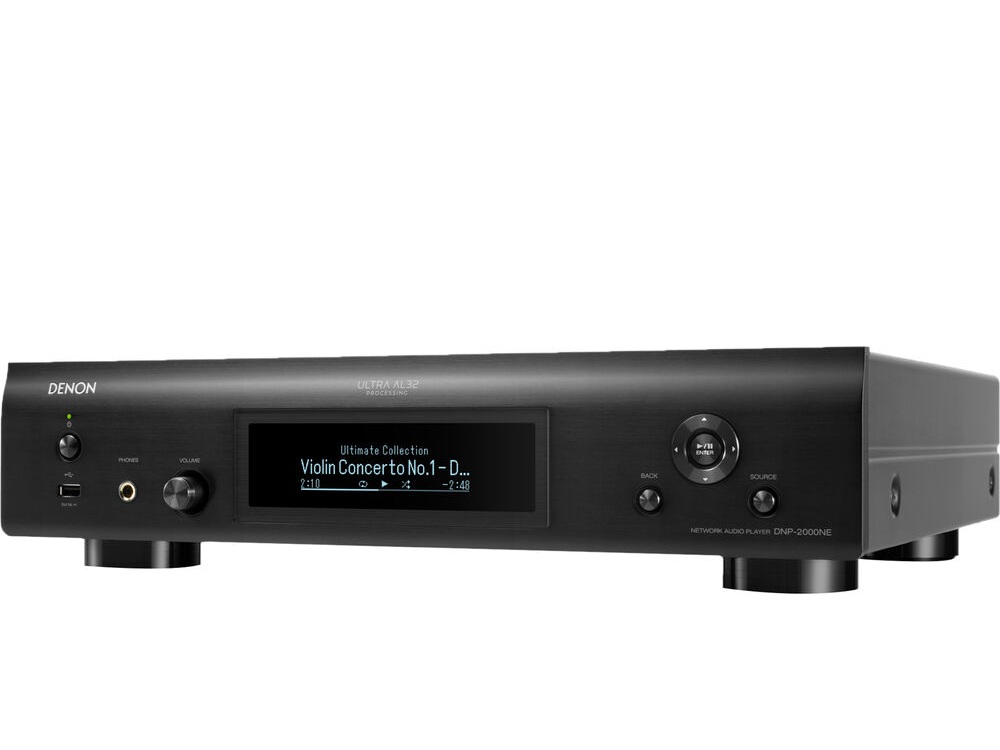

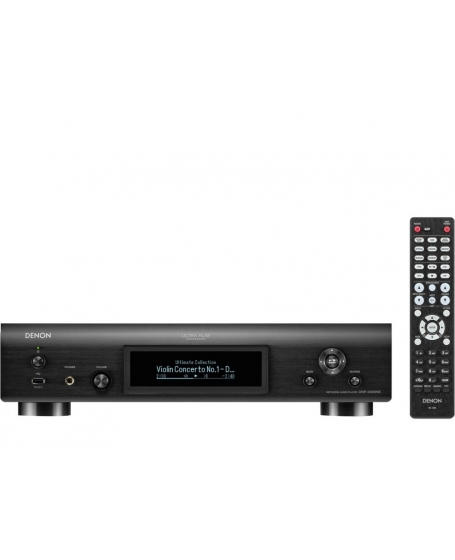

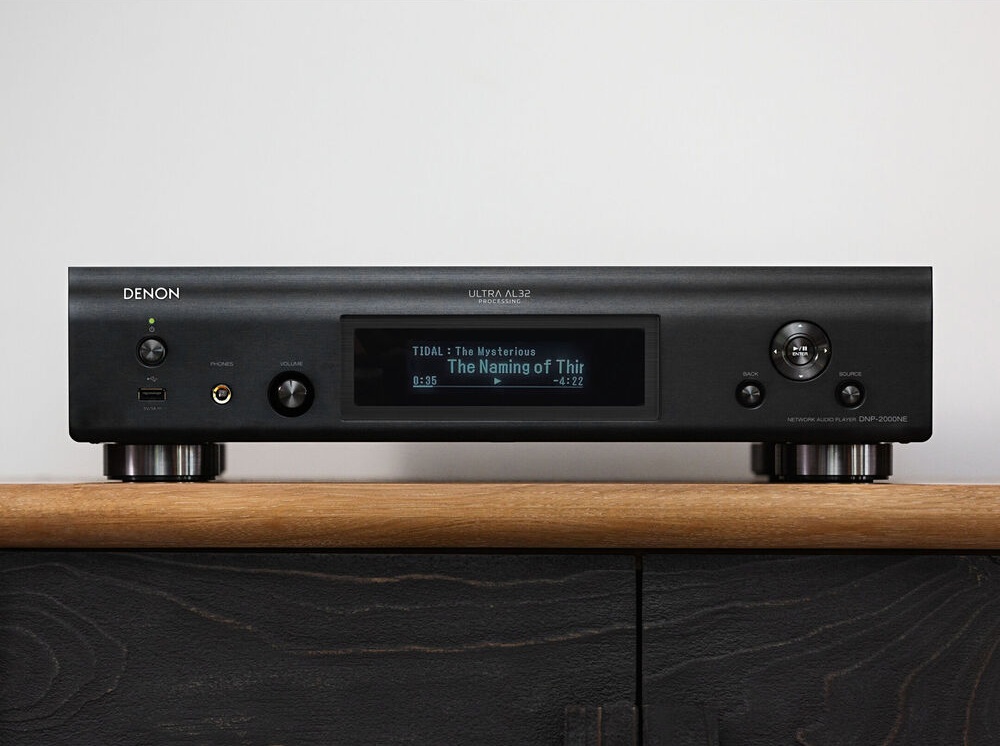

DNP-2000NE

High-Resolution Network Audio Player with HEOS® Built-In.

Upgrade any existing audio system to play most digital audio sources—including your television—using HDMI ARC for an improved audio experience. The DNP-2000NE also connects to your home network, so you can enjoy your favorite music services using HEOS® Built-in.

• Ultra AL32 Processing
• DAC master clock
• HEOS® Built-in
• Amazon Alexa voice control
• Google Assistant voice control
• AirPlay 2
• Apple Siri voice control

Universal playback of digital music files

Rich connectivity

High-quality audio from your digital and streaming sources.

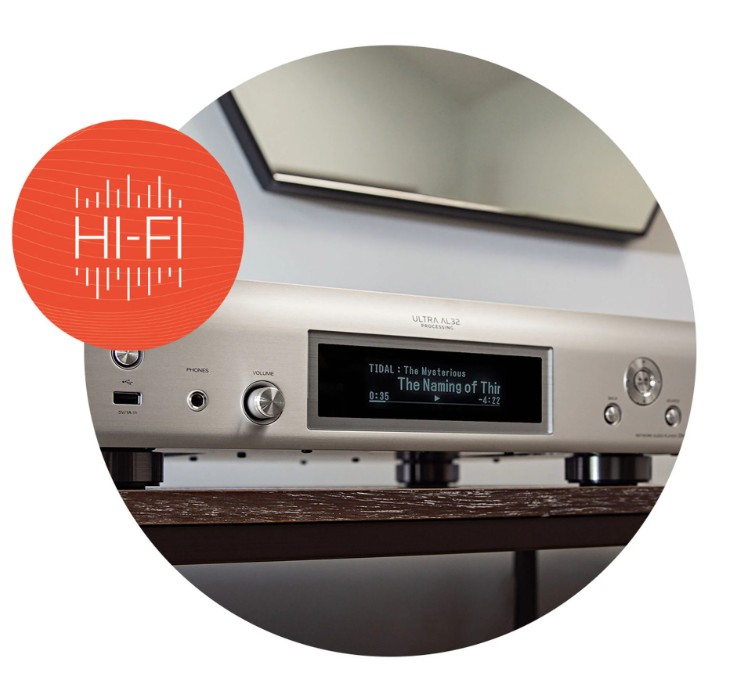

Faithful audio reproduction

Ultra AL32 Processing delivers the richly detailed sound the artist intended.

Connect directly to your TV

Simple one-cable connection with any compatible HDMI ARC television.

High-resolution audio streamer with HEOS® Built-in.

Built-in streaming

HEOS® Built-in provides access to music streaming services and Airplay 2.

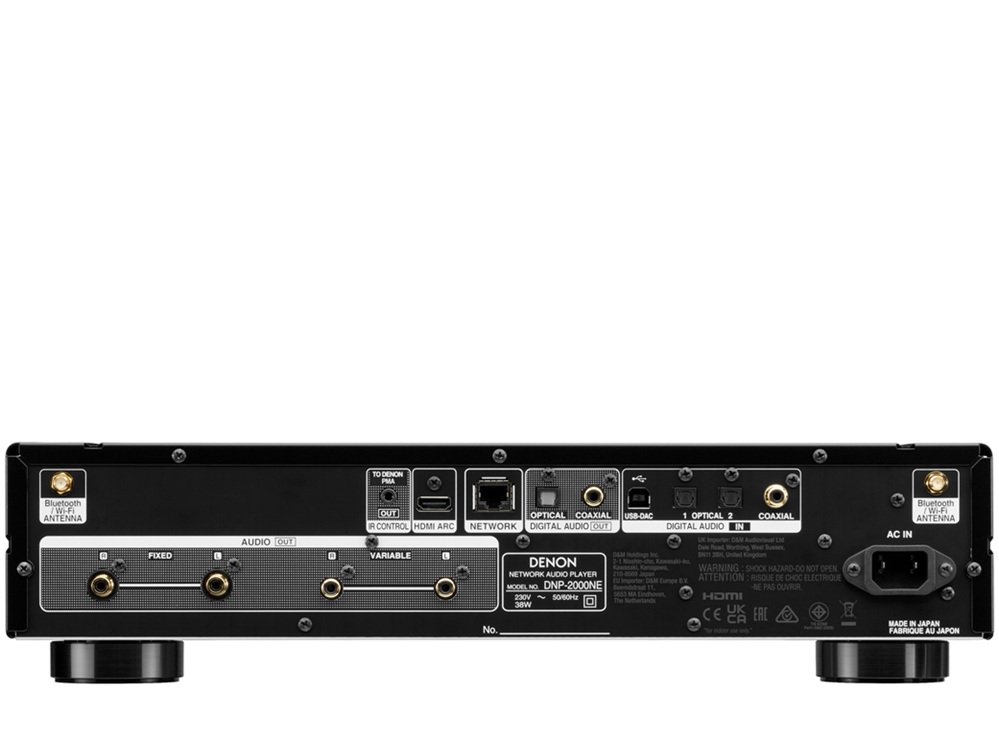

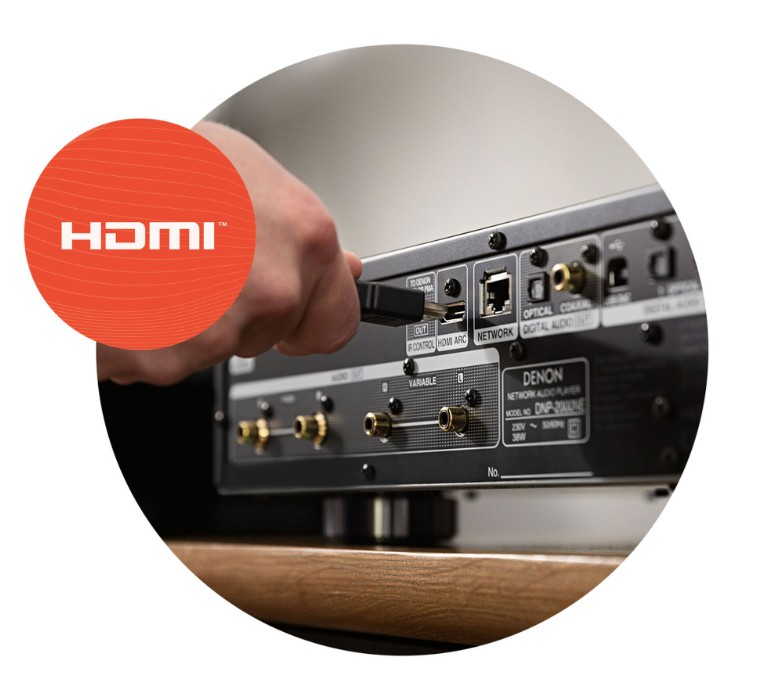

HDMI ARC

Simple, single-cable connection to your TV via HDMI ARC input. Also allows direct volume control from the television or amplifier remote.

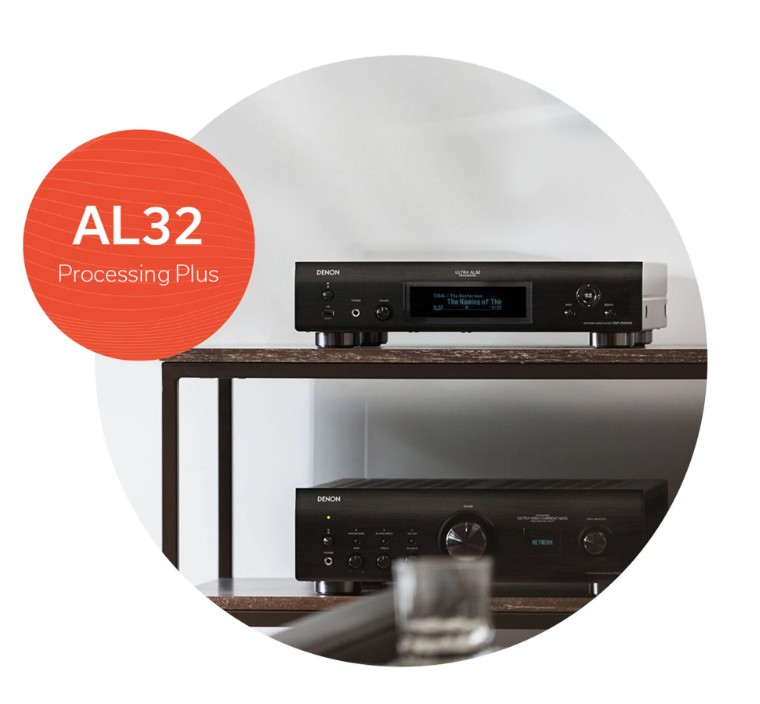

Ultra AL32 Processing

Experience audio beautifully faithful to the original sound. Ultra AL32 Processing algorithms restore information that was lost during digital recording.

Quad DAC configuration

Using a quad DAC configuration enables an improved, more powerful spatial expression of the soundstage, decreasing the low noise level and total harmonic distortion.

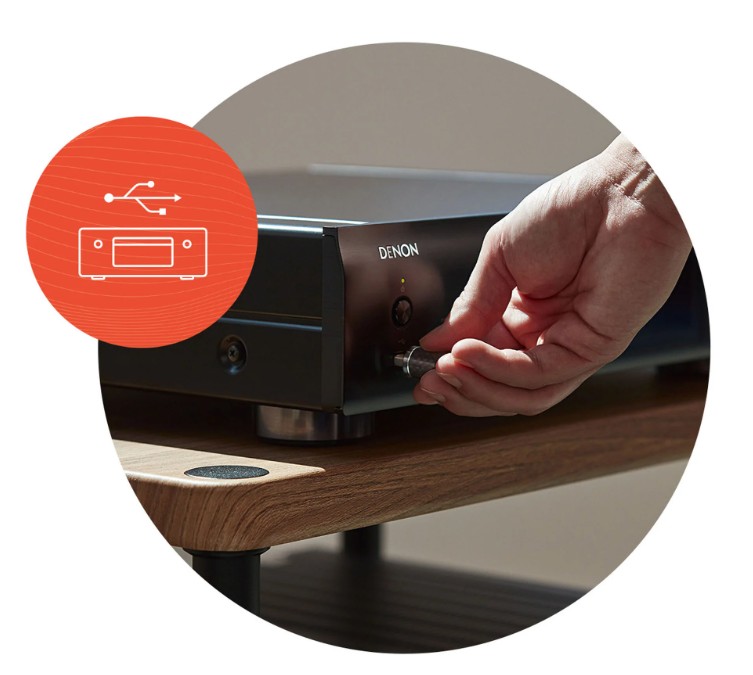

USB-DAC

USB-DAC input allows connection to a computer to access high-resolution audio files, supporting hi-res up to 11.2-MHz DSD and 384-kHz/32-bit PCM input signals.

High-grade audio components

All audio components have been carefully selected and optimized for the best sound quality.

Isolation system

DNP-200NE’s analog and digital circuit boards are isolated from each other. An independent power line from the transformer protects the analog circuit from interference and noise.

BT Re-Broadcast

Bluetooth® re-broadcast offers customers a convenient and wire-free way to enjoy their favorite audio content using a pair of wireless Bluetooth® headphones or portable speaker within the range of DNP-2000NE.

Sonic Innovation
For the Past 110 Years

For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

Technical Information
General
Unit (W x H x D mm) 434 x 107 x 421
(*includes antenna)
Cabinet Size 434 x 107 x 374
Net Weight 9.7 kg
Packaging Dimensions
(W x H x D mm) 548 x 210 x 520
Packaging Gross
Weight 12.0 kg
Carton Color 2 Color
Cushion/Packing 4 Separate/Sheet
Panel Color Silver/Black/Gray
Front (Center) Panel Aluminum
Side Cover
Steel (SECC) t1.0mm
Top Cover
Bottom Layer/Bottom
Plate Double
Volume Rotary Knob Aluminum
Function Button Aluminum
Cursor/Enter/Function Aluminum
Power Button Aluminum
Audio (Lineout)
Frequency Response DSD: 2 Hz–50 kHz (-3dB)
PCM(44.1 kHz): 2 Hz–20 kHz
Harmonic Distortion DSD: 0.0006%
PCM: 0.0008% (24 bit)
S/N DSD: 120dB
PCM: 118dB
Dynamic Range DSD: 112dB
PCM: 118dB
Line Output Level 2.2Vrms
Variable Output Level 4.5Vrms
Headphone Output Level 150mW/32 ohms high gain

Power Consumption
Power Consumption 38W
at Standby 0.2W
at Network Control On
(all of Bluetooth, Ethernet,
Wi-Fi, USB)
Less than 2W
Analog Audio
Output Circuit Minimum signal path
Power Transformer EI transformer
H/P Amp Gain Setting Yes (Low/Mid/High)
Digital Audio
DAC Circuit 384 kHz/32 bit
(ES9018K2M) x4
Digital Filter Fixed
Digital Processing ULTRA AL32
Processing
Jitter Reducer Yes
DAC Master Clock Design
Yes
(Does not support
network playback)
Asynchronous Mode (for USB B
input) Yes
Isolator (for USB B input) Yes (and
digital inputs)
Function
HEOS Control on Front Panel Yes
HEOS Favorites Call/Add Yes
Setup on Front Panel Yes
Setup Assistant Yes
TV Auto-Play
(opt/coax digital-in
detector)
Yes
Last Function Memory Yes
Volume Limit Yes
Sleep Timer Yes
Auto Standby Mode Yes
KPI (for usage data) Yes
Accessories
Quick Start Guide Yes

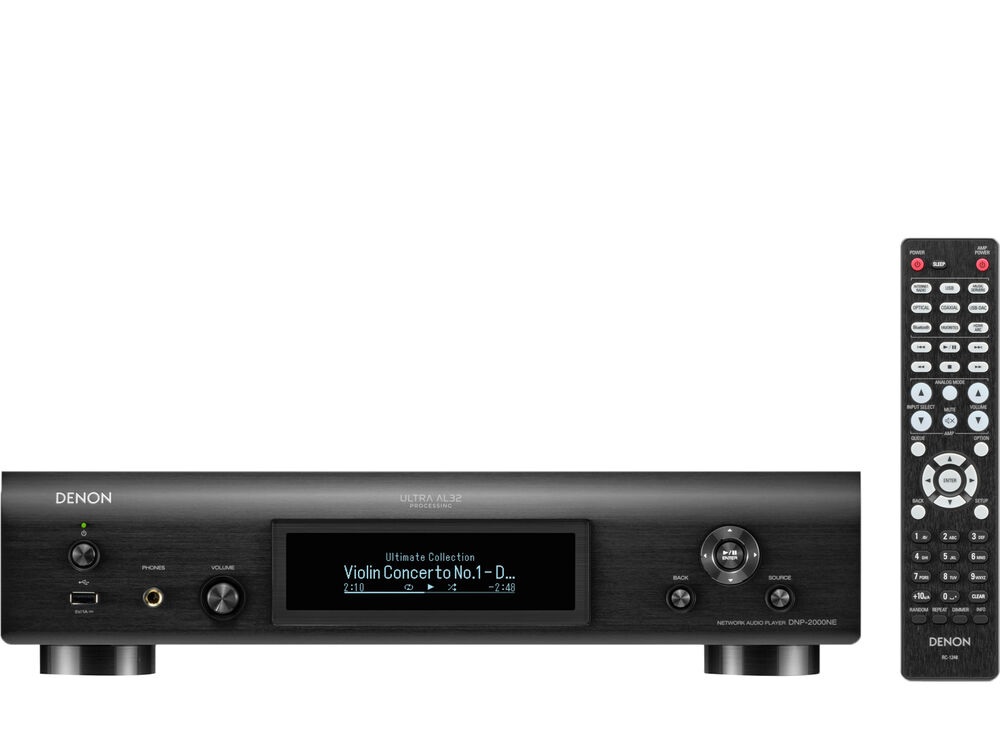

Remote Control Yes
Battery Yes (AAA x2)
Power Cord Yes
Stereo RCA cable x 1
IR control cable x 1

Network
Engine (module or main device) HEOS
Ethernet Yes
Wi-Fi 2.4 GHz(11b/g/n)
5 GHz (11a/n/ac)
Wi-Fi Antenna 2 external
detachable antenna
WPS (Wi-Fi protected setup) PBC only
Wi-Fi Sharing Yes (WAC)
WMM Yes
OFF mode Yes
Wireless Multiroom Audio
HEOS Yes
Apple AirPlay2 Yes
Supported Audio File
MP3 Yes
WMA Yes
AAC Yes
WAV Yes (~192 kHz/24
bit)
FLAC Yes (~192 kHz/24
bit)
ALAC Yes (~192 kHz/24
bit)
DSD (DIFF/DSF) Yes (~5.6 MHz)
DSD Native Playback Yes
Gapless Playback Yes (WAV, FLAC,
ALAC, AIFF, DSD)
Internet Radio Yes (TuneIn)
Online Music Service
Pandora Yes (NA)
Sirius XM Internet Radio Yes (NA)
Spotify Connect Yes
Deezer Premium/Deezer HiFi Yes / - (NA/EU)
QQ MUSIC Yes (China)
SoundCloud Yes
Tidal Yes (NA/EU)
Amazon Music Unlimited/Amazon
Music HD/Prime Music Yes/Yes/Yes
Napster Yes
iHeartRadio Yes (NA)
Mood Mix Yes (NA/EU)
AWA Yes (Japan)
Other
AirPlay Yes (AirPlay 2)
Roon Certificaton Yes
Firmware Update/Charged Upgrade Yes / -
