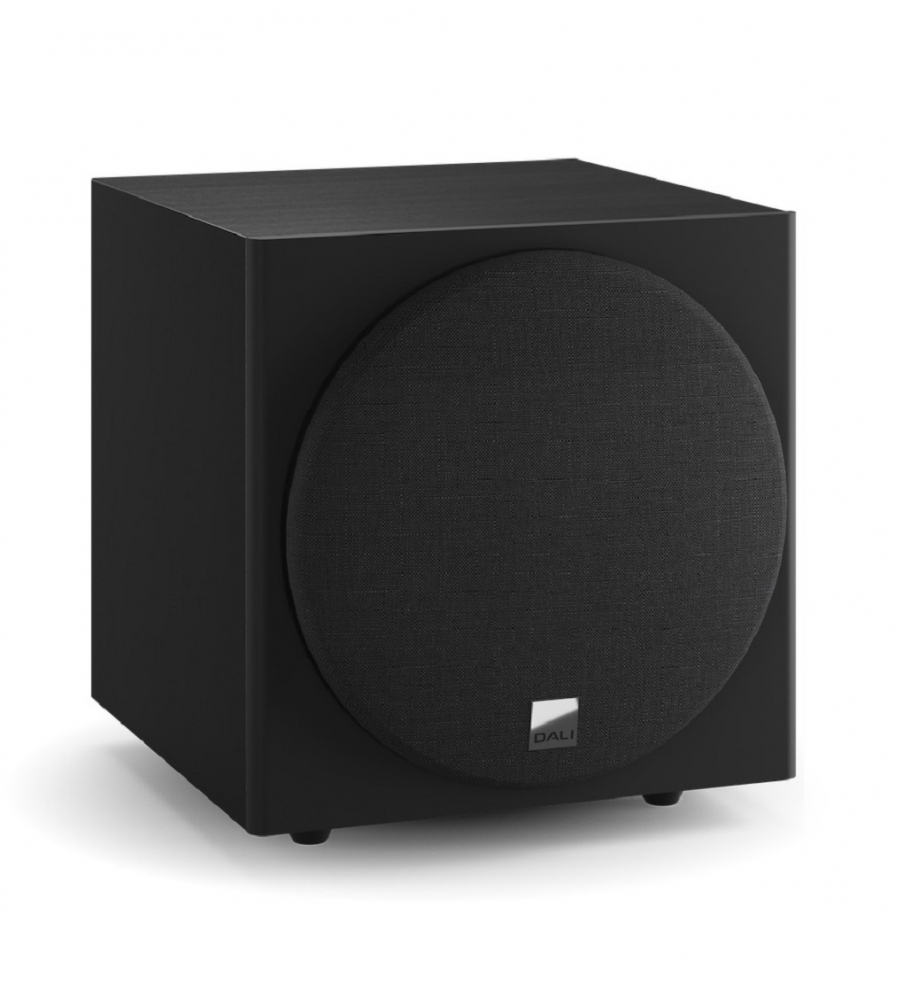

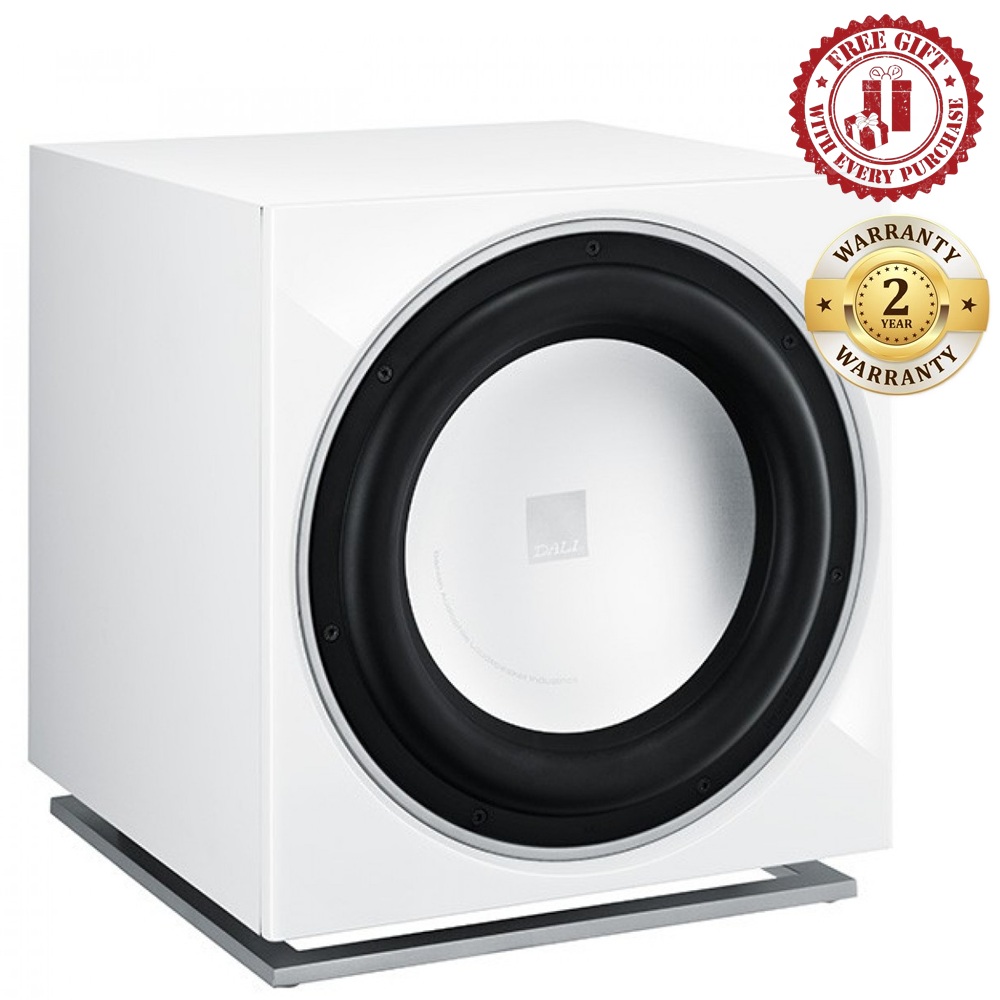

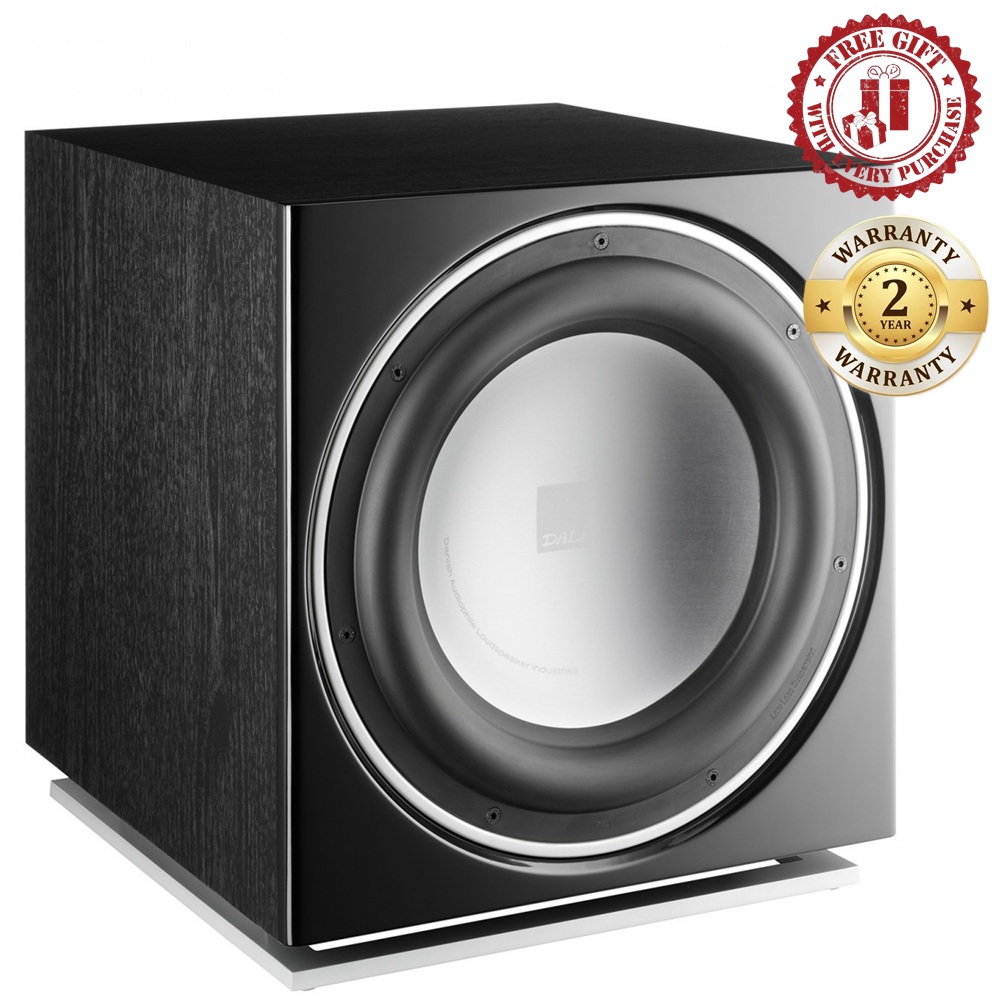

Dali Sub E-12F 12" Powered Subwoofer

DALI SUB E-12 F

The DALI SUB E-12 F is an elegant subwoofer strong enough for most purposes, whether there is music or movies on the program. The SUB E-12 features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior.

ALUMINIUM BASE

Giving the illusion that the subwoofer is floating on air, the elegant aluminium base decouples the subwoofer from the floor and integrate seamlessly to the room.

ELEGANT AND SIMPLE DESIGN

The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.

HIGH-YIELD AMPLIFIER

All amplifiers in DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.

FLEXIBLE CONNECTIVITY

All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.

PRODUCT DETAILS

The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.

The SUB E-12 features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil. All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

The DALI SUB E-12 F is recommended as compliment to the OPTICON, ZENSOR and SPEKTOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.

DALI SUB E-12 F SPECS
Product series    SUBWOOFERS
Frequency Range (+/-3 dB) [Hz]    28 - 190
Maximum SPL [dB]    112
Crossover Frequency [Hz]    40 - 120
Low frequency driver, Quantity    1 x 12" long stroke
Low frequency driver, Diaphragm type    Polymere Aluminimum
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    36.0
Max. Amplifier Power Output [RMS watt]    220
Continous IEC Power Output [RMS watt]    170
Input Impedance [ohms]    25k
Connection Input    Mono Line Level (LFE)
RCA
Stereo Line Level (low pass filtered)
Magnetic Shielding    No
Recommended Placement    Floor
Recommended Distance From Wall [cm]    > 5
Functions    Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off Switch
Volume (Gain)
Max. Power Consumption [W]    250
Dimensions With Base (HxWxD) [mm]    370 x 340 x 380
Accessories Included    Manual
Rubber Bumpers
Spikes M6
Weight [kg]    14.7
