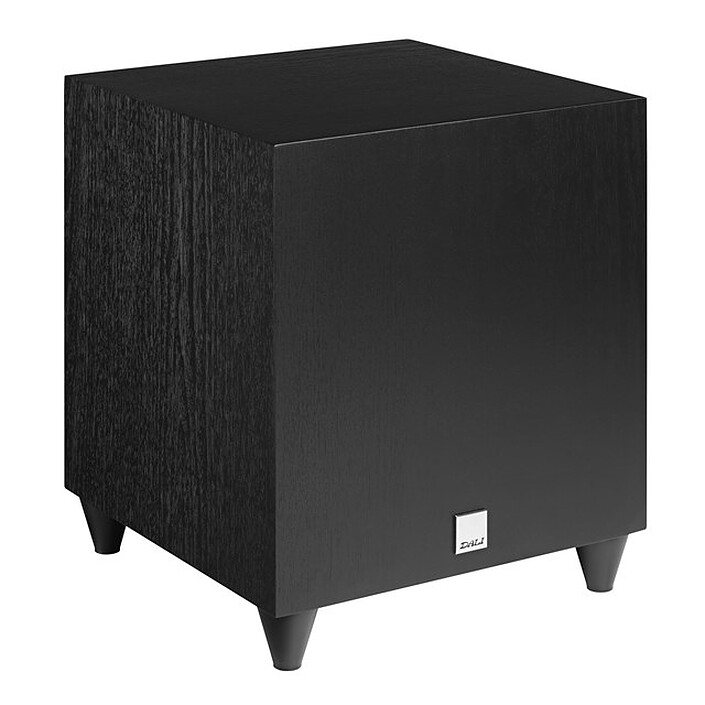

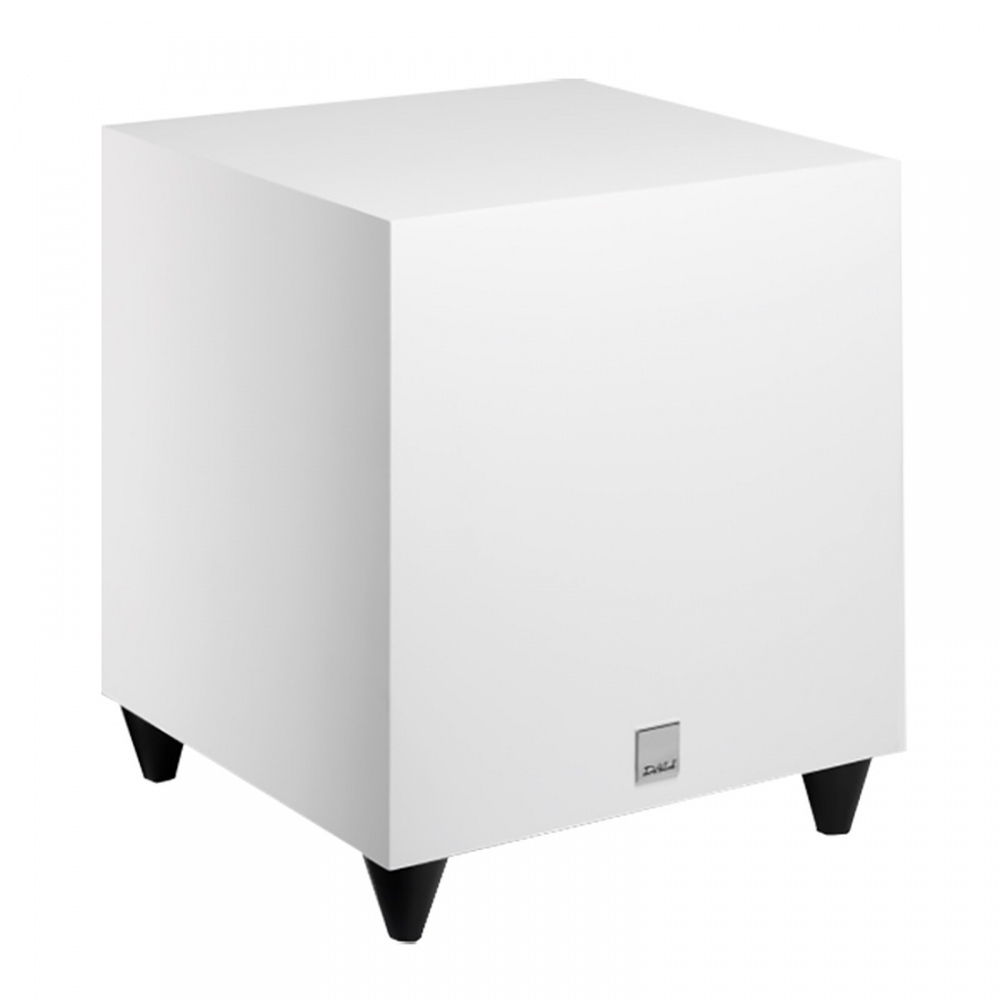

Dali Sub C-8 D 8" Powered Subwoofer

DALI SUB C-8 D

Unlike some subwoofers the DALI SUB C-8 D has been engineered to perform equally well on both music and movies. It is very important to us that a subwoofer can render a performance true to the input signal. Though featuring a 8” down-firing woofer, the SUB C-8 D is everything but a ‘boombox’.

HIGH-YIELD AMPLIFIER

All amplifiers in DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.

FLEXIBLE CONNECTIVITY

All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.

ELEGANT AND SIMPLE DESIGN

The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.

PRODUCT DETAILS

Unlike some subwoofers the DALI SUB C-8 D has been engineered to perform equally well with both music and movies. It is very important to us that a subwoofer can render a performance true to the input signal. Therefore a DALI subwoofer is everything but a ‘boombox’.

Placing a subwoofer is a very large part of creating the perfect audio reproduction. We recommend placing the SUB C-8 D in a corner or if that is not possible alongside a wall. This will maximise the bass output and the distribution around the room. The compact size of the SUB C-8 D makes placing it correctly much easier than many larger subwoofers. DALI recommend using the SUB C-8 D with the ZENSOR and SPEKTOR series.

Over the years our engineers have developed a set of sound design principles. Today these are applied in the creation of any DALI speaker. Naturally our subwoofers must be able to enter into any setup without sacrificing the purpose of providing wide dispersion, time coherence and low-loss performance. Therefore the DALI SUB C-8 D will feel equally at home in a movie focused surround setup as well as a compact stereo setup meant for mainly musical enjoyment.

DALI SUB C-8 D SPECS
Product series    SUBWOOFERS
Frequency Range (+/-3 dB) [Hz]    33 - 200
Maximum SPL [dB]    109
Crossover Frequency [Hz]    40 - 120
Low frequency driver, Quantity    1 x 8" long stroke
Low frequency driver, Diaphragm type    Paper Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    49.0
Max. Amplifier Power Output [RMS watt]    220
Continous IEC Power Output [RMS watt]    170
Input Impedance [ohms]    25k
Connection Input    Mono (LFE)
RCA
Stereo (low-pass filtered)
Magnetic Shielding    No
Recommended Placement    Floor
Recommended Distance From Wall [cm]    10 - 30

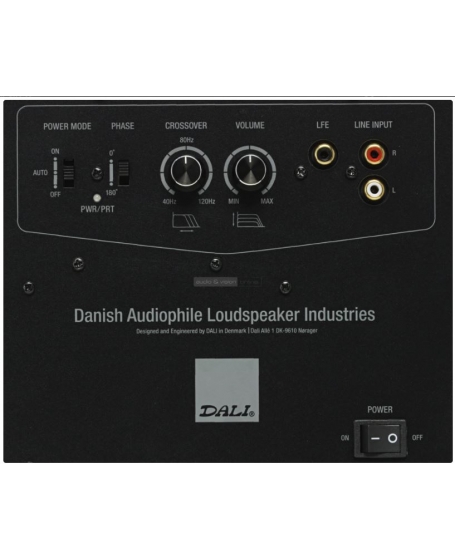

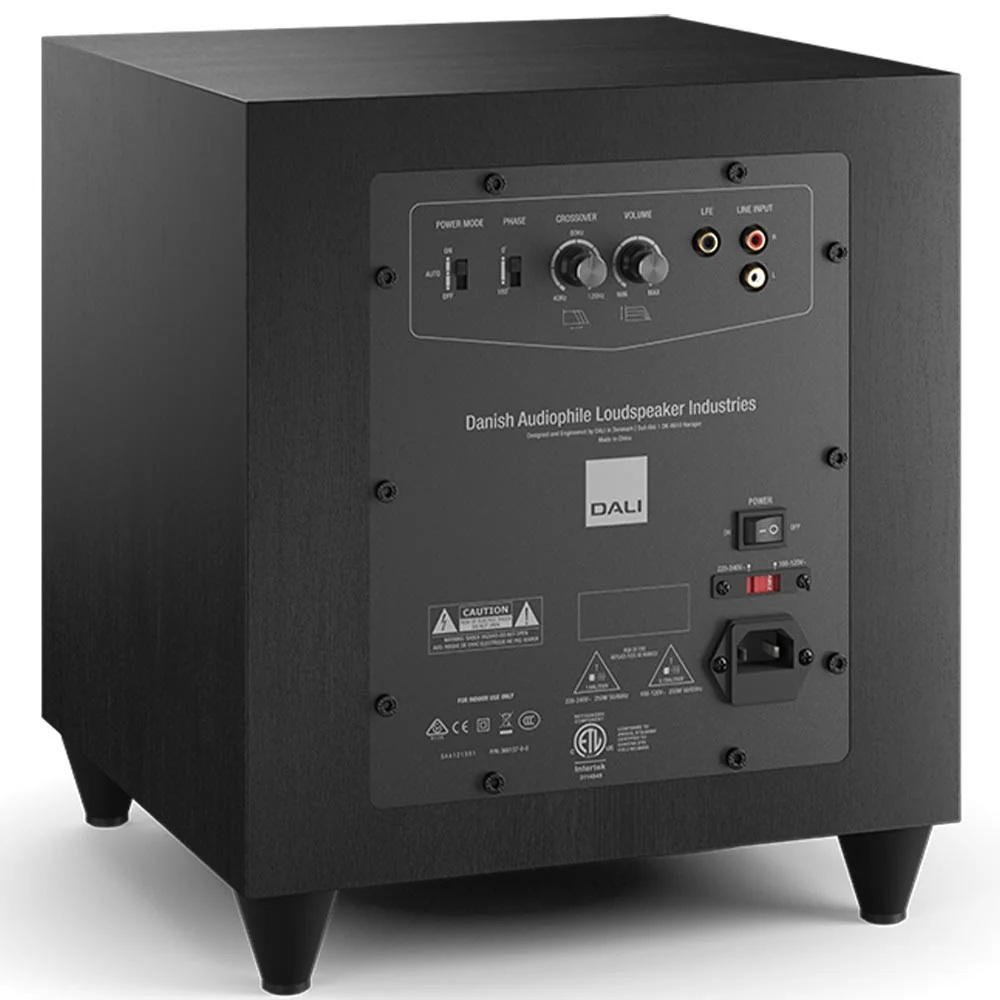

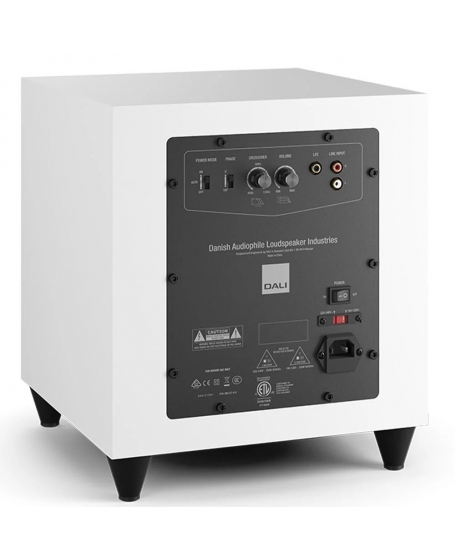

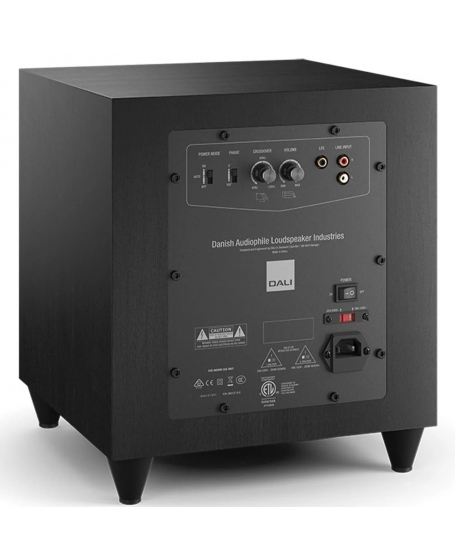

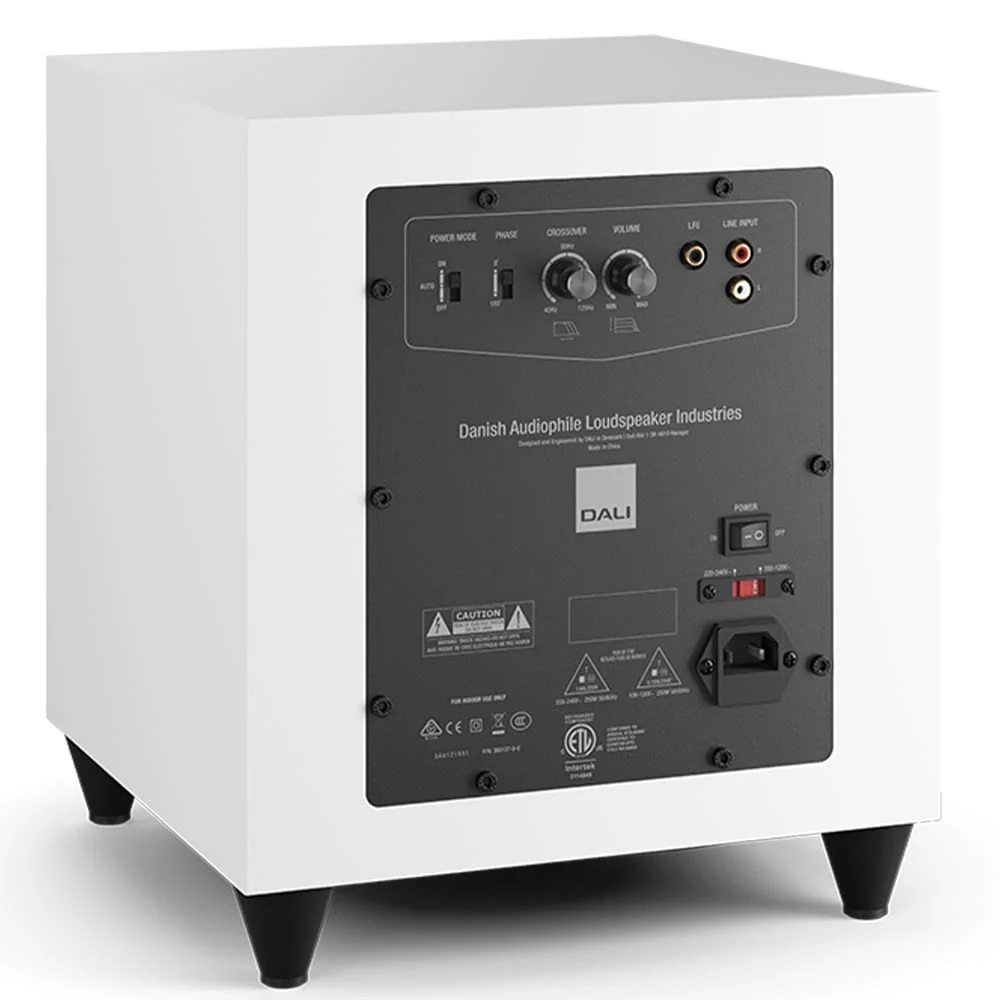

Functions    Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off Switch
Volume (Gain)
Max. Power Consumption [W]    250
Standby Power Consumption [W]    0.4
Idle Power Consumption[W]    10.4
Dimensions With Base (HxWxD) [mm]    335 x 295 x 310
Accessories Included    Manual
Weight [kg]    10.4
