Dali Phantom E-60 Atmos Ceiling Speaker (Pair)

DALI PHANTOM E-60

The DALI PHANTOM E-60 is the perfect all-around speaker. It is not too big and therefore still easy to place, but it is big enough to deliver a full and complete audio experience. The E-60 is equipped with a 6½" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.

FLEXIBILITY IN FUNCTION

The PHANTOM E-series are easy to place anywhere in any room, and will even work perfectly off-axis in challenging situations and environments due to two audio settings used for adjusting the performance of the speaker.

INVISIBLE DESIGN

The very thin magnetic front grilles integrates almost seamlessly into any home environment.

EASY INSTALLATION

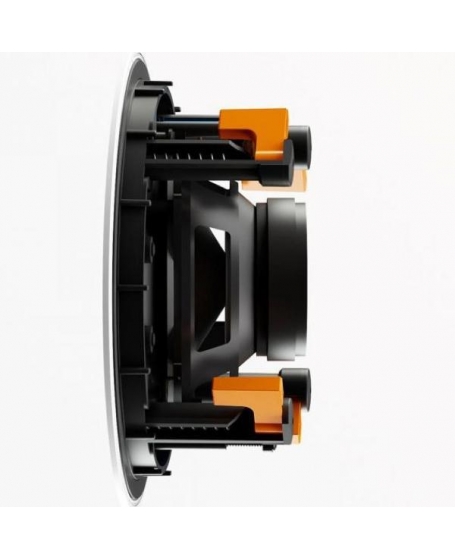

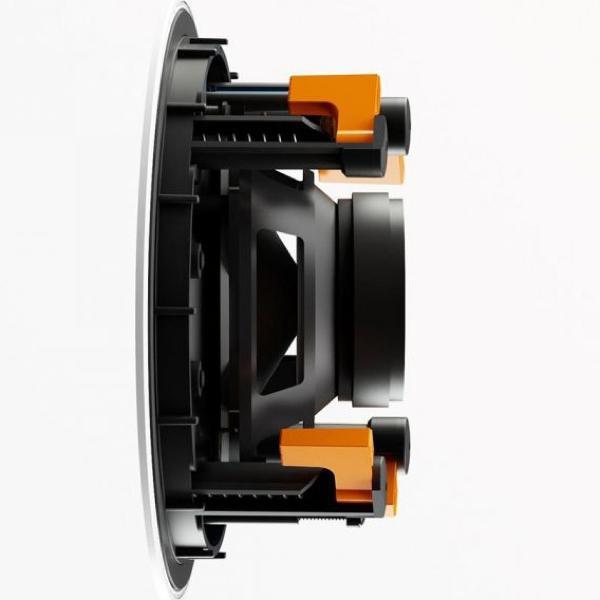

The dogleg mounting system makes the install process an easy one-step action simply by tightning the dedicated screws to swing out the dogleg brackets.

WIDE DISPERSION

All speakers by DALI are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use in install speakers, since they are always mounted flush against either a wall or ceiling.

PRODUCT DETAILS

This model is the perfect all-around loudspeaker. Its compact size makes it easy to place, but it is still big enough to deliver a full and complete audio experience. Use it for a stereo setup in a kitchen or family room, or to complete a home cinema in a larger room as side or rear loudspeakers.

The PHANTOM E series

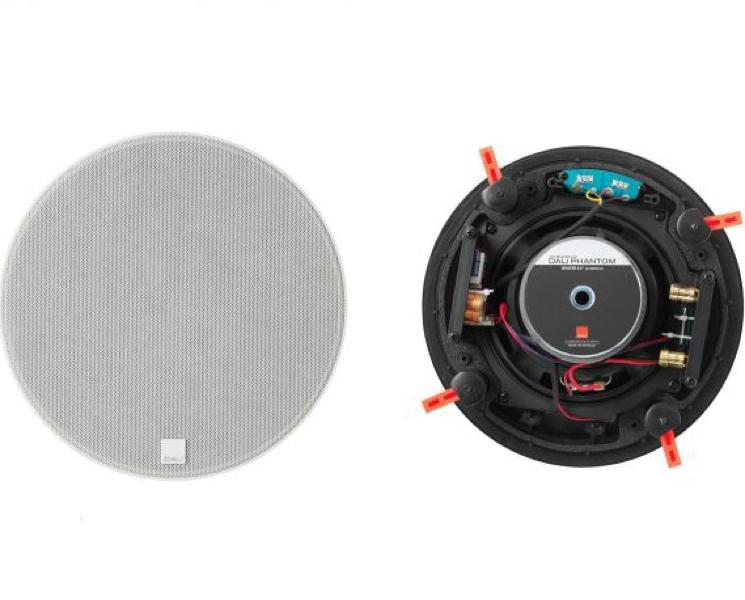

The DALI PHANTOM E-60 is designed for optimum in-ceiling use, but will also work if mounted in-wall. It is all about true hi-fi sound, versatility, and flexibility. The compact construction and the easy-to-use compass positioning guide makes it straight forward to place the speaker for the optimum sound experience. Two discreet switches offer audio adjustment options to ensure that the listener gets the most from the speakers, even in rooms that traditionally are difficult.

The tilted woofer and the slightly off-centre soft dome tweeter blend gracefully and produce a richly detailed and crisp soundstage. The polypropylene cone is more resilient towards humidity than the traditional DALI wood fibre cone material, making the PHANTOM E-60 flexible in regards to placement in covered outdoor areas and bathrooms.

Optionally, the PHANTOM E-60 can be fitted with a square front grill.

Back box
The PHANTOM E-60 can be combined with the optional, well-known DALI backbox, which protects the speaker against moisture, dust and dirt. It keeps the sound quality consistent (symmetrical loading), even if the acoustic environment behind the walls/ceiling is uneven. With the backbox, you avoid rear sound radiation, reducing acoustic leakage from room to room and from floor to floor. The DALI backbox is not included with the PHANTOM E-60, but can be chosen as an optional accessory.

DALI PHANTOM E-60 SPECS
Product series    PHANTOM
Frequency Range (+/-3 dB) [Hz]    52 - 25,000
Sensitivity (2,83 V/1 m) [dB]    88.0
Nominal Impedance [ohms]    8
Maximum SPL [dB]    104
Recommended Amplifier Power [W]    30 - 120
Crossover Frequency [Hz]    3,300
High frequency driver, Quantity    1 x 28 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    1 x 6½"
Low frequency driver, Diaphragm type    Polypropylene Cone
Enclosure type    Open back
Recommended Working Volume    5 - 50 L
Connection Input    Single Wire
Recommended Placement    In-Wall
In-Ceiling
Functions    Focus / Distributed
Normal / HF + Tilt
Dimensions (ØxD) [mm]    258 x 99
Cut-Out Dimensions (ØxD) [mm]    Ø225
Accessories Included    Cut-Out Template
Logo Badge
Manual
Optional Accessories    Square Grille
Weight [kg]    1.92
Recommended Volume [litre]    5 - 50
