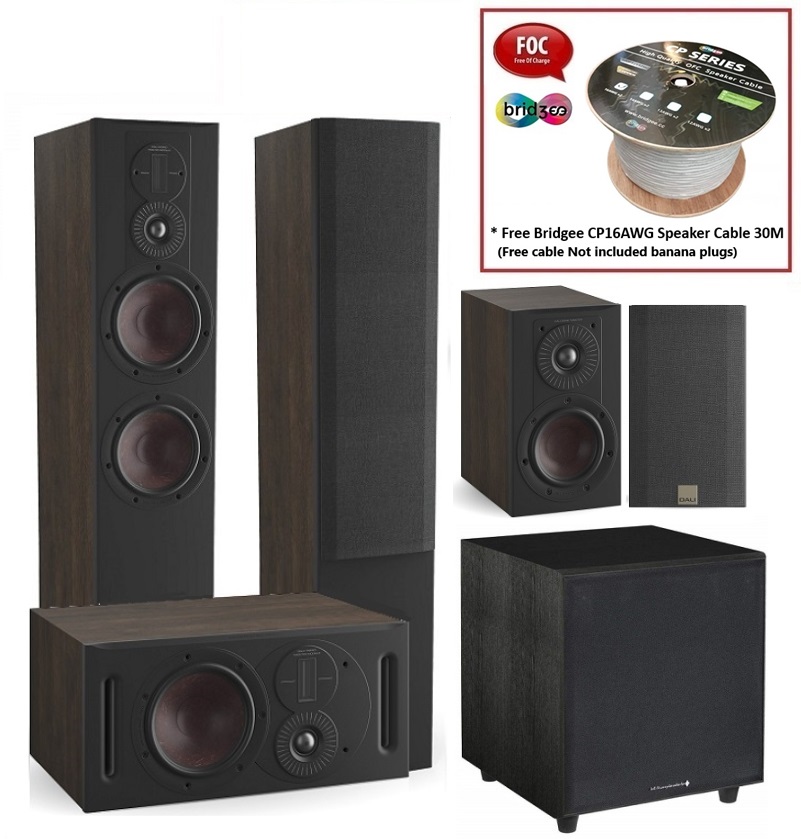

Dali Opticon 6 MK2+Opticon 1 MK2+Opticon Vokal MK2+Wharfedale Diamond SW-150 Speaker Package

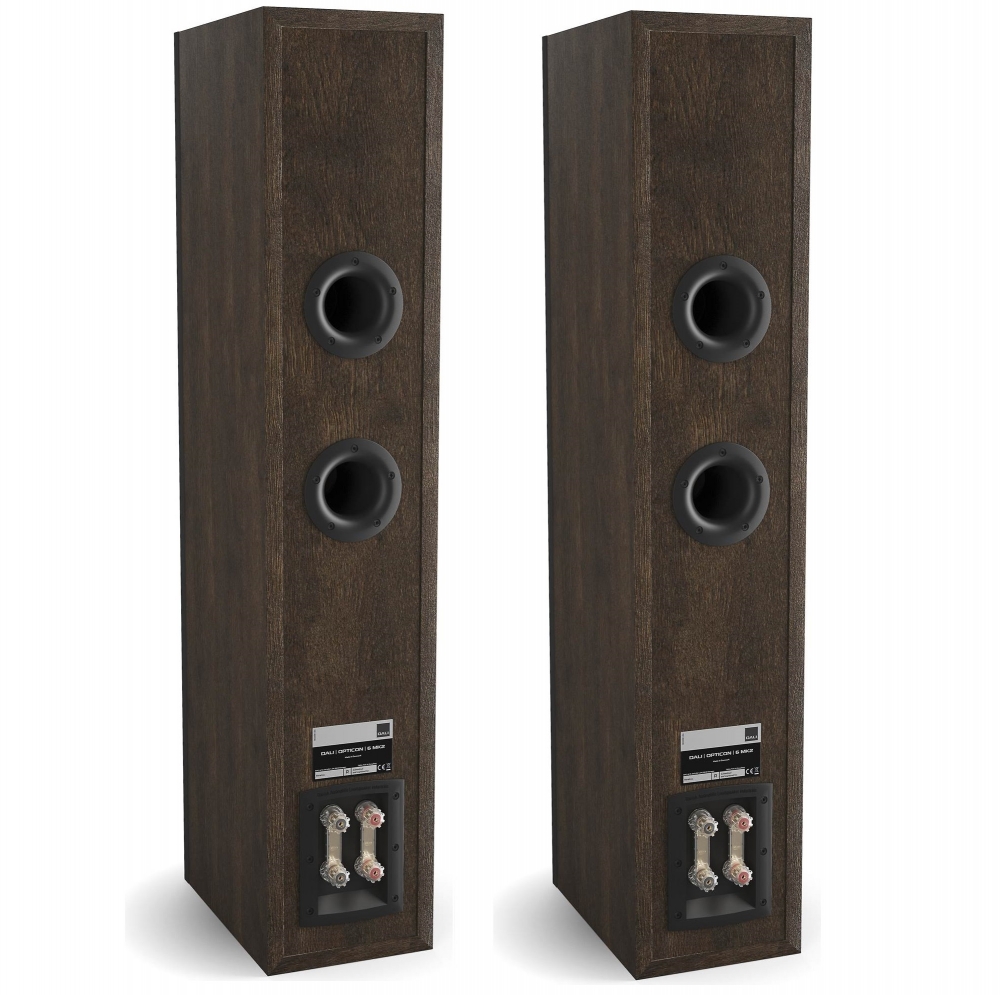

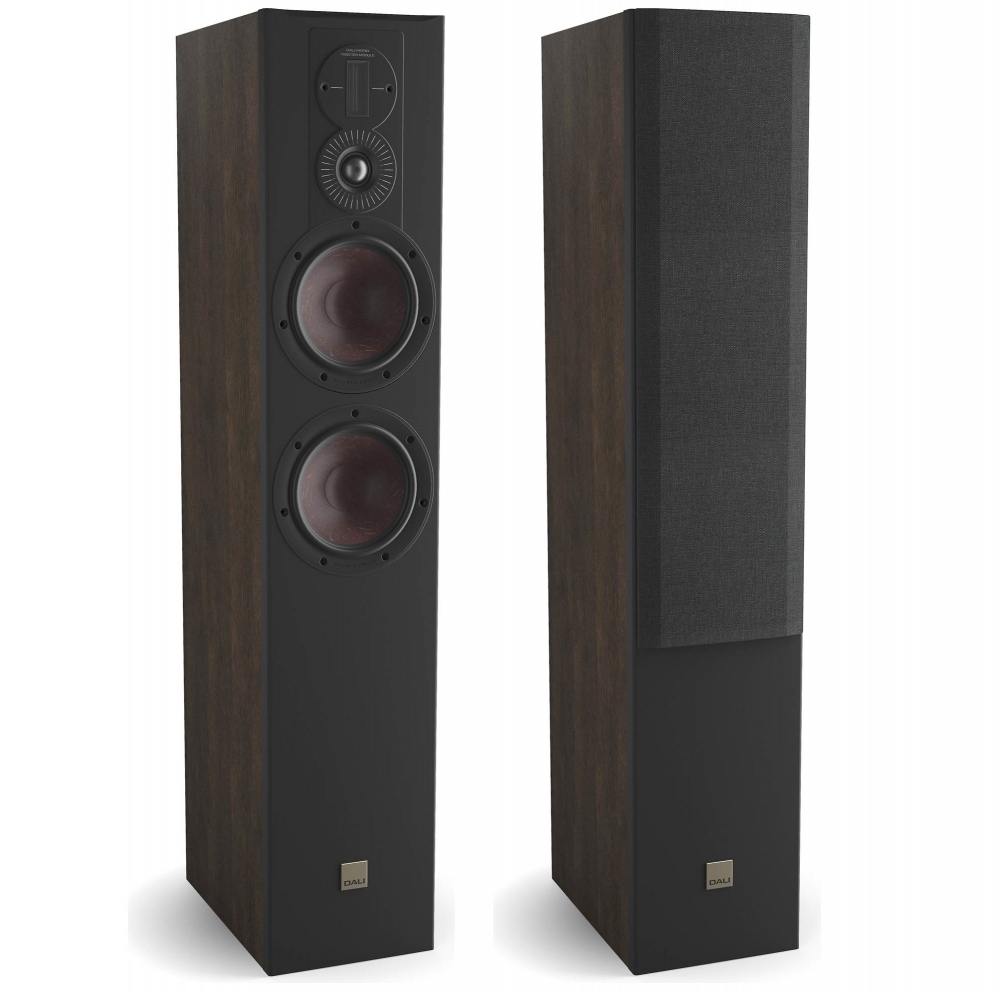

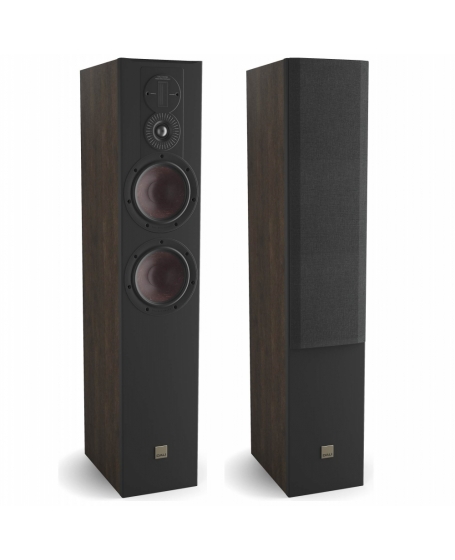

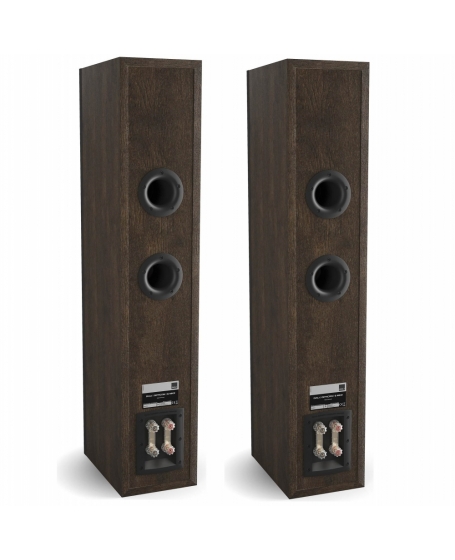

DALI OPTICON 6 MK2

The internal volume of the floorstanding OPTICON 6 MK2 achieves a significant low frequency extension and bass volume level. It combines that bass performance with brilliant, midrange clarity and the sparkling high frequencies that are characteristic of the DALI hybrid tweeter.

PRODUCT DETAILS

The slim, floor-standing OPTICON 6 MK2 is the entry point in the OPTICON MK2 series for the renowned DALI hybrid soft dome and ribbon tweeter.

The OPTICON 6 MK2 offers a level of performance unavailable from any other OPTICON model. It combines immense low frequency bandwidth, volume potential and dynamic accuracy with the extraordinary detail and clarity that arises from the use of a dedicated midrange driver. High frequencies from the hybrid tweeter are explicitly detailed and informative yet simultaneously smooth and endlessly listenable.

The OPTICON 6 MK2 offers an extended low frequency profile that suits installation in large listening spaces with more distant room boundaries.

The manufacture of the OPTICON MK2 remains fully Danish - as with the MK1 series. Built at our factory in Denmark; from components produced in-house or sourced from the best specialist manufacturers locally and further afield.

The OPTICON 6 MK2 is available in Tobacco Oak.

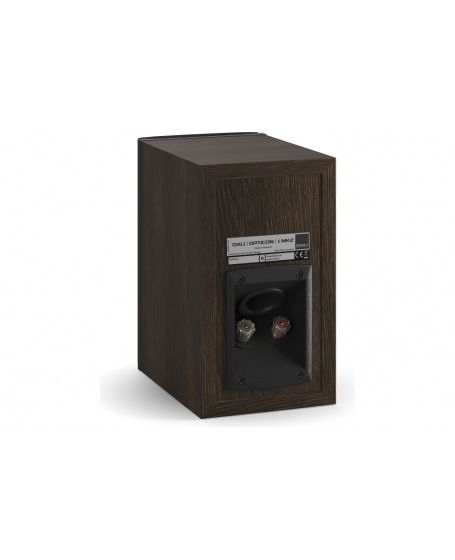

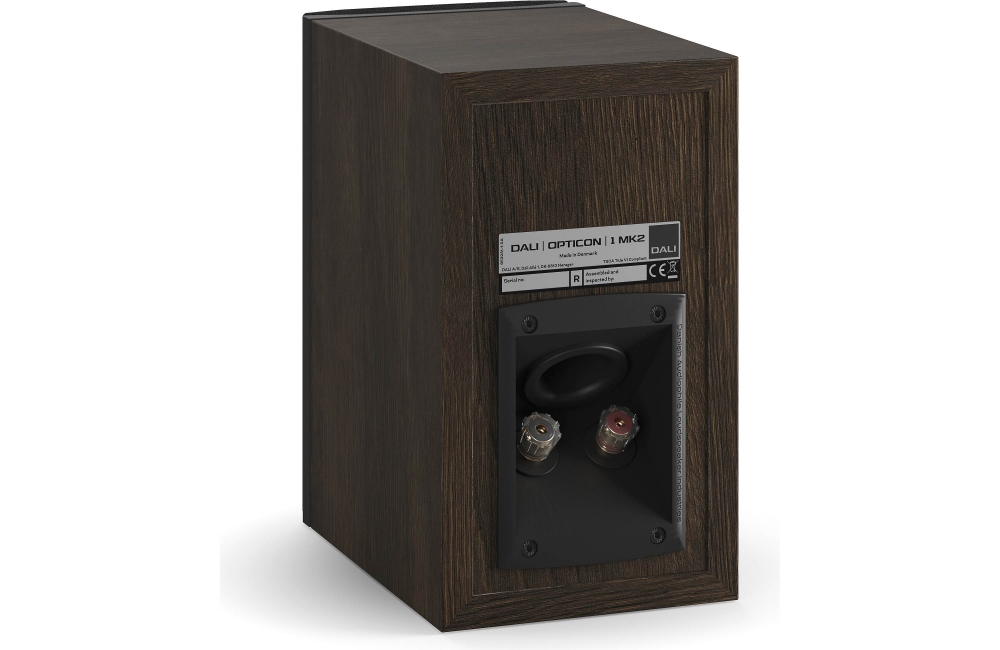

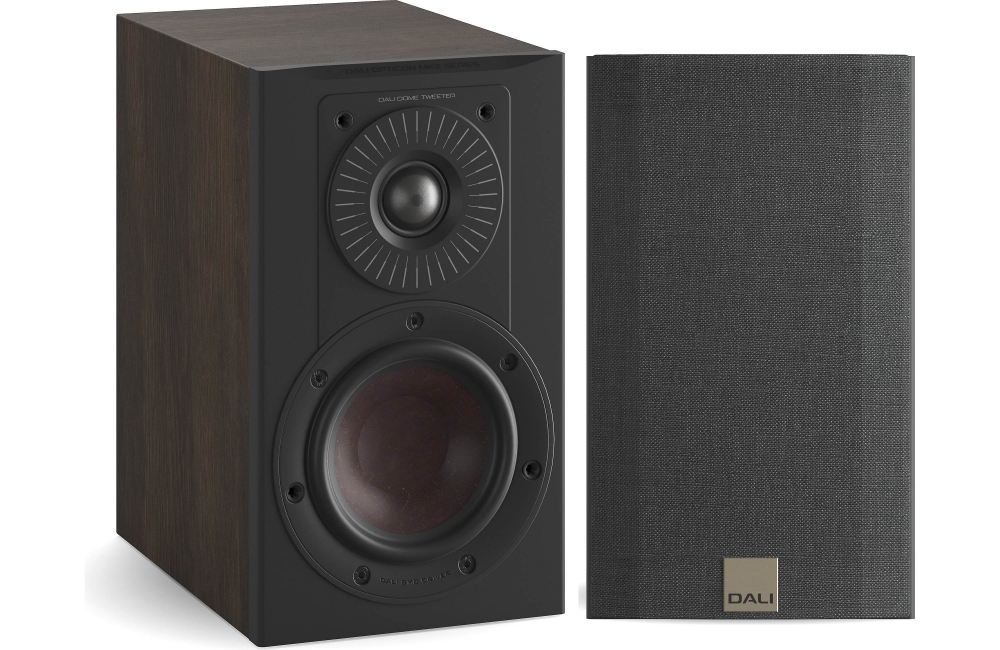

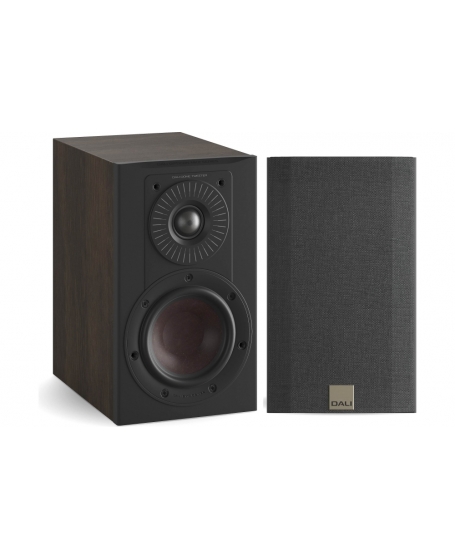

DALI OPTICON 1 MK2

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries, while the Dual Flare reflex loaded enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers.

PRODUCT DETAILS

The compact OPTICON 1 MK2 speaker is a true 2-way compact performer holding a 4¾" wood fibre woofer matched with a new large 29 mm soft dome tweeter derived from the CALLISTO series.

The OPTICON 1 MK2 offers a level of performance unavailable from any other OPTICON model. The stand mount speaker is a natural distributor of high performance audio in compact to medium sized listening spaces where it has room to breathe and deliver its dynamic and explicitly defined performance.

The manufacturing of the compact speaker remains fully Danish - as with the MK1 series. Fully assembled at our factory in Denmark - from components produced in-house or sourced from the best local specialist manufacturers and further afield.

The OPTICON 1 MK2 is available in Tobacco Oak.

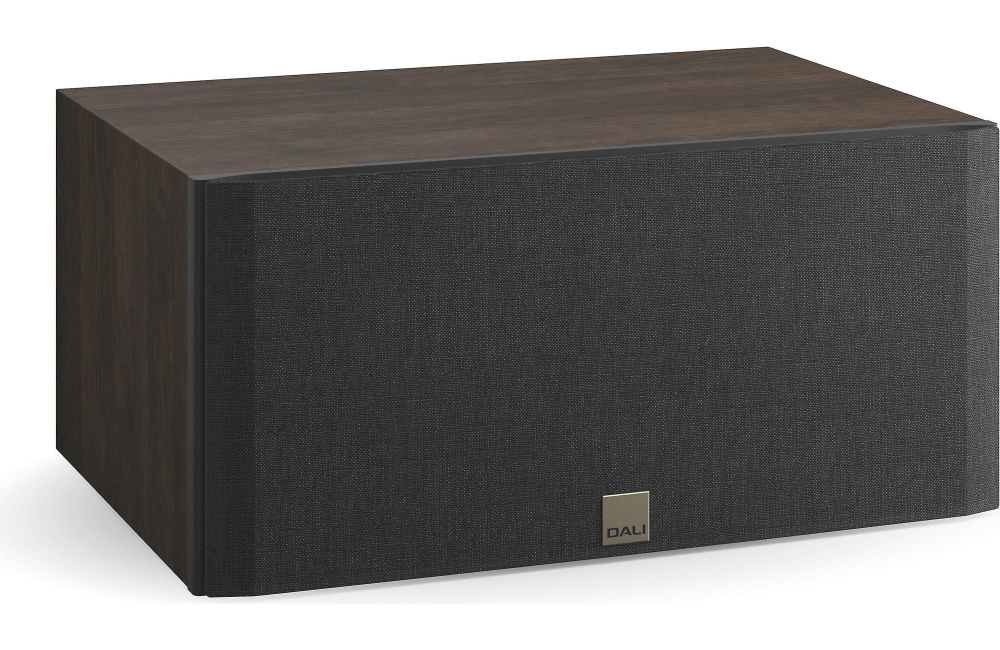

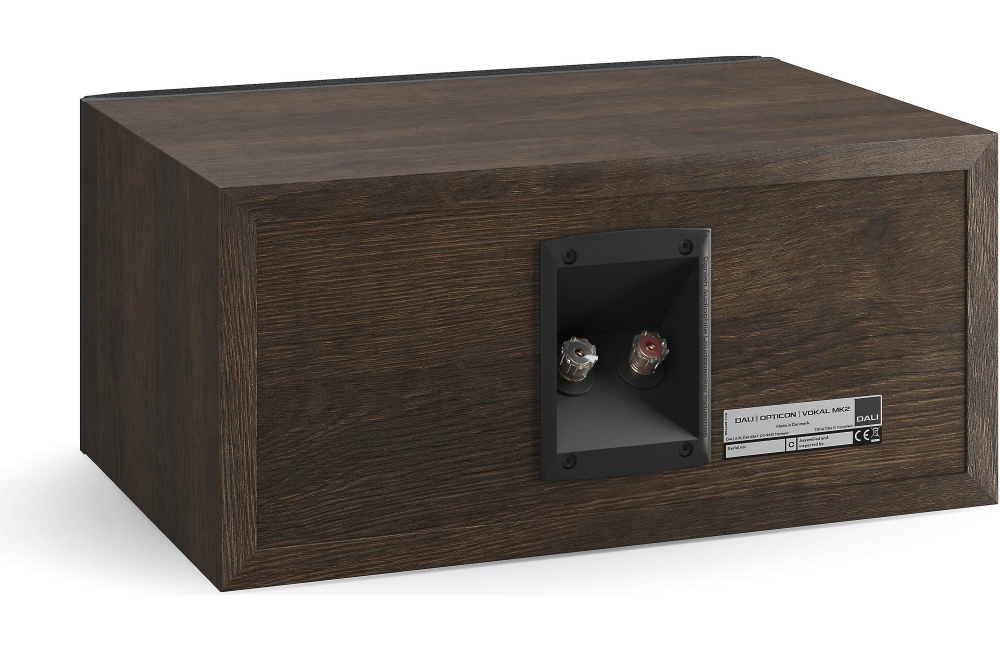

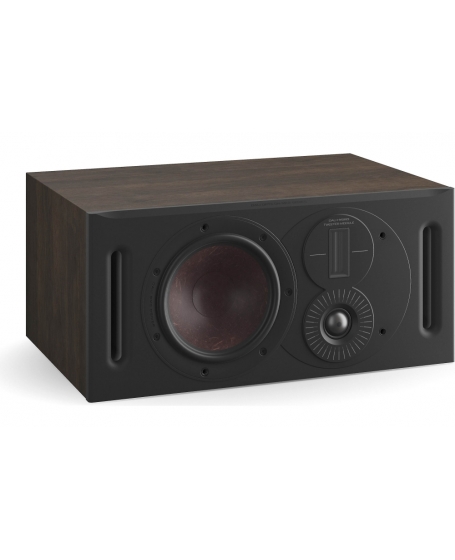

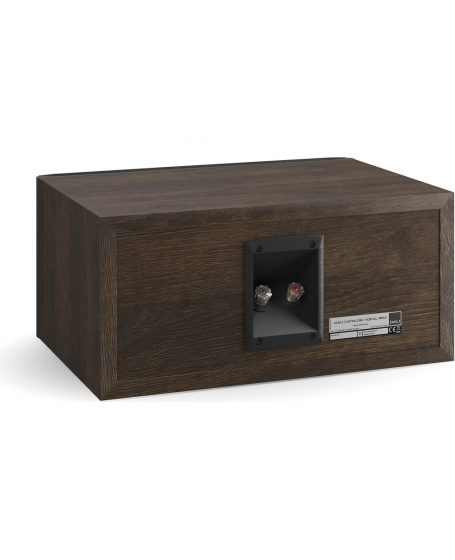

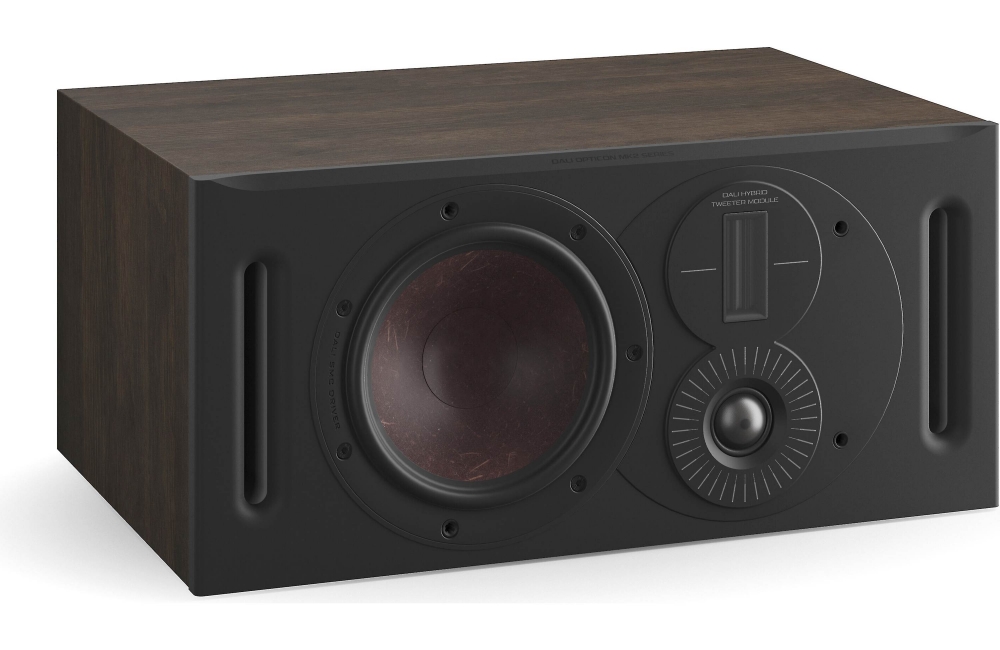

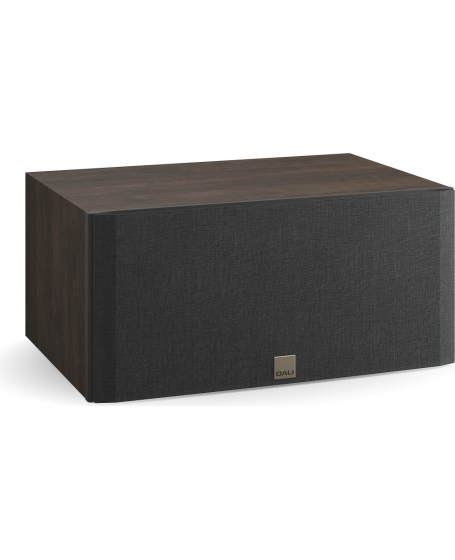

DALI OPTICON VOKAL MK2

The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.

PRODUCT DETAILS

The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.

The centre channel offers a level of performance unavailable from any other OPTICON model. It combines immense low frequency bandwidth, volume potential and dynamic accuracy with the extraordinary detail and clarity that arises from the use of a dedicated midrange driver. High frequencies from the hybrid tweeter are explicitly detailed and informative yet simultaneously smooth and endlessly listenable.

The enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible.

This makes it perfect for placement up against a wall underneath the TV or projector screen or even hidden away in a HiFi furniture when not in use, which it also has been specifically designed for - a nice feature for aesthetically minded home theatre owners.

The OPTICON VOKAL MK2 is the perfect partner for any speaker in the OPTICON MK2 series, with the same level of detail and coherence – but also powerful enough to be used even with the OPTICON 8 MK2.

The manufacture of the entire series remains fully Danish - as with the MK1 series. Built at our factory in Denmark; from components produced in-house or sourced from the best specialist manufacturers locally and further afield.

The VOKAL MK2 is available in Tobacco Oak.

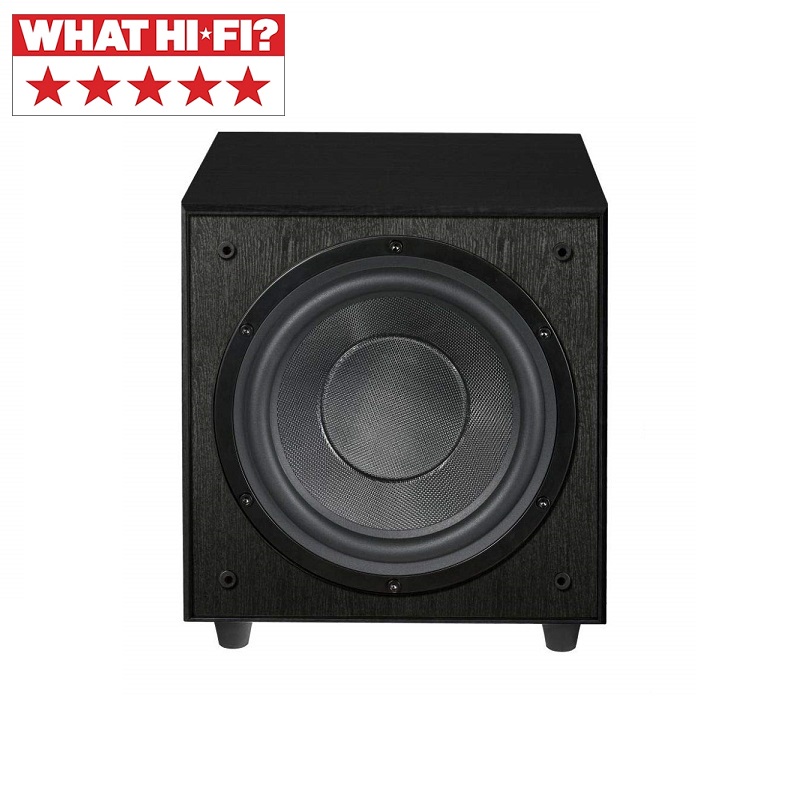

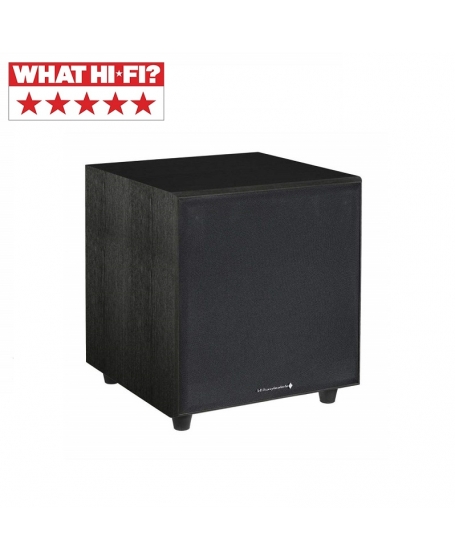

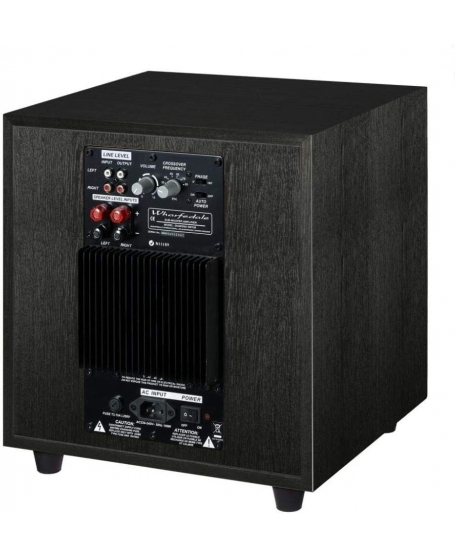

SW-150

The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model. They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality. This is possible only through the use of some space-age materials and cutting-edge technology in our drive units.

Solid, well-engineered power amplifiers, dedicated to the production of low-frequency energy are used across the range. Power is targeted specifically at the most important section of the bass spectrum, with very little loss and a controlled roll-off allowing for superb integration with all hi-fi and home cinema systems. The filter section controls the integration with your main speakers and ensures the transition is seamless. Designed using six discrete circuits, signal purity is regarded as paramount. Each circuit has a different crossover frequency (35Hz to 85Hz in 10Hz steps). The filter is 12dB/octave on the SW-150 and 24dB/octave on the larger models. In each model, it is possible to switch off all filters and allow the AV processor to control the effective frequency range of the subwoofer. This is preferable in high-end systems.

Finally, the Tri-lam cone is revolutionary in terms of technology and performance. Detailed elsewhere in this brochure, it is one of the most advanced cones ever seen in a moving-coil loudspeaker, coupled with an elongated voice coil with a maximum excursion of 24mm.

DALI OPTICON 6 MK2 SPECS
Product series    OPTICON MK2
Frequency Range (+/-3 dB) [Hz]    49 - 30,000
Sensitivity (2,83 V/1 m) [dB]    88.0
Nominal Impedance [ohms]    4
Maximum SPL [dB]    110
Recommended Amplifier Power [W]    25 - 200
Crossover Frequency [Hz]    800 / 2,200 / 14,000
Crossover Principle    2½ + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity    1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type    Ribbon
Hybrid tweeter module, High frequency driver, Quantity    1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type    Soft Textile Dome
Midrange driver, Quantity    2 x 6 1/2"
Midrange driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    43.5
Connection Input    Bi-Wiring
Bi-Amping (INT)
Magnetic Shielding    No
Recommended Placement    Floor
Recommended Distance From Wall [cm]    20 - 100
Dimensions With Base (HxWxD) [mm]    1001 x 195 x 330
Accessories Included    Assembly Tools
Manual
Rubber Bumpers
Spikes M8
Weight [kg]    19.3

DALI OPTICON 1 SPECS
Product series    OPTICON MK2
Frequency Range (+/-3 dB) [Hz]    62 - 26,500
Sensitivity (2,83 V/1 m) [dB]    86.0
Nominal Impedance [ohms]    4
Maximum SPL [dB]    105
Recommended Amplifier Power [W]    25 - 100
Crossover Frequency [Hz]    2,000
Crossover Principle    2-way
High frequency driver, Quantity    1 x 29 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Midrange driver, Quantity    1 x 4 3/4"
Midrange driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    61.5
Connection Input    Single Wire
Magnetic Shielding    No
Recommended Placement    On-Wall
Shelf or stand
Recommended Distance From Wall [cm]    2 - 80
Dimensions With Base (HxWxD) [mm]    261 x 152 x 231
Accessories Included    Manual
Rubber Bumpers
Wall Bracket
Weight [kg]    4.5

DALI OPTICON VOKAL SPECS
Product series    OPTICON MK2
Frequency Range (+/-3 dB) [Hz]    47 - 30,000
Sensitivity (2,83 V/1 m) [dB]    88
Nominal Impedance [ohms]    4
Maximum SPL [dB]    109
Recommended Amplifier Power [W]    30 - 150
Crossover Frequency [Hz]    2,400 / 14,000
Crossover Principle    2 + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity    1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type    Ribbon
Hybrid tweeter module, High frequency driver, Quantity    1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type    Soft Textile Dome
Midrange driver, Quantity    1 x 6 1/2"
Midrange driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    44
Connection Input    Single Wire
Magnetic Shielding    No
Recommended Placement    Shelf or stand
Centre / Soundbar
Recommended Distance From Wall [cm]    0 - 30
Dimensions With Base (HxWxD) [mm]    201 x 435 x 312
Accessories Included    Manual
Rubber Feet
Weight [kg]    9.2

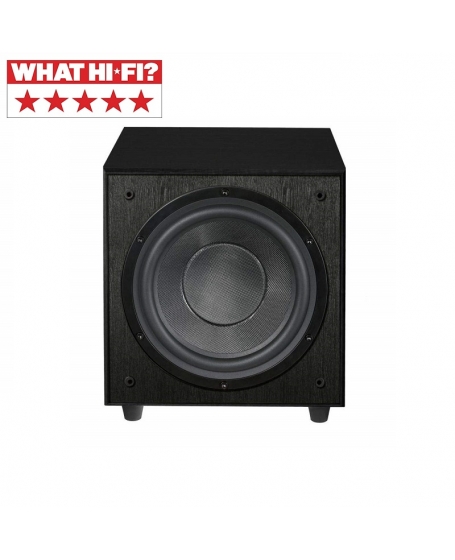

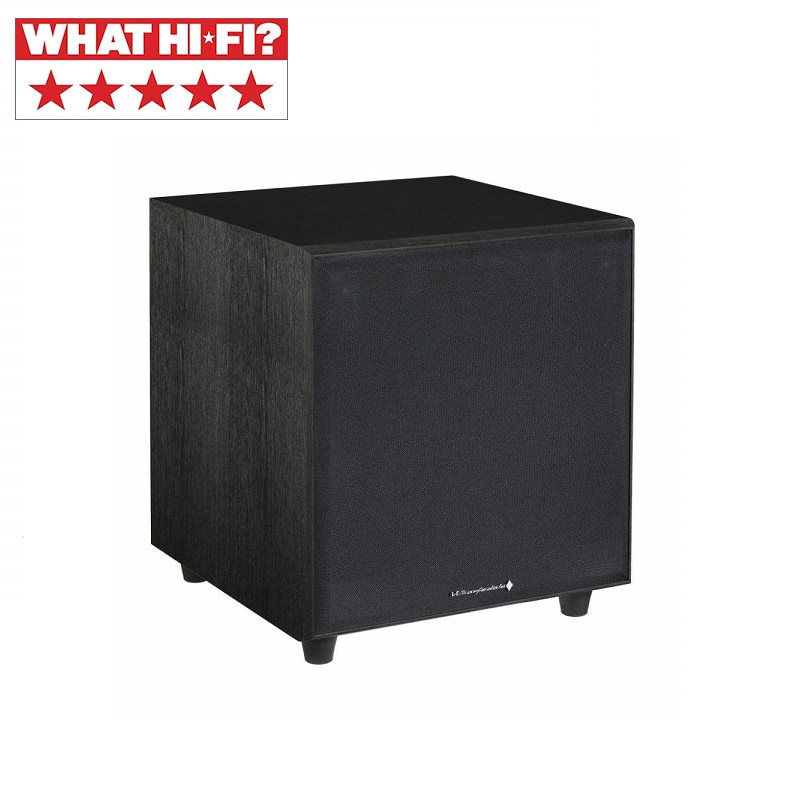

Wharfedale Diamond SW-150
Bass Driver    250mm (10”)
Amplifier Power    150W RMS
Input impedance    10kΩ
Frequency Response    35Hz to 110Hz
Maximum SPL (Ref: 1M)    107dB
Low Pass filter range    35–85Hz (10Hz steps)
Size including feet    330 x 330 x 370 (mm)(H x W x D)

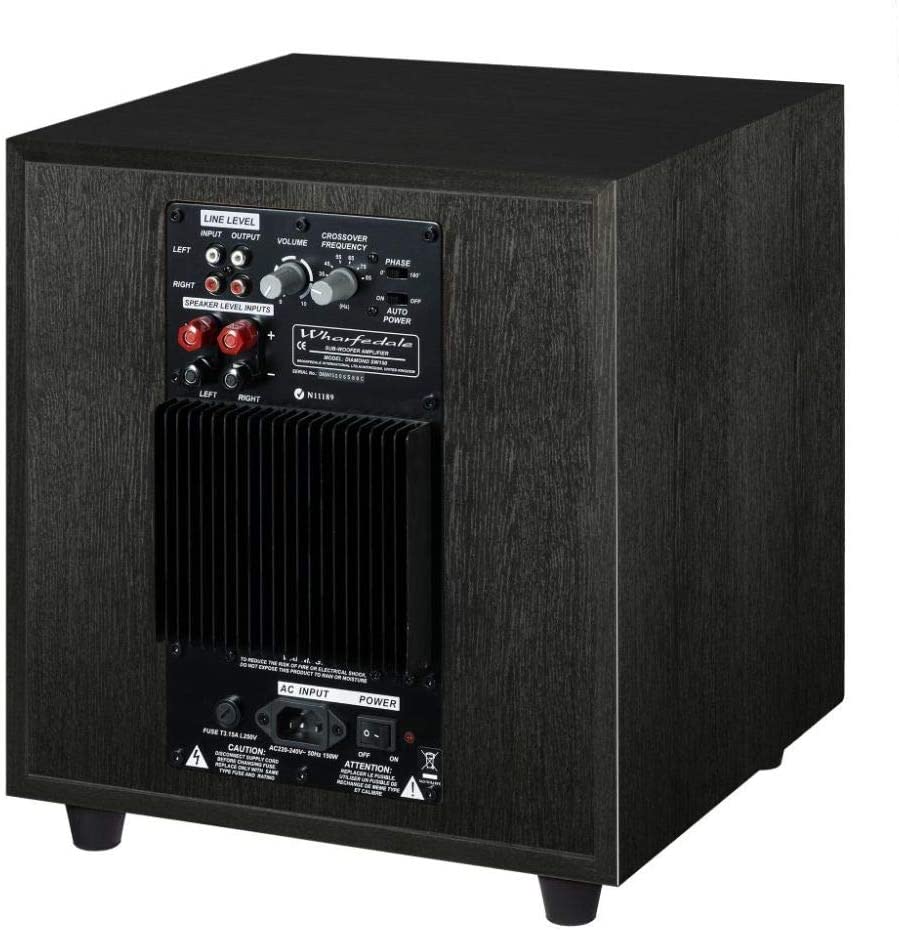

Features
0-180º phase switch
Line and high level inputs
Reflex ported
