CWM663

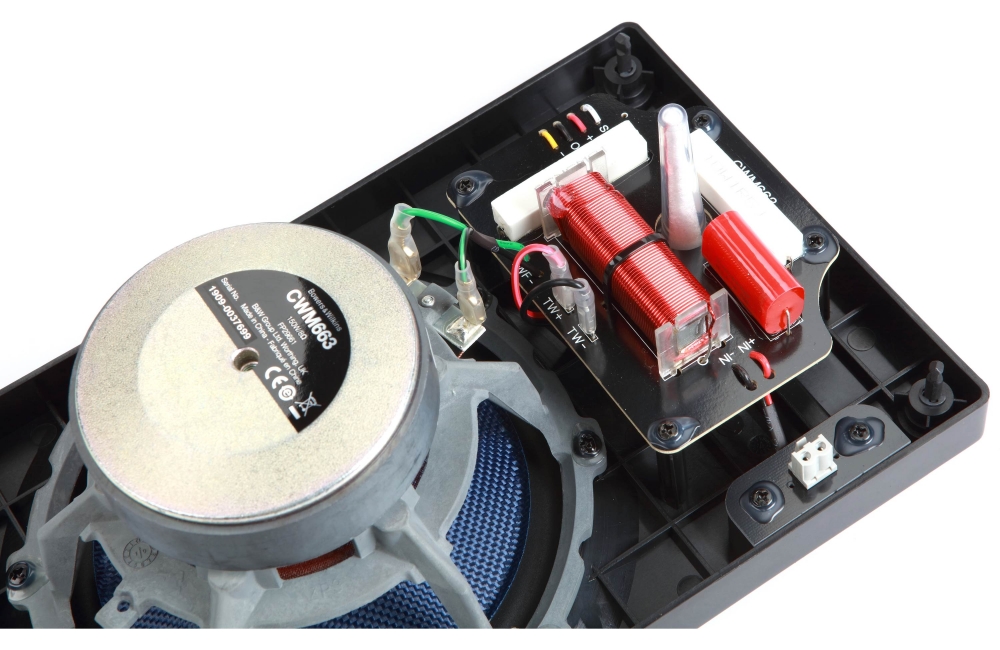

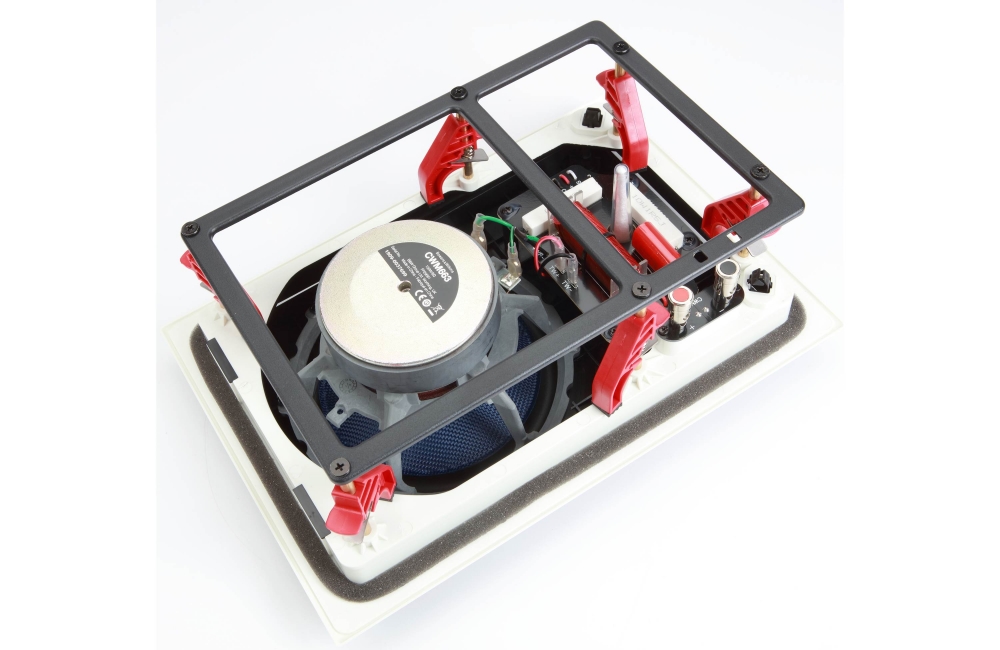

The CWM663 features a blue Aramid fiber bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilises a three-position high frequency switch to fine tune the sound. The speaker is incredibly easy to install incorporating QuickDogs™ and plug-and-play functionality.

Description : 2-way in-wall system
Drive units : 1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter
                    1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB) : 45Hz – 50kHz
Maximum Amp Power : 25 – 150w
Sensitivity SPL (2.83V, 1m) : 88dB
Impedance Nominal (min) : 8Ω (4.5Ω)
Frame height : 315mm (12.4in
Frame width : 221mm (8.7in)
Cut-out height : 279mm (11in)
Cut-out width : 183mm (7.2in)
Depth behind surface : 95mm (3.7in)
Protrusion : 4mm (0.2in)
Pre-mount Kit : PMK W6
Back Box : BB 6W
