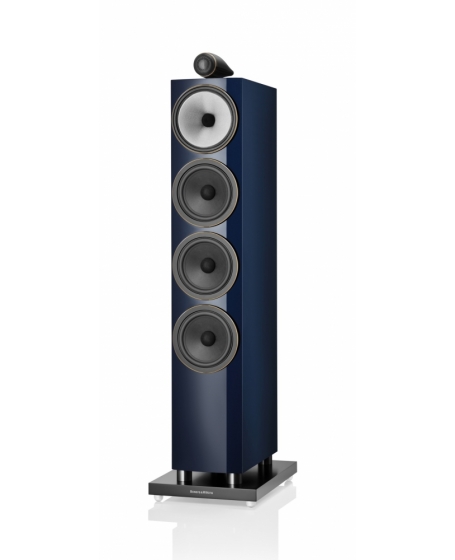

702 S3 Signature

The 702 S3 Signature takes our state-of-the-art flagship 700 Series tower loudspeaker and evolves it to deliver unparalleled levels of performance.

Crafted. Honed. Perfected.

Engineered for pristine studio-quality sound at home, the 702 S3 Signature utilizes upgraded midrange and low-frequency motor systems, improved capacitors, revised speaker terminals, plus a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.

Solid Body Tweeter

The 700 Series Signature models feature the latest generation of Bowers & Wilkins’ iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies.  The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

Carbon Dome Tweeter

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on older generations of tweeter dome technologies, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Biomimetic Suspension

Sometimes, making a big difference takes unconventional thinking. The transition from Bowers & Wilkins’ famous yellow Aramid Fiber midrange cones to their Continuum cone technology resulted in a massive improvement to midrange performance. Now, they’ve turned their attention to another crucial element in a loudspeaker cone: the fabric spider. The new Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Upgraded Crossovers

The new 700 Series Signature models use upgraded crossover designs crafted by Bowers & Wilkins’ expert engineers. Developed using rigorous testing, their engineers carefully optimize these crossovers to perfection, to maximize the loudspeakers’ performance.

Decoupled Midrange Assembly

The 702 S3 Signature features a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeakers’ bass drivers.

Aerofoil™ Profile Bass Cone

Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result is deep and dynamic bass.

Curved Baffle

The new 700 Series Signature models feature a curved front baffle. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.

Size & weight
Technical Details
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
-6dB 28Hz - 33kHz
Frequency response
46Hz - 28kHz ±3dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
30W - 300W into 8Ω on unclipped programme
Sensitivity
90dB
Technical features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
Description
3-way vented-box system
Max recommended cable impedance
0.1Ω

Finishes
Cabinet finishes
Datuk Gloss
Midnight Blue Metallic
Grille finishes
Black
