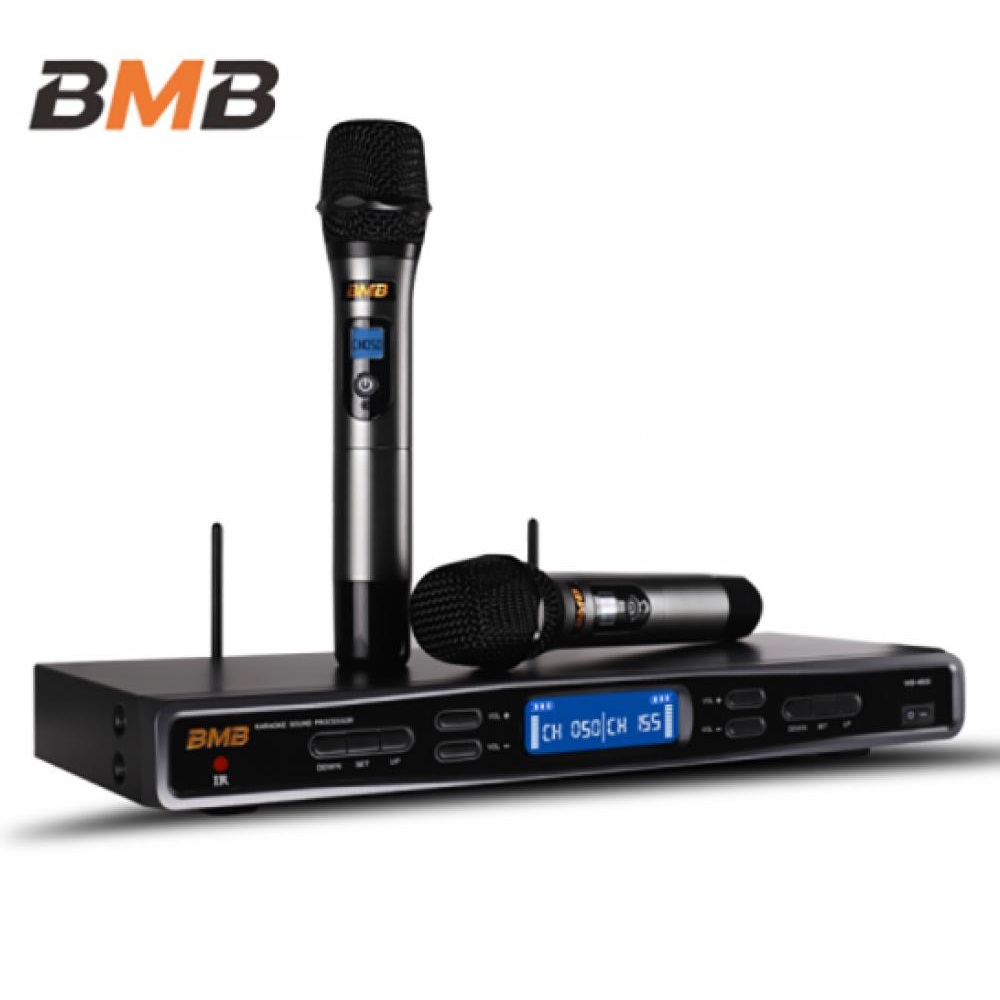

BMB WB-5000S UHF Wireless Microphone System

BMB WB-5000S

UHF Wireless Microphone System

• By adopting a high-performance microchip and suppressing distortion, we realized a unique wireless quality microphone unique to BMB.
• It uses high-quality liquid crystal, it is easy to see in any installation situation.
• When the microphone dropped, The microphone will become mute.
  It will not occur the Large volume Noise, when falling more than 20 cm.
• New function that microphone automatically connect to receiver by shaking microphone. (WB-5000 / WM-500)

SYSTEM
Type    Unidirectional dynamics UHF Wireless microphone system
Frequency Range    640Hz - 690Hz
Channel    200CH
Frequency Response    100Hz - 10Hz
Effective Distance    50m
Frequency Interval    250KHz
Frequency Width    50MHz
Frequency Oscillation Mode    PLL Module locked loop design
Radio Frequency Sensitivity    -90dBm
Total Harmonic Distortion    < 5%
Dynamic Range    >70dB

RECEIVER
SNR    ≥50db
Frequency Stability    ±5KHz
Signal Pick Up    CPU controlled selection & pilot identification
Mute    Mute & Lock Loop Circuit
Disply    LCD
DC Input    12V DC ≥1000mA
Output Impedance    600Ω
Output    2 XLR Balance Socket + Unbalance TRS 6.3mm Socket
Dimensions (mm)    420(W) x 44(H) x 160(D)

MICROPHONE
Frequency Oscillation Mode    PLL module locked loop design
Transmission Method    CPU controlled carried wave & pilot identification
RF Stability    ±5KHz
Display    LCD+color backlit
Capsule    Dynamic
Power Level    Hight & Low
Power Supply    2 Pcs AA Battery
Weight    0.55KG
Dimensions (mm)    50(Φ) x 247(L)
