Audiolab 8300A Integrated Amplifier Free Streamer

SKU: Audiolab 8300A

RM 7,299.00

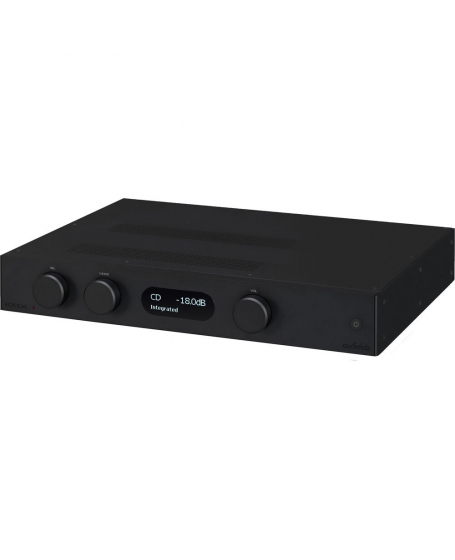

Audiolab 8300A Integrated Amplifier
2-Channel Amplifier Comfiguration
Up to 75W per Channel Output at 8 Ohms
3 Years Warranty

We are authorized distributor for AudioLab in Malaysia and are responsible for the after sales and service of AudioLab products in the country. We will not provide any parts or services for PARALLEL IMPORT AudioLab products that are not imported by us.

* Free Arylic S10 Wireless Multiroom Music Streamer
* Free gift will be packed nicely in the product’s box for shipping option
* 如果需要邮寄，我们将会把赠品放进产品包装内。

Get it with 0% Credit Card Instalment Plan Up to 36 months
1) Maybank Credit Card up to 12 months ( Lazada )
2) Maybank Credit Card up to 18 months ( Shopee )
3) PBB Credit Card up to 12 months ( Shopee )
4) OCBC Credit Card up to 36 months ( SLAV )

Description
Specification

8300A

Integrated Amplifier

Completely redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it’s new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.

Overview

Brilliance evolved

The 8300A’s circuit design delivers all-new sound quality. The soundstage it produces is deeper and broader, with greater space and separation within. Instrument and voices are better deﬁned, their character is vividly portrayed. Dynamic range is greater and frequency response is further extended, with greater bass deﬁnition and treble that is both crisper and sweeter. In short, it delivers an open window on the music being played, as all great HiFi should, engaging the listener with natural, unforced energy that is fully reﬂective of the source material.

Versatile High End Integrated Amplifier

At this ampliﬁer’s heart is a powerful dual-mono ampliﬁer delivering 75W per channel into eight ohms. CFB or ‘Complementary Feedback’ topology oﬀers superior linearity and ensures excellent thermal stability.

ACD or ‘Active Current Drive’ means current limiting is under microprocessor control, programmed to allow the ampliﬁer to supply high currents into complex loads, on par with ampliﬁers that are bigger and more powerful on paper.

8300A Specifications

General description	Integrated Amplifier
Design philosophy and core technology	Dual Mono Power Amp Design
Display	OLED 128x64 pixels 2.7"
Controls	Logarithmic Ladder Volume Design
Finish	Fine Textured Aluminium (Black / Silver)
Standby Features	Yes
12V Trigger	Yes
Phono	Yes (MM/MC)
Balanced XLR Input	Yes
Pre-amplifier Section
Inputs	CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & Phono
Outputs	2 x RCA
Input sensitivity (Phono RIAA)	50K // 100pF
Input impedance (line inputs)	50K // 100pF
Input impedance (phono inputs)	47K // 100pF (MM), 100R // 1.5nF (MC)
Output voltage	2.3V max. (< 0.02% THD)
Output impedance	120Ω
Frequency response (Line)	+/- 0.1dB (10Hz - 20kHz)
	+/- 3.0dB (1Hz - 100kHz)
Frequency response (Phono RIAA)	+/- 1.0dB (20Hz - 20kHz)
Channel Imbalance	< 0.2dB (10Hz - 20kHz)
Total harmonic distortion (THD) Line	<0.001%
Total harmonic distortion (THD) Phono	<0.002%
Signal-to-noise ratio (Line)	> 107dB
	>109dB(A-weighted)
Signal-to-noise ratio Phono (MM)	> 73dB
	> 78dB(A-weighted)
Signal-to-noise ratio Phono (MC)	> 68dB
	> 73dB(A-weighted)
Crosstalk	< 80dB (L-> R & R->L @10kHz)
Power amplifier Section
Gain	29dB (20Hz-20kHz)
Input Sensitivity	840mV (Power Out = 70W into 8Ω)
Input impedance	15K // 100pF
Rated max power output THD < 1%	2 x 75W RMS (8Ω) , 2 x 115W (4Ω)
	(Vmains = 230V , THD < 1%)
Peak output current	+/- 15A
Frequency response	+/- 0.1dB (10Hz – 20kHz)
	+/- 3.0dB (1Hz – 100kHz)
Channel Imbalance	< 0.2dB (10Hz – 20kHz)
Total harmonic distortion (THD)	<0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz)
Signal-to-noise ratio	> 107dB (BW = 20 – 20kHz )
	>109dB(A-weighted BW = 20 – 20kHz)
Damping factor	>100 (8Ω Load @ 1kHz)
Inputs	1 x RCA
Outputs	Speaker Binding Post Terminals
Dimensions	80 x 444 x 330.3mm
Net weight	7.8kg
