Audio Technica AT-LP70XBT

Fully Automatic Wireless Belt-Drive Turntable

The AT-LP70XBT Automatic Wireless Turntable is the perfect beginner turntable for those beginning their audiophile journey. Combining the experience of warm, analog audio with the convenience of Bluetooth® technology, you can listen to your vinyl over Bluetooth-enabled speakers, headphones, or other devices, including those that support the high-quality Qualcomm® aptX™ Adaptive audio codec. This user-friendly turntable plays both 33-1/3 and 45 RPM records and, in addition to its Bluetooth wireless technology, has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.

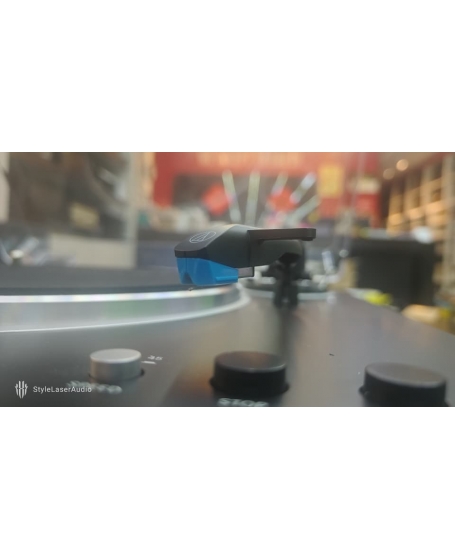

At the heart of the AT-LP70XBT is a top-notch phono cartridge for unmatched, high-fidelity audio. Built with Audio-Technica’s industry-leading phono cartridge expertise, the AT-VM95C is a versatile, superior-performance cartridge that other turntables in this class simply can’t match. Integrated into the J-shaped tonearm, the AT-VM95C cartridge with a 0.6 mil conical stylus offers excellent channel separation and low distortion for outstanding tonal quality. To further personalize vinyl listening, the stylus can also be easily upgraded with any other styli (elliptical, micro linear, or Shibata) in our VM95 Series, offering unprecedented customization for a turntable in this category.

To ensure peak sound performance, the AT-LP70XBT includes a three-piece, anti-resonance chassis that provides a solid foundation to dampen unwanted noise for improved sound quality. The included AC adapter further reduces noise as the AC/DC conversion is moved to the outside of the chassis to limit any unfavorable noise.

Turntable
Motor    DC motor
Drive Method    Belt-drive
Speeds    33-1/3 RPM, 45 RPM
Turntable Platter    Die-cast aluminium
Wow and Flutter    < 0.25% (WTD)
Signal-to-Noise Ratio    > 55 dB
Cartridge Type    This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed.
Output Level    PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain    36 dB nominal, RIAA equalized
Power Consumption    1.6 W
Dimensions    400 mm (16") × 330 mm (13") × 110 mm (4.3") (W × D × H)
Weight    Approx. 2.9 kg (6.4 lbs)
AC Adapter    *Type: FJ-SW1261200500DN
Rated Input Voltage: 100 to 240 V AC
Rated Input Current: 0.4 A max.
Rated Frequency: 50 Hz / 60 Hz
Rated Output Voltage: 12 V DC
Rated Secondary Current: 0.5 A
Cable Length: Approx. 1.5m (4.9')
Effective Arm Length    220 mm (8.7")
Overhang    18 mm (0.71")
Tracking Error Angle    Less than 2.0°
Replacement Stylus    AT-VMN95C (sold separately)
Replacement Belt    AT-LP70X exclusive belt (sold separately)
Communication System    Bluetooth version 5.2
Frequency Band    2.402 GHz to 2.480 GHz
Maximum RF Output    2.5 mW EIRP
Maximum Communication Range    Line of sight - approx. 10 m (33')
Modulation Method    GFSK, Pi/4DQPSK, 8DPSK
Compatible Bluetooth Profile    A2DP
Support Codec    Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
